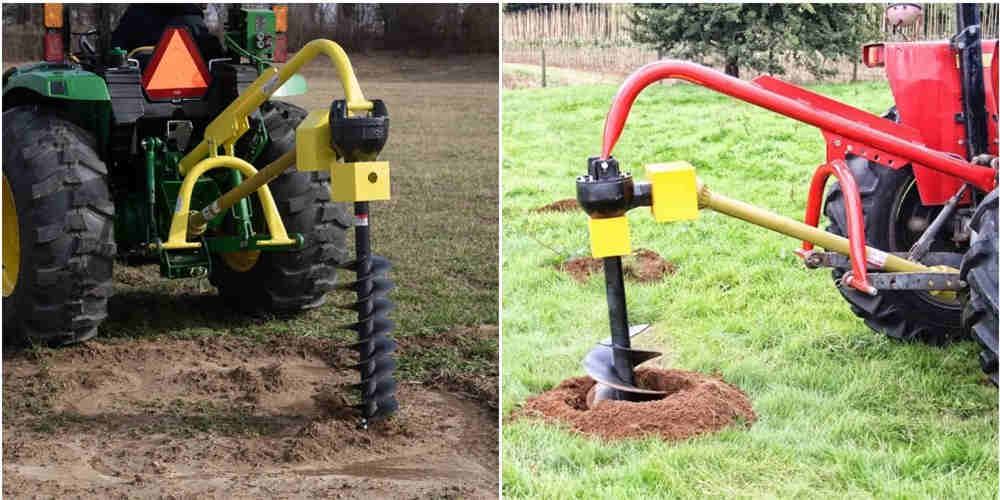

12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger
  • 12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger

12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger

12-inch three-point tractor column hole excavator column hole augerThe 12-inch post-drilling auger is a tool designed to quickly and effectively dig holes with a diameter of 12 inches. It is usually used for fencing and bridge posts, planting trees or shrubs, installing road signs or any other proje......
12-inch three-point tractor column hole excavator column hole auger The 12-inch post-drilling auger is a tool designed to quickly and effectively dig holes with a diameter of 12 inches. It is usually used for fencing and bridge posts, planting trees or shrubs, installing road signs or any other projects that require deep holes in the ground. It can be connected to an electric drill or an electric auger, and the user can control the drilling depth by adjusting the length of the auger bit. The 12-inch post-drilling auger is a powerful tool. Compared with manual drilling, it can save a lot of time and energy.
12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger
12-inch column hole auger specification

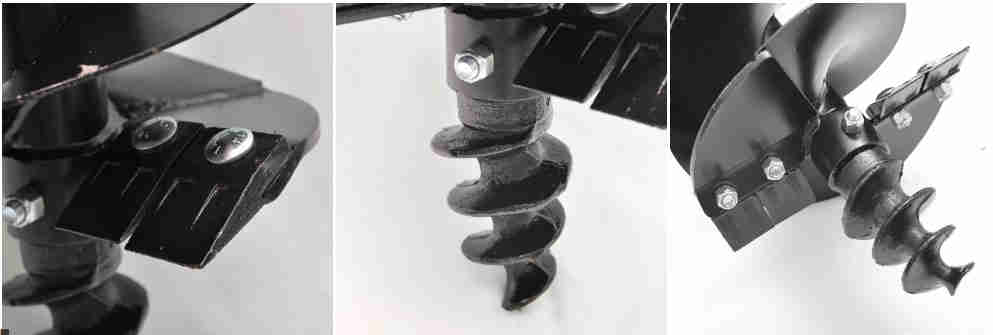

It is mainly used for three-point pillar excavators and slide-guided excavators like ours This rear hole auger has a specially thick blade and additional welding between the blade and the shaft. There is a strengthened collar at the place where it connects with the excavator output shaft, and it weighs about 10 pounds more than the standard counterpart. Diameter: 12“ Height: 48“ Flange thickness: 5/32 Suitable: All excavators have a 2-inch output shaft on the gearbox. This is the standard configuration of most manufacturers, such as Work Saver, Speedo, King Kutter, and our excavator The standard spacing between the stud auger and the bolts on the gearbox is 2 "(90 degrees away from each other). Replaceable standard cutting edge.
Auger Diameter
Duty & Length
Weight
SKU
6"
Compact - 36"
21
23-033
9"
Compact - 36"
32
23-035
12"
Compact - 36"
43
23-037
6"
Standard - 48"
23
23-032
9"
Standard - 48"
34
23-034
12"
Standard - 48"
49
23-036
6"
Heavy - 48"
31
23-040
9"
Heavy - 48"
42
23-041
12"
Heavy - 48"
60
23-042
18"
Heavy - 48"
99
23-043
24"
Heavy - 48"
125
23-044

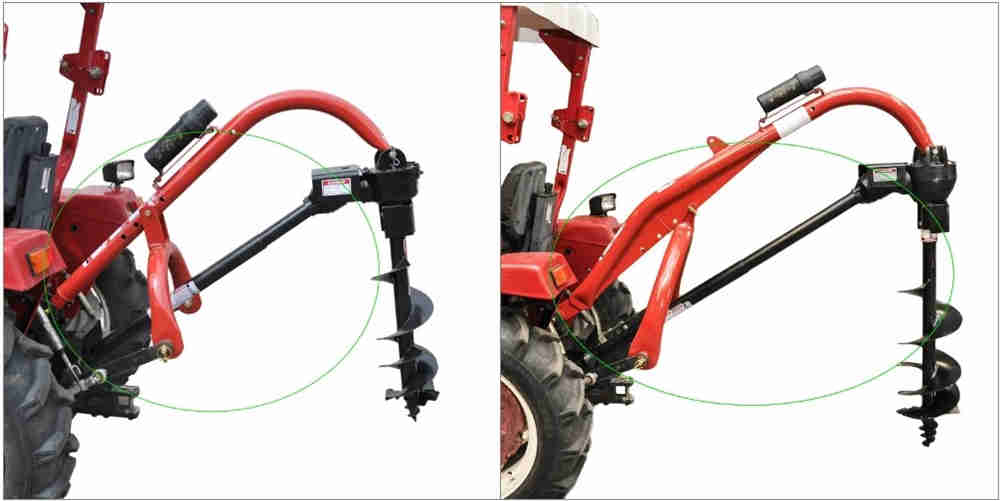

Post Hole Auger for 3 Point Post Hole Diggers
12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger

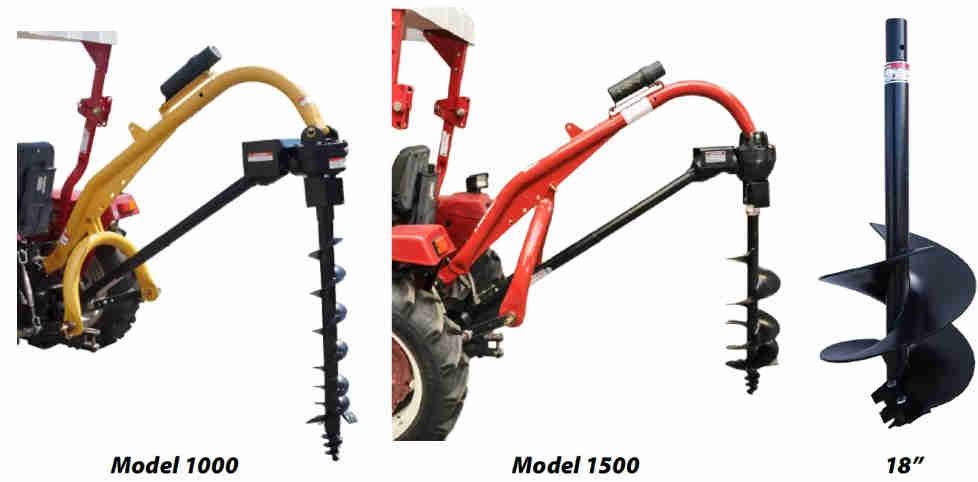

Model
Model 400 Compact
Model 650 Standard Duty
Model 1000 Heavy Duty
Model 1500 Extra Heavy Duty
SKU
24-0361
24-0362
24-0318
24-0337
Category
0 & 1
1
1
1 & 2
Boom Length
56"
60"
72"
72"
Tubing Diameter
2-7/8"
2-7/8"
2-7/8"
3-1/4"
Draw Pin Width
20"
27"
27"
32-1/2"
Drive ine
Series 1
Series 1
Series 4
Series 4
Gearbox
2.9:1
2.9:1
2.9:1
3.18:1
Auger Diameters
6", 9", 12" (3' ength)
6", 9", 12"
6", 9", 12", 18", 24"
6", 9", 12", 18", 24"
Weight
150 bs
160 bs
200 bs
235 bs
SKU
24-0361
24-0362
24-0318
24-0337
Features
4 Positions
3 Positions
4 Positions
4 Positions
Characteristics of 12-inch heavy-duty hole rear auger The 12-inch heavy-duty pile hole auger is a tool mainly used for drilling in severe soil conditions. Its main features include: Diameter: The diameter of the pile hole auger blade is 12 inches, which is suitable for digging larger holes to accommodate solid piles for fences, signs or other construction purposes. Material: The heavy-duty post-drilling auger is usually made of high-quality steel, and its strength is sufficient to withstand the pressure of drilling in hard soil or rock. Design: The post-drilling spiral drill consists of a long cylindrical shaft with a sharp cutting blade at the bottom. It also has a set of solid handles for easy operation and balance. Durability: The 12-inch column hole auger has a solid structure and durable performance, and can withstand a large number of use under harsh conditions. Compatibility: These 12-inch backhole augers are compatible with a range of power supplies, such as manual, electric or pneumatic drills, to ensure versatility in various working environments. Efficiency: These 12-inch post-drilling augers are designed to achieve the best performance and speed, and drill holes quickly and easily with the minimum effort of users. Safety: The 12-inch heavy cylindrical auger is equipped with safety functions, such as a protective cover to prevent debris from flying out during operation, and a safety locking mechanism to prevent accidental contact with the blade.
12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger
How to dig a column hole with a 12-inch column hole auger?
Pile excavation is an important part of the construction of fences, decks and other structures. Using a 12-inch column hole auger can make this work easier and faster. Here are the steps to follow: How to dig column hole with 12-inch column hole auger 1. Select the right size auger: since you already have a 12-inch column hole auger, please make sure it meets your requirements. 2. Mark position: after selecting the hole position, use a tape measure to mark the point. Use a ruler or chalk line to help you guide the position of the auger after drilling. 3. Preparation area: before excavation, remove all debris, rocks and plants in the area to avoid blocking or stopping the auger after the hole during excavation. 4. Positioning the auger: Place the auger over the hole and center it. Make sure the auger teeth behind the hole are horizontal and the auger head is vertical to the ground. 5. Start the auger: start the engine and move the throttle to the working speed. Then, slowly push the pile hole auger into the ground. 6. Hole digging: let the auger pass through the soil after drilling. This will help if you continue to dig until you reach the required depth. The 12-inch auger can dig up to 4 feet deep. 7. Remove debris: remove the auger after pulling out the hole and take it out of the hole. Use a shovel to remove debris or dirt from the hole. 8. Insert the prop: After cleaning, insert the prop into the hole to avoid damaging the bottom end of the screw drill for the prop hole. 9. Fix the column: add concrete around the column, that is, a mixture of soil and gravel, to firmly fix it in place. 10. Fill the hole: build a small mound or peak around the column, and backfill the hole to ensure that the soil is evenly filled. Following these ten steps, you can use a 12-inch pile hole auger to safely and correctly excavate the pile hole to ensure that the structure remains strong and durable.
12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger

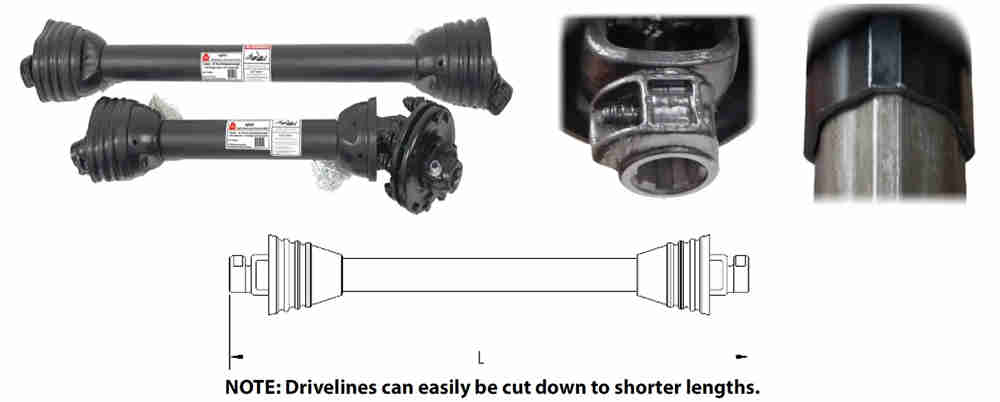

Specification for the rear hole auger PTO shaft
• PTO shaft is sturdy and durable • Equipped with quick disconnect 1-3/8 "6 splines installed on standard tractors • The adjustable telescopic tube can handle the high load requirements given by the series name • Used for various equipment, including backhole excavator, paver, tiller, lawn mower, etc. • Interchangeable with other manufacturers
Series
Shortest Length
Extended Length
Tractor End
Implement End
Common Uses
SKU
1
27
34
1-3/8" x 6 QD
1-3/8" x 6 QD
Fertilizer Spreader
27-010
3
40
54
1-3/8" x 6 QD
1-3/8" x 6 QD
Finishing Mower, Tiller
27-011
4
30
40
1-3/8" x 6 QD
1-3/8" Round
Finishing Mower, Tiller
27-012
4
32
42
1-3/8" x 6 QD
1-3/8" Round
Rotary Cutter
27-013
4
36
43
1-3/8" x 6 QD
1-3/8"x6 Clutch
Rotary Cutter, Tiller
27-014
4
37
50
1-3/8" x 6 QD
1-3/8" Round
Rotary Cutters, Pond
27-015
4
42
58
1-3/8" x 6 QD
1-3/8" Round
Post Hole Digger
27-016
4
48
65
1-3/8" x 6 QD
1-3/8" x 6 QD
Post Hole Digger
27-017
4
53
74
1-3/8" x 6 QD
1-1/4" Round
Post Hole Digger
27-018
5
42
57
1-3/8" x 6 QD
1-3/8" Round
Rotary Cutters
27-019
12
48
64
1-3/8" x 6 QD
1-1/4" Round
Heavy Duty Digger
27-020
14
37
49
1-3/8" x 6 QD
1-3/8" Round
Post Hole Digger
27-021
14
56
77
1-3/8" x 6 QD
1-3/8" Round
5' & 6' Pull Cutters
27-022
12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger
Select the correct PTO shaft for the auger of the hole digger
When selecting the PTO (power take-off) shaft for the rear hole excavator auger, several factors must be considered, including the tractor horsepower, the size of the auger and the length of the PTO shaft. Here are some steps to help you select the correct PTO shaft for the auger after drilling: Determine the tractor's horsepower: The PTO shaft you select should match the tractor's horsepower to ensure that it can handle the load of the auger. Measure the length of the PTO shaft: the PTO shaft should be long enough to reach the rear hole excavator from the tractor, thus allowing the excavator to move up and down. Check the connection type: the connection type should match the tractor and the auger after drilling to ensure seamless integration. Consider the width and length of the auger: the diameter and length of the PTO shaft should be able to handle the length and width of the auger. Verify compatibility: Before purchasing, please carefully check whether the PTO shaft you are considering is compatible with the tractor and the auger after drilling. In general, selecting the correct PTO shaft is crucial for achieving the best performance and service life while ensuring that the tractor is not damaged.
12 Inch Heavy Duty Post Hole Auger for 3 Point Tractor Post Hole Digger
