Y3115CNC10 4 Module CNC Gear Hobbing Machine with Integrated Chamfering Unit

Y3115 CNC Hobbing machine with integrated chamfering stationThe gear composite machine series products can meet the personalized needs of various customers in the gear industry, and can be freely selected by customers to meet the processing needs of small and medium-sized module gears in industries ......

Send Inquiry

Product Description

Y3115 CNC Hobbing machine with integrated chamfering station

The gear composite machine series products can meet the personalized needs of various customers in the gear industry, and can be freely selected by customers to meet the processing needs of small and medium-sized module gears in industries such as passenger vehicles, new energy vehicles, and small and medium-sized engineering machinery.

Modular design is adopted, for every functional components, for example: chamferingassembly,hydraulic station,pneumatic assembly,electrical cabinet and chipconveyor, which can be quickly combined according to customers' needs, withcompact overall layout, small floor area, meeting customerspersonalized,fastdelivery requirements.

Using two independent control systems to control the hobbing station and chamfering station processing, compared to the traditional dual channel control method, human-machine engineering is friendly and the operation is more convenient.

Special control software, special operation interface, without programming, only need to input the gear, tool and related cuttingparameters to realize the automatic machining of hobbing and chamfering station, operation is stable and reliable.

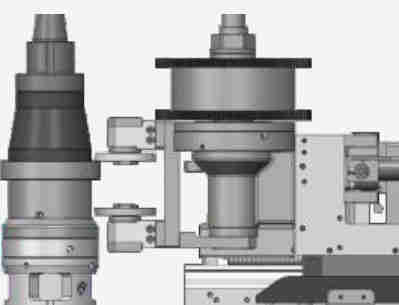

nner bulit-in chamtering structure.4-position rotating loading and unloading device. chamterng at the same time in cear hobbingoperation, to realize efficient production.

ihe edcing soueezing station can adjust edoing scueezing and the height of deburring at wrll, and the chamtering station can realizerapid production change, at the same time, to use the special design, allows the optional turning deburring function.

Using first-class parameter technology companies in the United States ( PTC ) . CAD / CAM / CAE integration of Pro / Engineer 3 d dessoftware . Combining parts design , product assembly , reverse engineering , automatic measurement , mechanism analysis , finite elemnt and other functions,greatly improve the quality of product research and development.

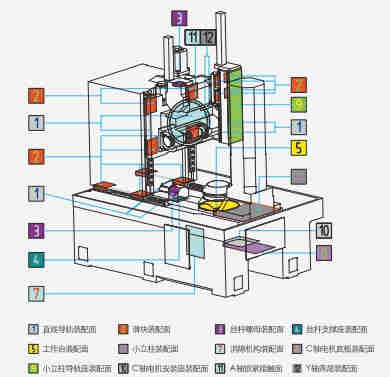

By skilled workers to shovel scraping all the important contactarea , to provide reliable guarantee for high rigidity and highprecision of the machine

All the castings , such as bed , large column and rear columnhave undergone secondary aging treatment , which can fullyeliminate the internal stress of the castings , improve the stabilityof the dimensional accuracy of the castings , and ensure the longterm stability of the precision of the machine tool.

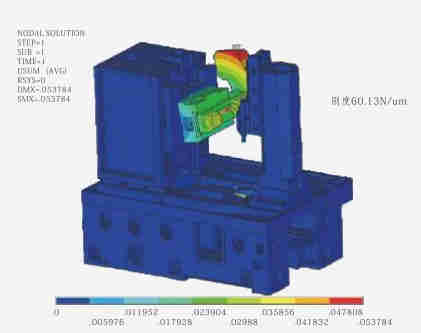

Machine using FEA ( finite element analysis ) design methodoptimized design according to the status of force bearinganalysis on the machine tools , machine tool quality greatlimproved , so as to make the machine without rigidvulnerabilities and rigid uniform distribution , greatly reduce theforced deformation of machine tool , has excellent performance

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Ever-power is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Ever-power not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Ever-power is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Ever-power has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
