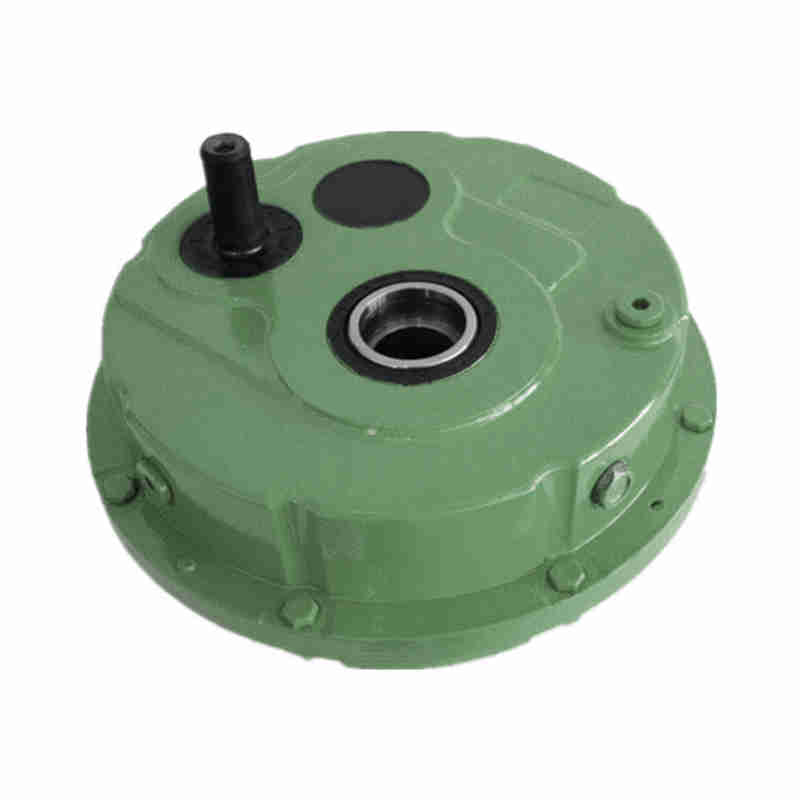

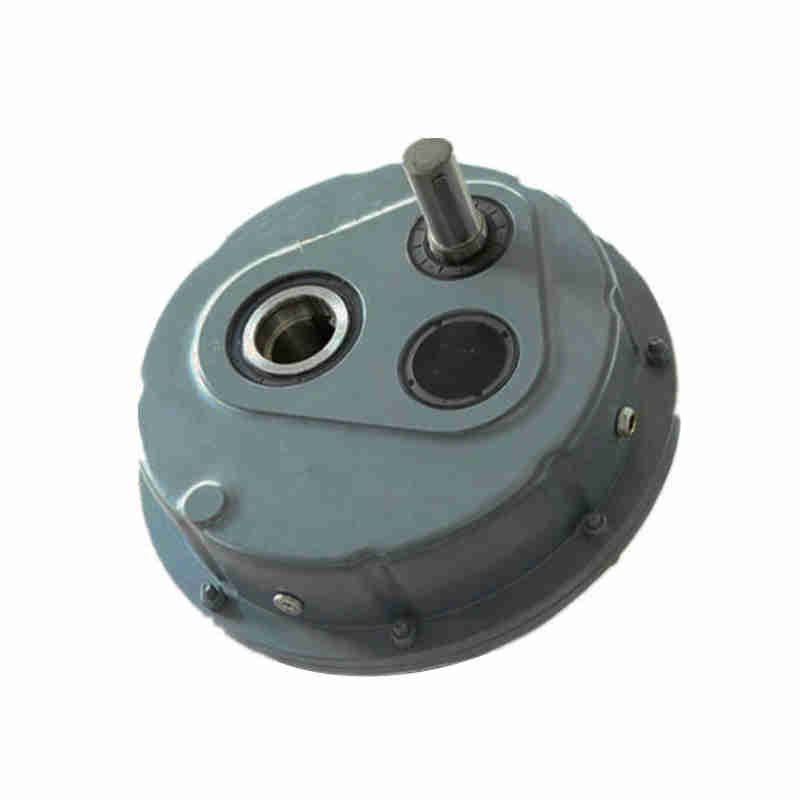

XG / TA Shaft Mounted Hanging Gearbox Speed Reducer for Mining & Quarry Vertical Gearbox with Motor Speed Variator

- Key benefits - Cost effective solution - High Reliability - Robustness - Very Compact design - Prevent the movement in the wrong way - Highly customizable product - Main options - Fluor Elastomer Seals - Backstop - Torque range - 150 - 16,000 Nm - Gear ratios - 5 - 33.2 - Tra......

Send Inquiry

Product Description

- Key benefits
- Cost effective solution
- High Reliability
- Robustness
- Very Compact design
- Prevent the movement in the wrong way
- Highly customizable product
- Main options
- Fluor Elastomer Seals
- Backstop
- Torque range
- 150 - 16,000 Nm

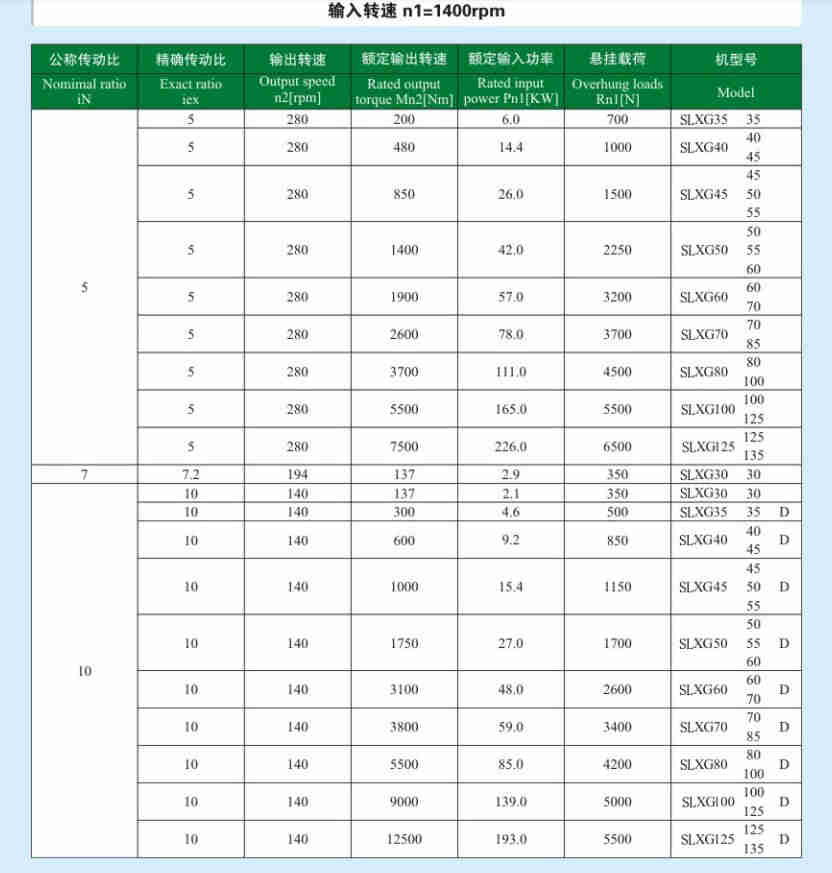

- Gear ratios
- 5 - 33.2
- Transmissible Mechanical Power
- Up to 226 kW
- Motors
- Input with solid shaft
- Input with e-motor coupling:
> BN, BE, BX [IEC asynchronous]
> BSR [IEC reluctance]
> BS [IEC single phase]
- Motor options
- Thermistors and thermostat sensors
- Independent forced cooling
- Incremental, sin/cos absolute single/multi-turn encoders
- Tropicalization
- Anti-condensation heaters

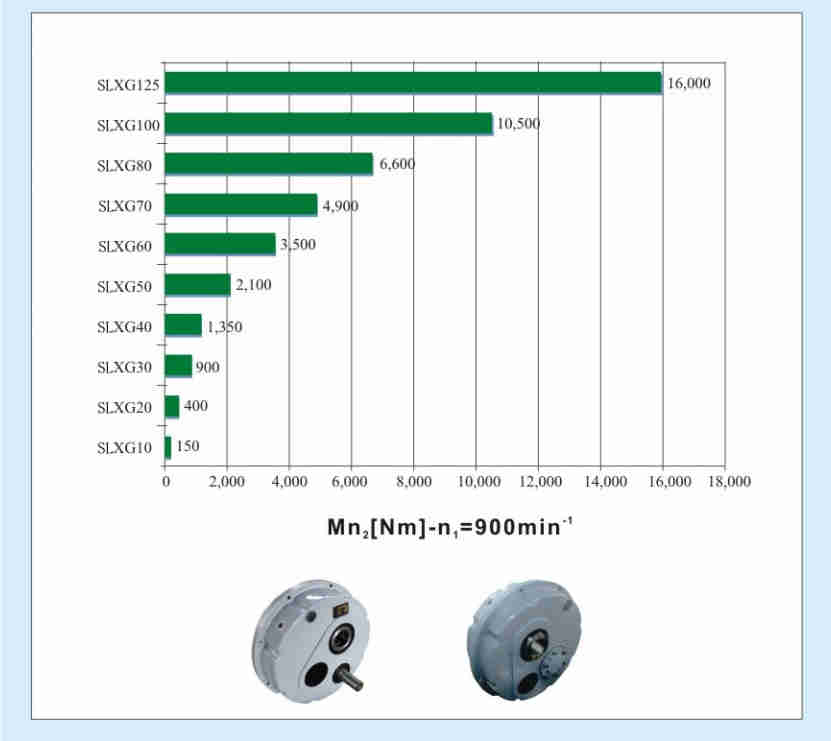

- Torque Range
- TA 30 = 150 Nm
- TA 35 = 400 Nm
- TA 40 = 900 Nm
- TA 45 = 1360 Nm
- TA 50 = 2100 Nm
- TA 60 = 3500 Nm
- TA 70 = 4900 Nm
- TA 80 = 6600 Nm
- TA 100 = 10500 Nm
- TA 125 = 16000 Nm
