WH78 WH82 WH124 WH132 Welded Steel Mill Chain with H2 K1 K2 RR Attachment

Send Inquiry

Product Description

Offset milled chains are available in carbon steel and stainless steel. Welded steel mill grade chains are recommended for most conveying, drive and lifting applications requiring high strength steel rollerless chains. These chains will run on the same sprockets as their cast counterparts. A complete range of accessories and optional heat treatments make them easy to adapt to a variety of applications. • Automatic welding for Ensure consistent weld and barrel position • Carbon steel chain with heat-treated pins, barrels and side bars • Stainless steel range with heat treated barrels and pins • WHX series available with induction hardened pins

H2 Attachment

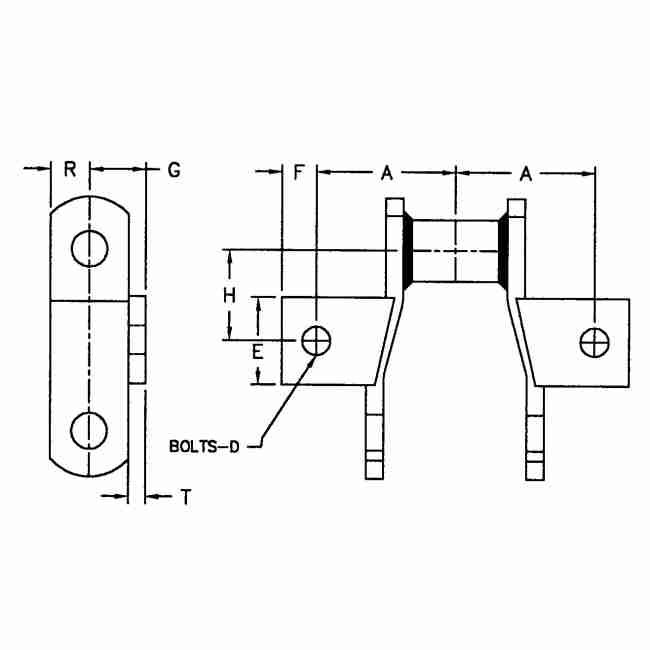

K1 Attachment

ATTACHMENT NUMBER	CHAIN NUMBER	WEIGHT PER FOOT LBS.	A	D	E	F
H2	WH78	4.75	—	—	—	—
H2	WH82	9.00	—	—	—	—
K1	WH78	4.97	2.00	.38	1.25	.50
K1	WH82	6.50	2.13	.38	1.75	.62
K1	WH124	11.70	2.62	.62	2.00	.62
K2	WH78	5.00	2.00	.38	2.13	.50
K2	WH82	8.00	2.13	.38	2.25	.62
K2	WH124	12.00	2.62	.38	3.00	.62
K2	WH132	19.00	3.75	.50	4.00	.75
RR	WH78	4.70	—	—	—	—
RR	WH82	7.00	—	—	—	—
RR	WH124	10.00	—	—	—	—

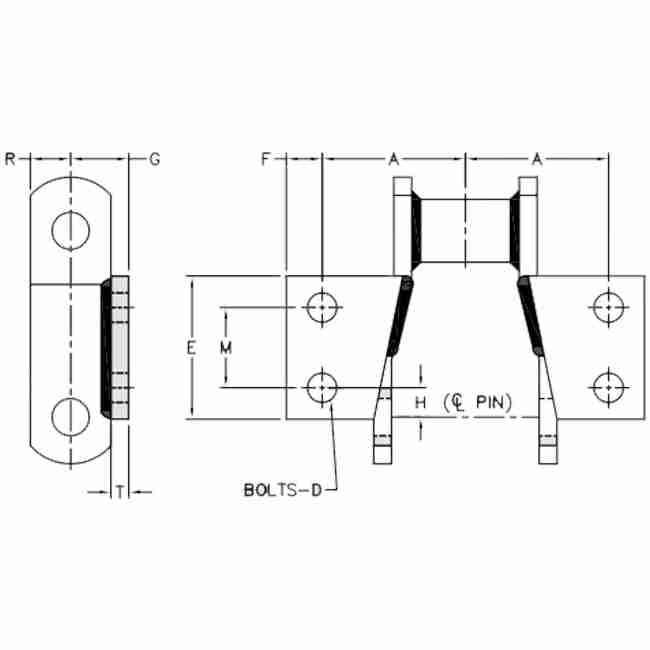

K2 Attachment

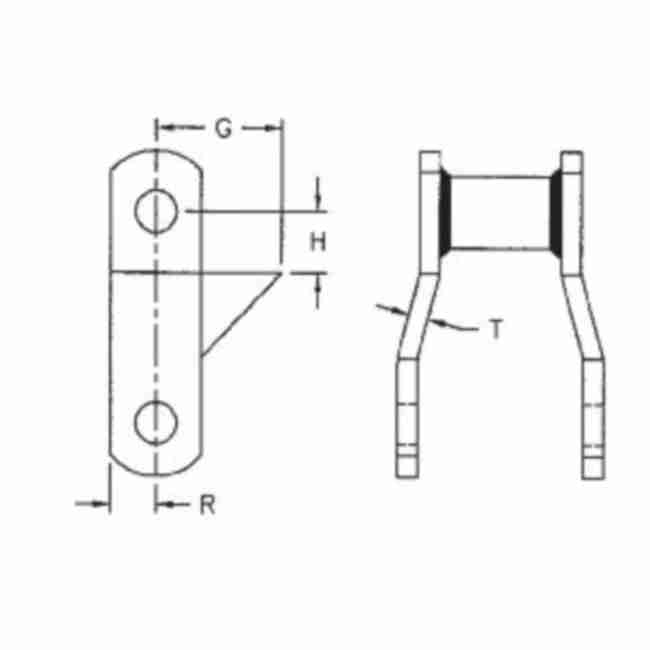

RR Attachment

ATTACHMENT NUMBER	CHAIN NUMBER	G	H	K	M	R	T	X
A1	WH78	3.56	.31	1.10	—	.56	.25	—
A1	WH82	3.62	.62	1.13	—	.62	.19	—
A1	WH124	.81	1.25	—	—	.56	.25	—
A2	WH78	.94	1.50	—	—	.62	.25	—
A2	WH82	1.13	1.81	—	—	.75	.38	—
A2	WH124	.78	.41	—	1.13	.56	.25	—
A2	WH132	.94	.50	—	1.25	.62	.31	—
A225	WH124	1.13	.88	—	1.94	.75	.38	—
F10	WH82	1.50	1.62	—	2.75	1.00	.50	—
F30	WH78	1.50	.75	—	—	.56	.25	—
F659	WH124	1.75	.81	—	—	.62	.25	—
