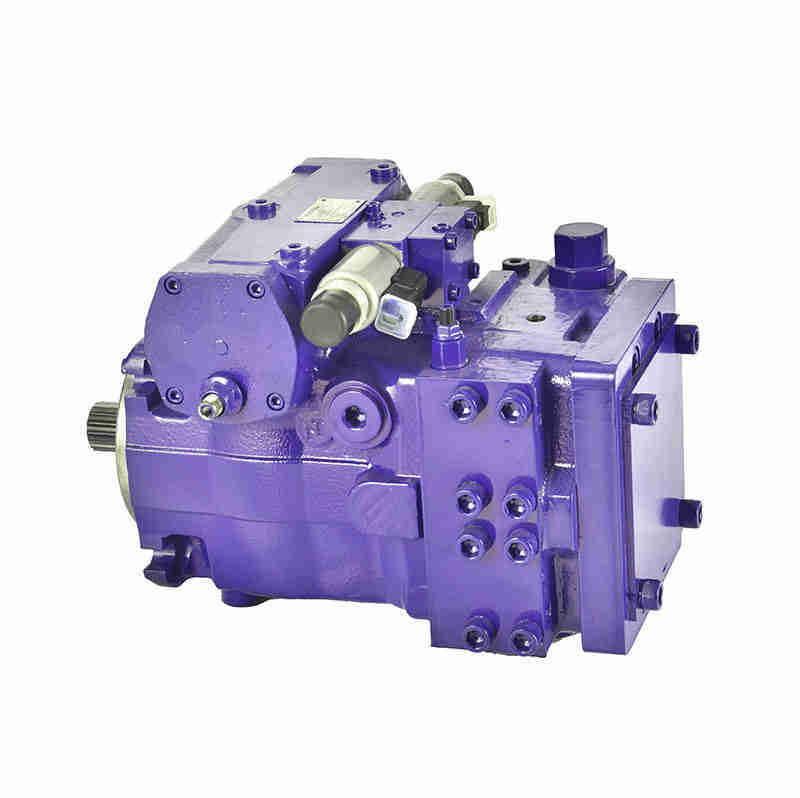

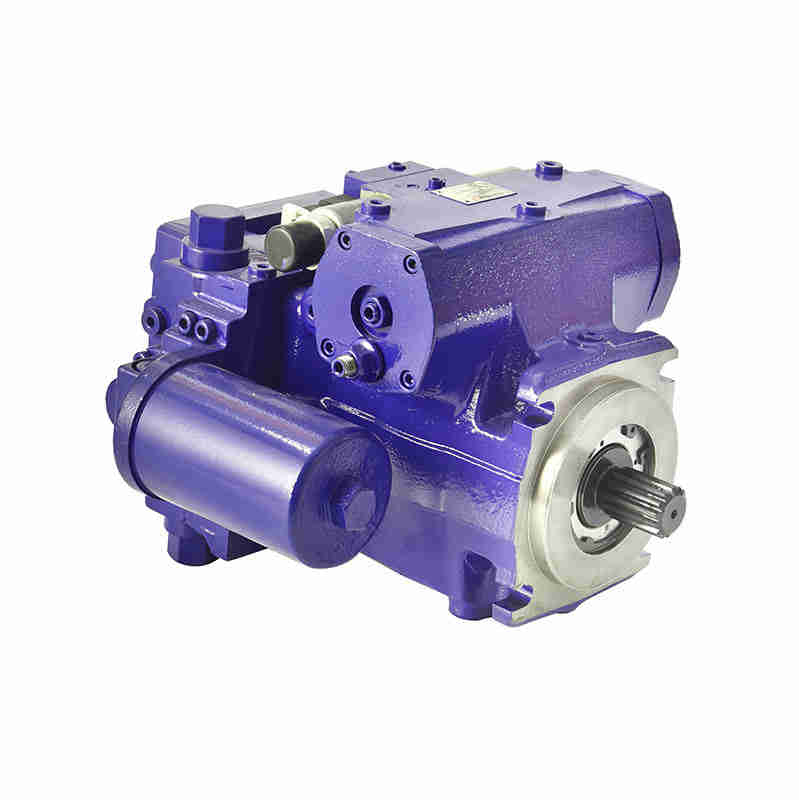

Swash Plate Axial Piston Variable Displacement Hydraulic Pump for Cotton Harvesting and Packaging Machine

Send Inquiry

Product Description

Slant disc structure axial piston variable displacement pump, used for closed-loop static hydraulic transmission; The flow rate is proportional to the driving speed and displacement, and can be infinitely adjusted; Built in fuel replenishment pump, used for fuel supply and control pump; Electric proportional displacement control, meeting the requirements of various industry applications; The maximum oil replenishment pressure is limited by the built-in low-pressure safety valve

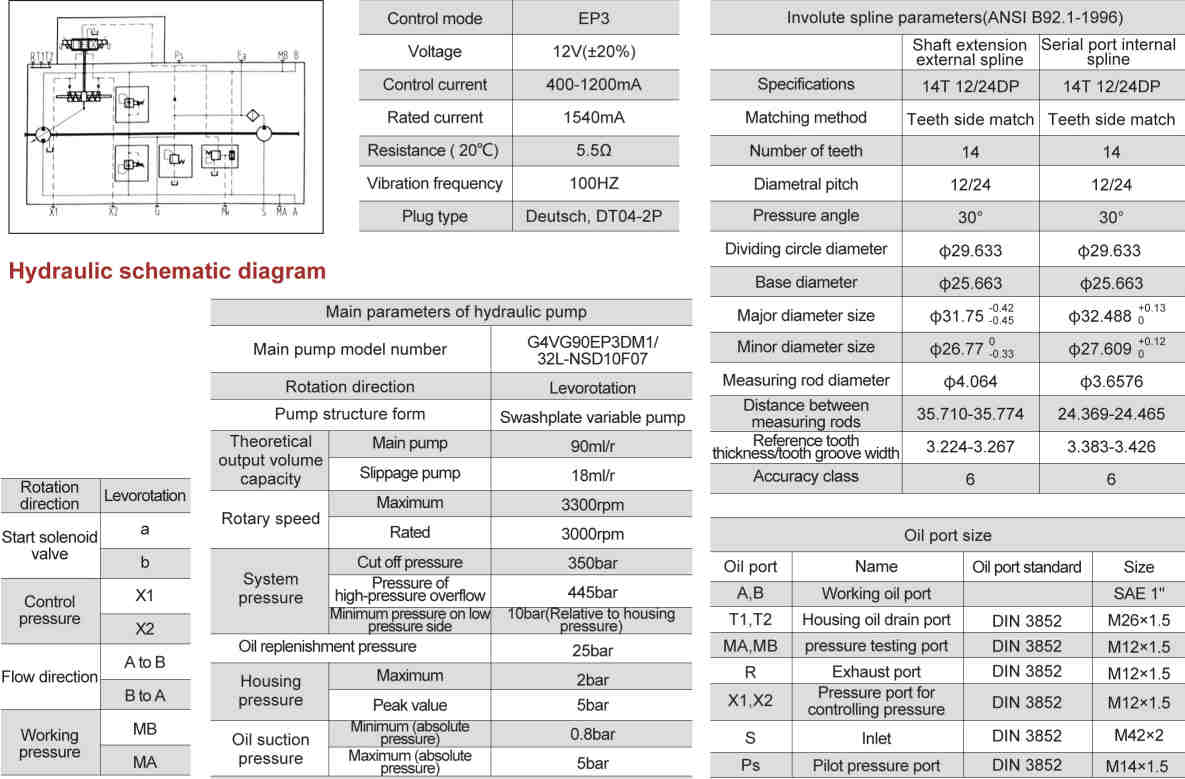

model	A4vG90EP3DM1/32L-NSD10FO7
displacement	90mL/r
Rotation direction	Left-handed rotation
Working mode	Closed circuit
Rated speed	3000rpm
Maximum speed	3300rpm
High pressure overflow pressure	445bar
Cut off pressure	350bar(Adjustable)
Shell pressure	maximum: 2bar peak value:5bar
Oil suction pressure	Minimum (absolute pressure):0.8bar Maximum (absolute pressure): 5bar
Oil replenishment pressure	25bar
Refueling oil pump displacement	18mL/r
control mode	Electric proportional displacement control (DC) 12v: Deutsch DT04-2P, 2-pin
Filtering method	Integrated pressure oil filtration
Filtering accuracy	10um

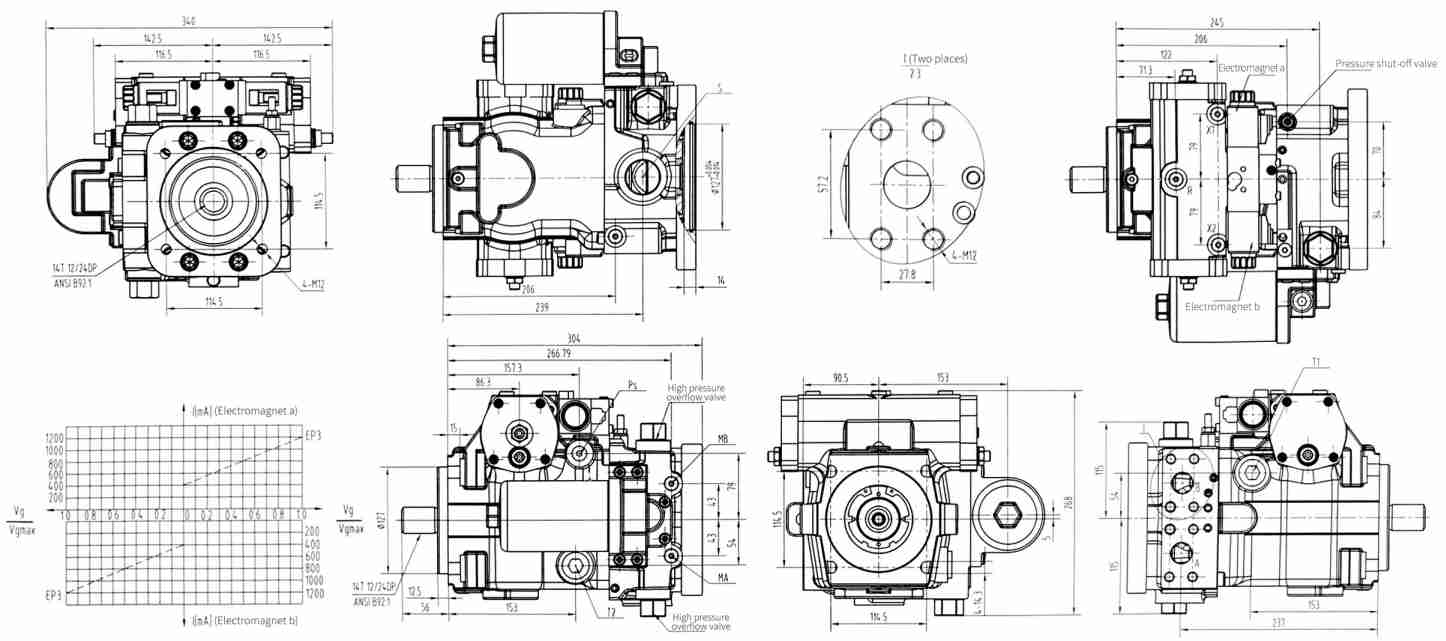

Input shaft	14T 12/24DP ANSI B92.1a
Installing flanges	SAEJ744-32-4; Stop diameter 127mm, stop depth 12.7mm
Through axis drive	Installation flange: SAEJ744 127-4 (C); Internal spline: 14T 12/24DP
Housing return port	DIN3852 M26×1.5
Working oil port	SAE 1 ", M12 x 1.75, thread depth 17

Assembly precautions (1) During the assembly process, please be careful not to leave burrs on the assembly surface and do not allow dust to enter; () After assembly, exposed holes should be treated for dust prevention; () Apply rust inhibitor on the input shaft and flange; (4) When painting, the nameplate and installation surface need to be covered to avoid painting. Precautions for operation (1) When transporting hydraulic pumps, do not subject the drive shaft of the pump body to strong impact. (2) Before operation, it is necessary to exhaust through the exhaust port and fill the housing with clean hydraulic oil; (3) When running the hydraulic pump, be careful not to let hydraulic oil and other liquids flow onto the surface of the hydraulic pump assembly; (4) The cleanliness of the hydraulic oil used should reach NAS level 9.

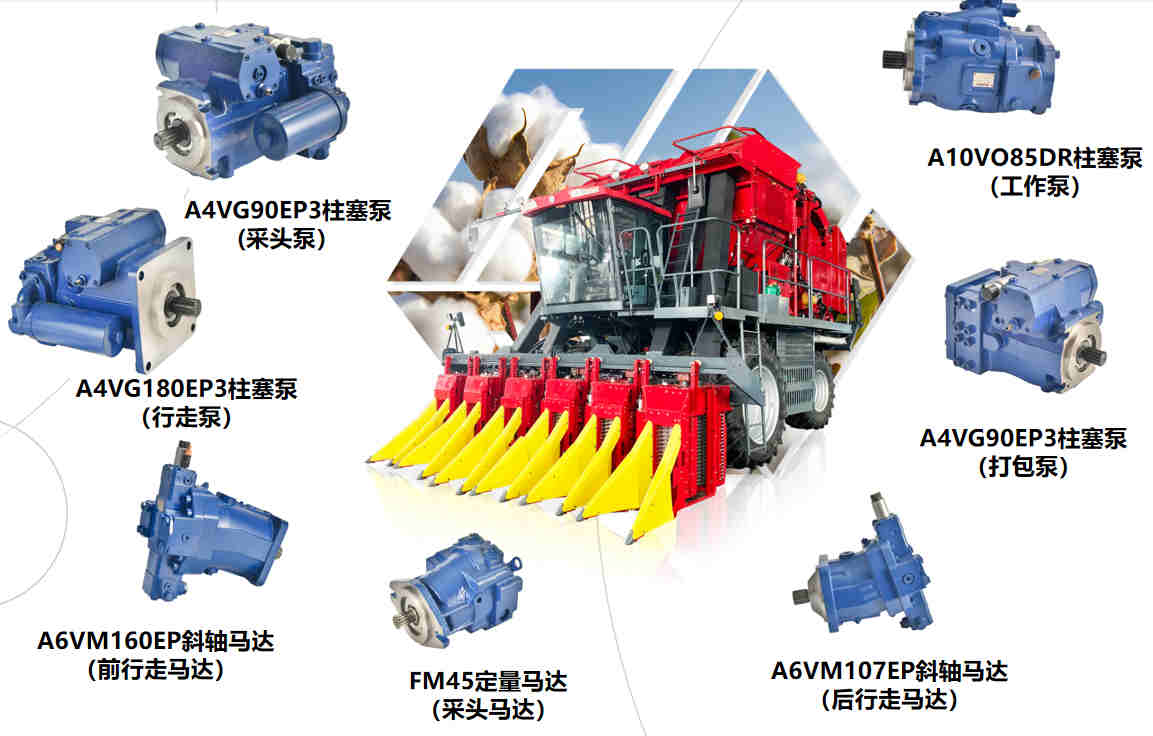

Application Scenarios:
1. Harvesting Operations – Hydraulic pumps power critical components like the header, feed rollers, and stalk choppers, ensuring
efficient corn picking and processing.

2. Driving Systems – Used in hydrostatic transmissions for smooth speed control and maneuverability in varying field conditions.

3. Grain Handling – Supports hydraulic augers and elevators for seamless grain transfer to storage or transport vehicles.

4. Adjustable Mechanisms – Enables real-time adjustments of header height, reel speed, and other parameters for optimal harvest
quality.

5. Steering & Braking – Integrates with hydraulic steering systems for precise control, especially in large, modern harvesters.

For more details, please click here to contact us!

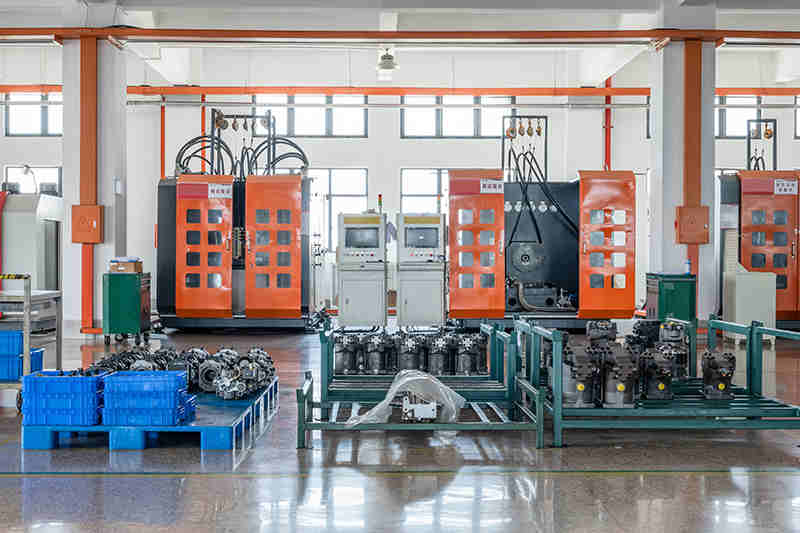

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

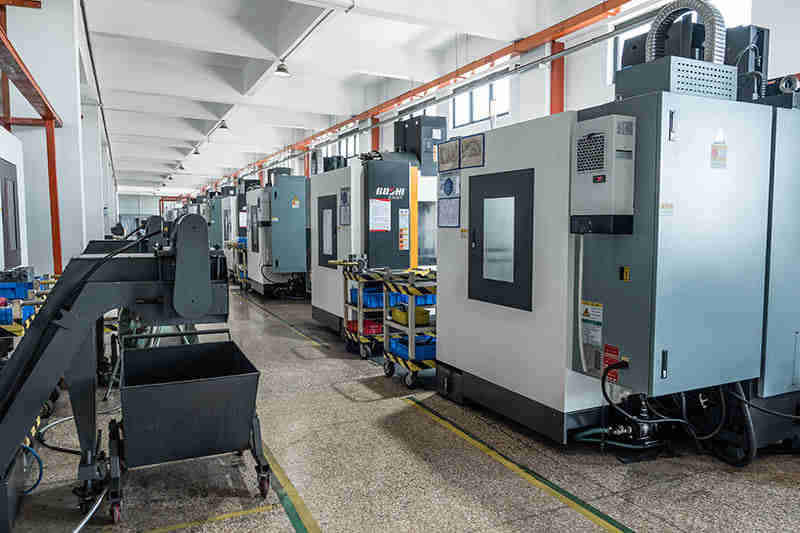

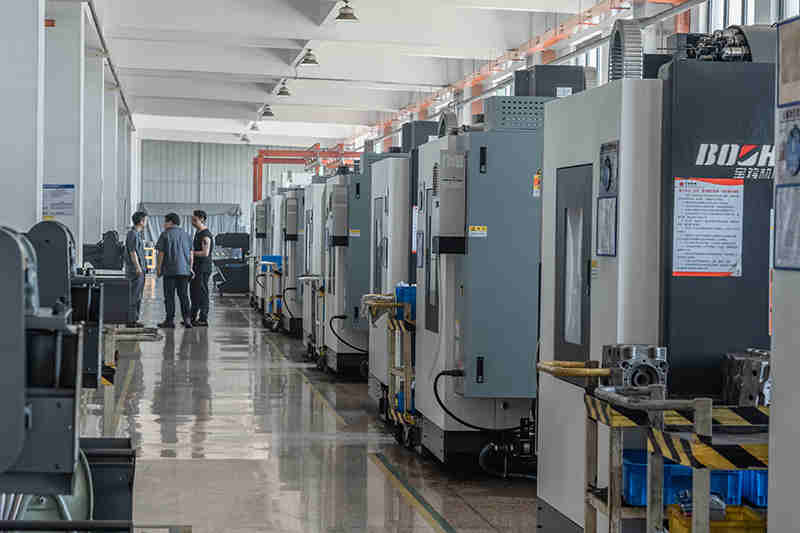

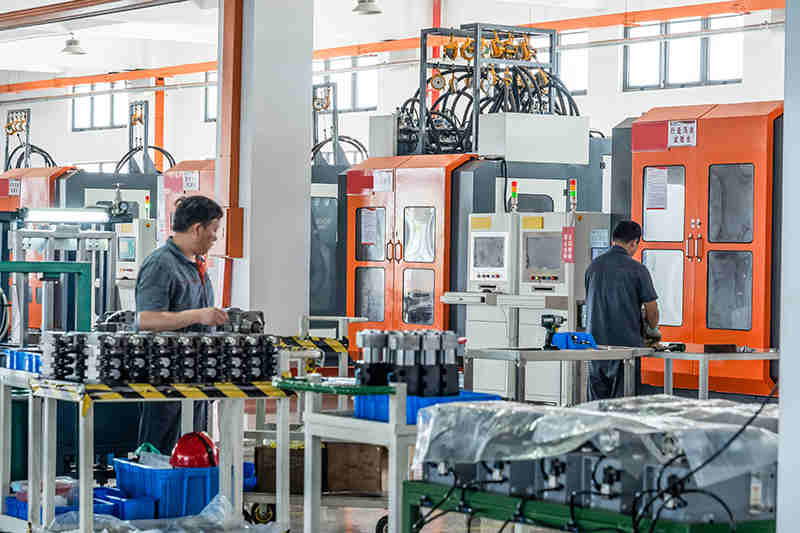

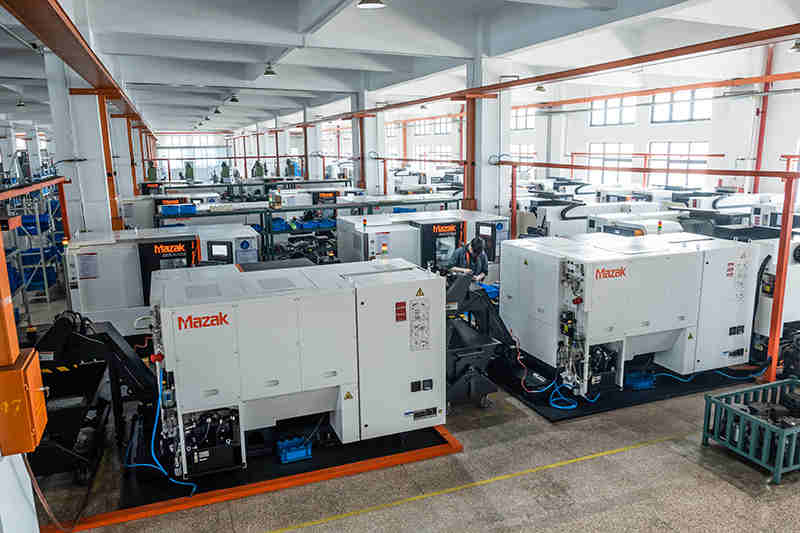

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.
