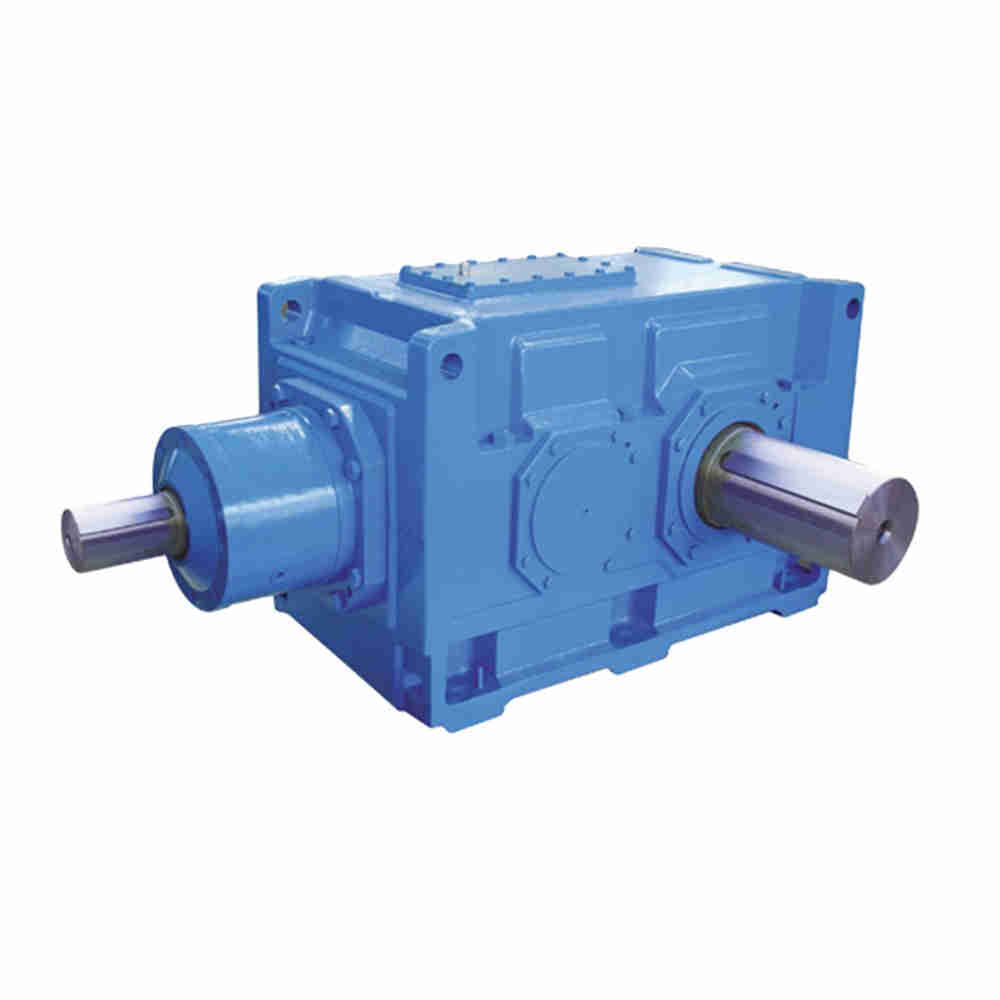

Professional Gearbox Manufacturer H Series Parallel Shaft Helical Gearbox

ZQ JZQ Series Gear Reducer GearboxZq Cylindrical gear speed reducer is a three-level transmission of involute cylindrical gear reducer, mainly used inmining,metallurgy, cement, construction, chemical industry, light industry, etc all kinds of mechanical equipment, reduction drive, is suitable for th......

Send Inquiry

Product Description

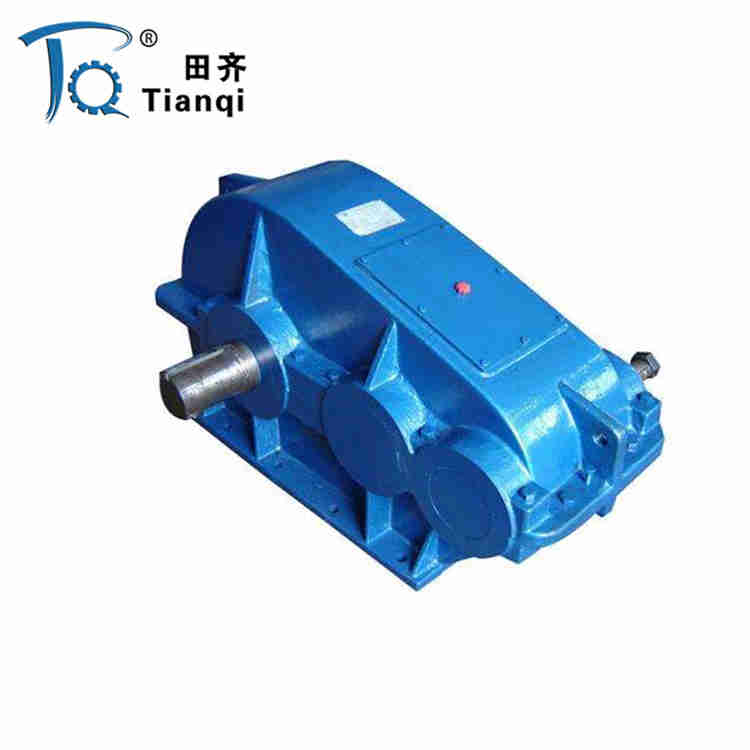

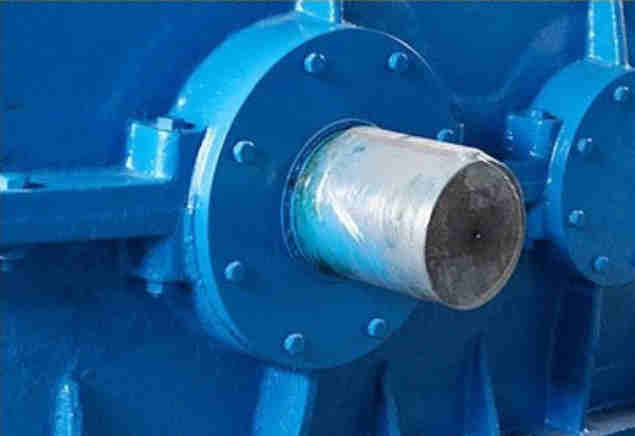

ZQ JZQ Series Gear Reducer Gearbox

Zq Cylindrical gear speed reducer is a three-level transmission of involute cylindrical gear reducer, mainly used inmining,metallurgy, cement, construction, chemical industry, light industry, etc all kinds of mechanical equipment, reduction drive, is suitable for the workplace being limited by the structure adopts the vertical installation, high-speed spindle speed not more than 1500 r/min, the work environment to + 40 °C and 40 °C -, can positive &negative operation.

Specification	Manufacturing Capacity(t/h)	Motor Power (kw)	Pulley Speed (r/min)	Gearbox Model	Weight(t)
Φ0.6×8 m	1.5-2.8	4	8	JZQ 250-16- Ⅰ	5.1
Φ0.8×10 m	3	4	7.5	JZQ 350-16- Ⅰ	6.9
Φ10×10 m	3.3-4.9	5.5	5.8	JZQ 400-16- Ⅰ	7.5
Φ1.2×10 m	4-6	7.5	4.8	ZL 50-16- Ⅰ	13.5
Φ1.5×12 m	4-6	10	4.8	JZQ 500- Ⅲ-2F	18.9
Φ1.5×15 m	7-12	18.5	4.8	ZQ 500- Ⅲ-2F	21
Φ1.8×12 m	7-12	18.5	4.1	JZQ 50-16 Ⅱ-2	22.83
Φ2.2×12 m	12	18.5	3.2	JZQ 650- Ⅲ	37.6
Φ2.2×14 m	12	22	3.2	JZQ 650- Ⅲ	40
Φ2.2×16 m	10-13	30	3.2	JZQ 750- Ⅲ	45
Φ2.4×14 m	10-14	30	3	JZQ 750- Ⅲ	51
Φ2.4×18 m	25	37	3	ZL85-13-Ⅰ	54
Φ2.4×20 m	32-36	37	3	ZL 85-13- Ⅰ	54.14
Φ3×20 m	40-50	55	2.59	ZL 100-16- Ⅰ	78
Φ3×25 m	45-58	75	2.59	ZL 100-16-I	104.9

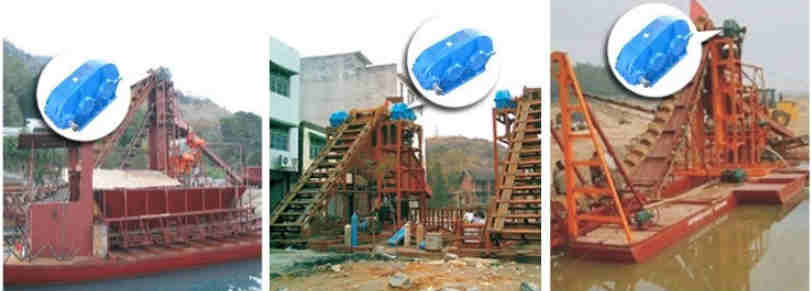

With high power, low speed, high torque,Heavy-duty carrying capacity design with compact structure and other characteristics.Reducers are widely used in gold panning, sand digging, mining,Metallurgy and other industries.

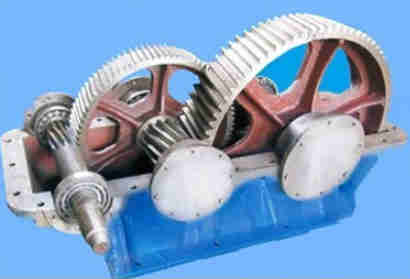

Large modulus, strong bearing capacity and high precision; shafts, gearsMade of national standard No. 45 steel, strictly normalizedHeat treatment processes such as conditioning, quenching and tempering, quenching and tempering.

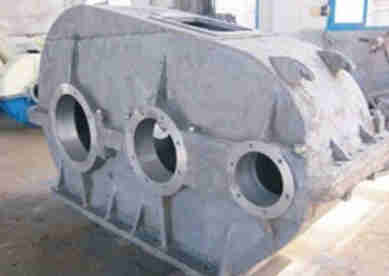

The body is made of high-quality raw materials, strong and durable,After 6 months of aging treatment, internal stress is eliminated,Effectively reduce the risk of variants.

CLICK HERE FOR MORE DISCOUNTS!

Advantage:

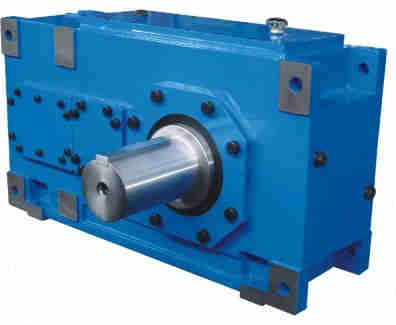

SLH series high power speed reducer has the features of high versatility,good combination and heavy loading capability, along with other merits such as easy to attain various transmission ratios, high efficiency, low vibration and high permissible axis radial load.

Specifications:
1) Output speed: 1.7~1200r/min
2) Output torque: up to 47,000N.m
3) Motor power: 2.52~5366kW
4) Mounted form: foot-mounted ,flange-mounted, axis mounted, shrink mounted
