The 600 series planetary wheel drives by Ever-Power Group Co.,Ltd. enjoy following features:
Track drives | Max. torque | Range of ratios | Max. Input speed | Braking torque | Design |
Type | N.m | ( i ) | (rpm) | (N.m) | |
EP601 L1A | 1750 | 5.77 | 1000 | 450-600 | A |
EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 | A |
EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 | B |
EP602 L2 | 5000 | 12.4-25.8 | 3000 | —– | B |
EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 | B |
EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 | B |
EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 | B |
EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 | B |
EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 | B |
EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 | B |
EP613 L3 | 45000 | 108 | 3000 | 300-800 | B |
EP615 L3 | 60000 | 108 | 3000 | 300-1000 | B |

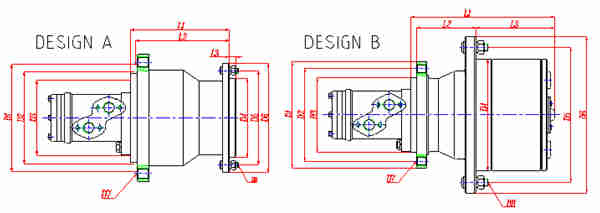

| Wheel drives | Dimensions | |||||||||||
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | L1 | L2 | L3 | Design | |
| EP601 L1A | 260 | 230 | 200 | 152.4 | 203.2 | 230 | 15n=8 | M14 *1.5 n=8 | 245 | 195 | 10 | A |
| EP603 L2A | 270 | 230 | 190 | 160 | 205 | 280 | M6 *2 n=8 | M18*1.5 n=6 | 230 | 175 | 25 | A |
| EP603 L2B | 270 | 230 | 190 | 200 | 245 | 280 | M6 *2 n=8 | M18*1.5 n=6 | 230 | 72 | 128 | B |
| EP602 L2 | 190.5 | 165.1 | 133.35 | 200 | 241.3 | 279.4 | 5/8”-11 UNC n=8 | 1/2”-13 UNC n=9 | 261 | 105.9 | 145 | B |
| EP605 L2 | 270 | 230 | 190 | 220 | 275 | 310 | M16*2 n=8 | M20*1.5 n=6 | 260 | 72 | 176 | B |
| EP606 L2, L3 | 330 | 300 | 270 | 280 | 335 | 370 | M16*2 n=18 | M22*1.5n=10 | 330 | 115 | 190 | B |
| EP607 L2, L3 | 380 | 285 | 240 | 320 | 380 | 410 | M20*2.5 n=20 | M18*1.5 n=20 | 408 | 82 | 298 | B |
| EP609 L2, L3 | 380 | 285 | 240 | 350 | 400 | 435 | M20*2.5 n=20 | M20*1.5 n=16 | 413 | 91 | 303 | B |
| EP610 L2, L3 | 375 | 340 | 300 | 350 | 400 | 435 | M20*2.5 n=16 | M22*1.5 n=16 | 425 | 91 | 303 | B |
| EP611 L2, L3 | 425 | 325 | 290 | 410 | 455 | 490 | M20*2.5 n=24 | M20*1.5n=24 | 498 | 110 | 365 | B |
| EP613 L3 | 425 | 325 | 280 | 410 | 455 | 490 | M20*2.5 n=24 | M20*1.5n=24 | 510 | 110 | 380 | B |
| EP615 L3 | 500 | 460 | 420 | 460 | 510 | 550 | M20*2.5 n=24 | M20*1.5n=24 | 565 | 130 | 415 | B |
If you want any more details, please do not hesitate to ask!
The company has many Taiwan-made high quality machines, such as fully automatic integrated machining center, CNC grinding machine, CNC gear machines and CNC machine tools etc. to ensure high accuracy for the parts. All of Our employees have undergone a rigorous professional training, have good skills and excellent quality. The company adopt modern computer management systems and has successfully passed ISO9001: 2000 quality system certification.
Product Name | Planetary GearBoxes For Excavators Slew Drive And Track Drive |
Planetary Gearbox Mixer | Planetary Belt Conveyor Drives | Planetary uni-axis twin output shaft speed reducers |
Planetary Reduction Gearboxes | Planetary Sprocket Drives | Yaw and Pitch drive |
Planetary GearBoxes For Slew Drive | Planetary Creep Drives | Torque limiters |
Planetary Gearboxes For Wheel Drive | Precision Planetary Gearbox | Yaw and Pitch drive EP707AL4 |
Hydraulic Swing Drive Motor | Planetary Slew Drives | enhancement planetary gear boxes |
Transit Mixer Gearboxes | Planetary Gear Drives | EP400T1 Track drives |
Planetary GearBoxes For Construction Equipment | Planetary Wheel Drive | EP401 Track drives |
Planetary GearBoxes For Excavators Slew Drive | Planetary Winch Drive | EP402T2 Track drives |
Planetary Gearbox Travel Drives Wheel Drive | Planetary Track Drive | EP403W2 Winch drives |
Auger Drives | Planetary Cone-Disk Variator | PLF Planetary Gearbox |
EPX Heavy Planetary Gearbox | EP300 series planetary drives | Gearbox For Concrete Truck Mixer E8A |
EPW Planetary Gearboxes With Foot Dimensions | Planetary speed reducers | SLP Series Planetary Speed Reducer |
EPL Planetary Gearbox | Planetary geared motors | Hollow shaft output |
Roller Press Planetary Gearboxes | Planetary sprocket drives | EPL double shaft Planetary gearbox |
Yaw And Pitch Drive | Planetary parallel axis twin output shaft speed reducers | EPW planetary gearboxes with foot dimensions |
Ever-power is specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
We provides a reliable gurantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.
In recent years, the company has been developing rapidly by its rich experience in production, adcanced managemant system , standardized management system, strong technical force. We always adhere the concept of survial by quality, and decelopment by innovation in science and technology.
Ever-power is willing to work with you hand in hand and create brilliance together!
Grinding Workshop
CNC Teeth Machine
CNC Lathe Workshop
Figuring Center
CNC Workshop
Heat Treatment Machine
3D Measurement Machinery
Gear Teeth Profile Test Machines
Heat Treatment Workshop
Tooth Profile Workshop
Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.
Blacking, galvanization, chroming, electrophoresis, color painting, ...
High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products , the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
