KM6001 Series Pump Over Gear Gearbox PTO Speed Increaser Aluminium Multiplier for Tractor Hydraulic Pump

Aluminium Muitiplier KM6001The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO).Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps.Different input running speeds can also be suitable, provided that ......

Send Inquiry

Product Description

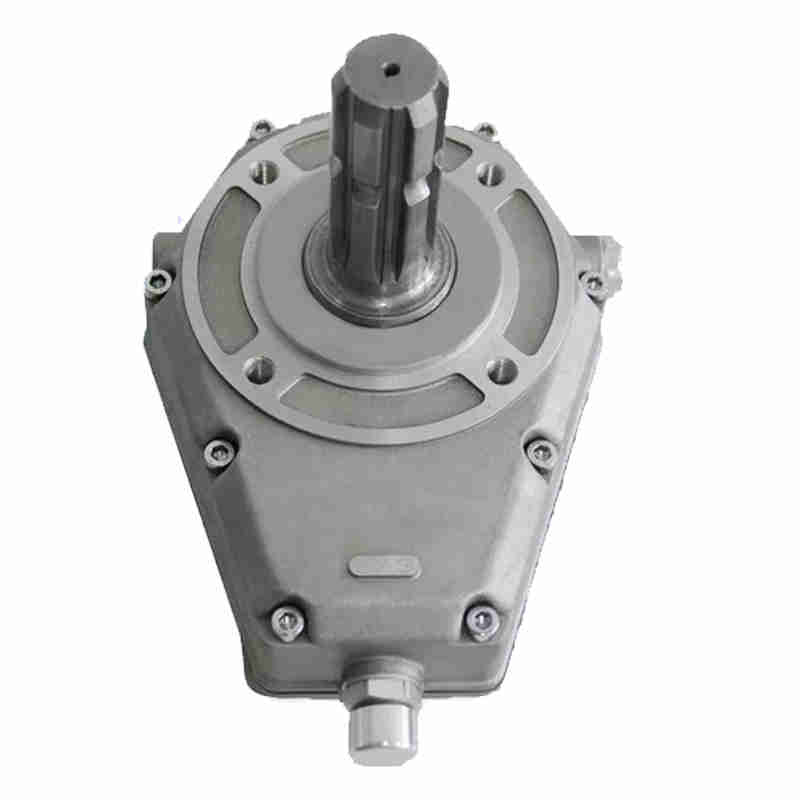

Aluminium Muitiplier KM6001

The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO).Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps.Different input running speeds can also be suitable, provided that the PTO gearbox output speed does not exceed 3000 rpm.

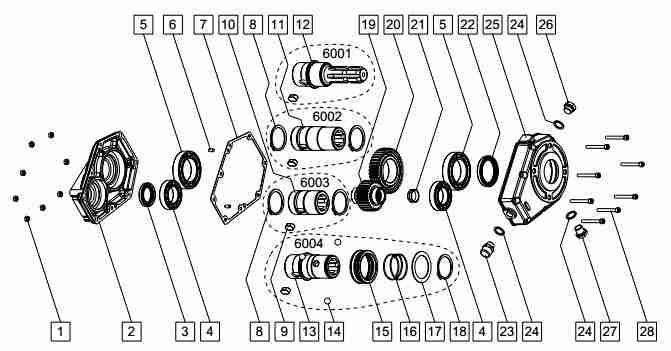

Spare Parts

No.	Description	Quantity	No.	Description	Quantity
1	Nut M6	8	15	Spring ring	1
2	Nut M6	1	16	Spring	1
3	Sealing ring 35 x 52 x7	1	17	Ring	1
4	Bearing type 6007	2	18	Snap ring 48
5	Bearing type 6010	2	19	Pinion gear	1
6	Peg6x12	2	20	Ring gear	1
7	Gasket	1	21	Cap DIN 470 27	1
8	Snap ring dia.50	2	22	Sealing ring 50x65x8	1
9	Key 12x8	1	23	Oil filling cap 3/8”	1

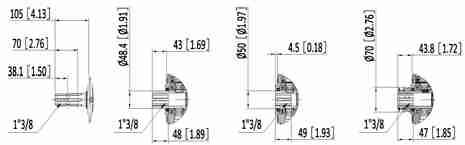

10	Female 1 3/8" DlN 9611 short	1	24	Gasket	1
11	Female 1 3/8" DlN 9611	1	25	Housing	1
12	Male 1 3/8" DIN 9611	1	26	Oil drain plug 3/8"	1
13	Female 1 3/8" DlN 9611 + tightening	1	27	Oil level plug 3/8”	1
14	Ball	3	28	Socket capscrew M6x50	8

Input torque Nm	Output toque Nm	Input speed r/min	Ratio	Output speed r/min	Power Kw	Weight Kg
178	119	540	1.5	810	10	5.8
152	76	540	2	1080	10	5.8
165	66	540	2.5	1350	10	5.8
180	55	540	3	1680	10	5.8
186	58	540	3.5	1836	10	5.8
159	42	540	3.8	2052	10	5.8

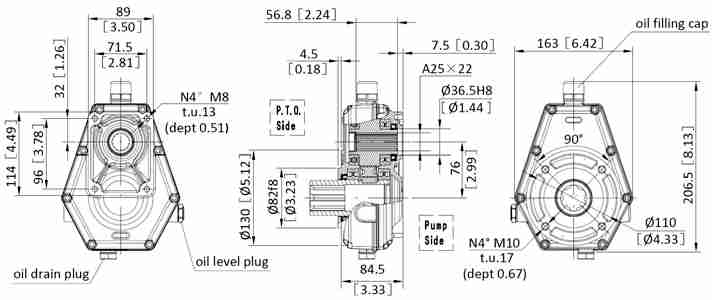

Three Views
