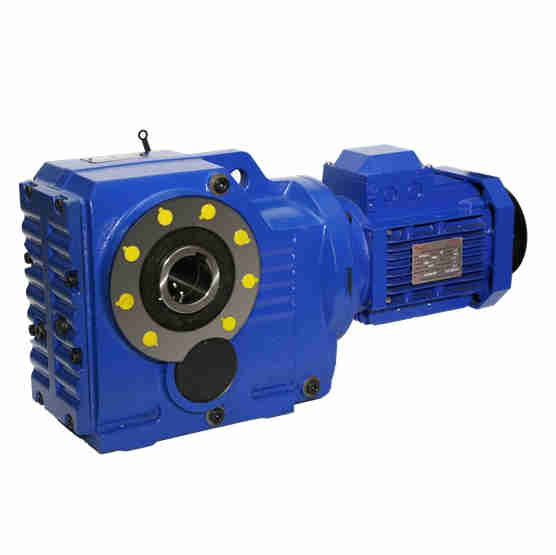

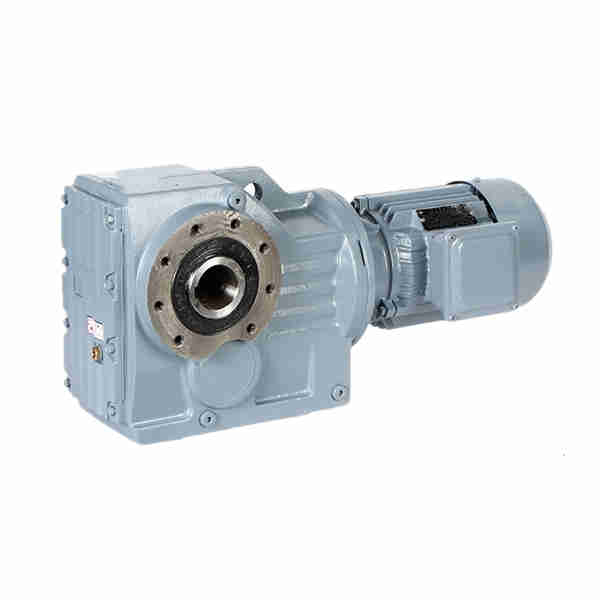

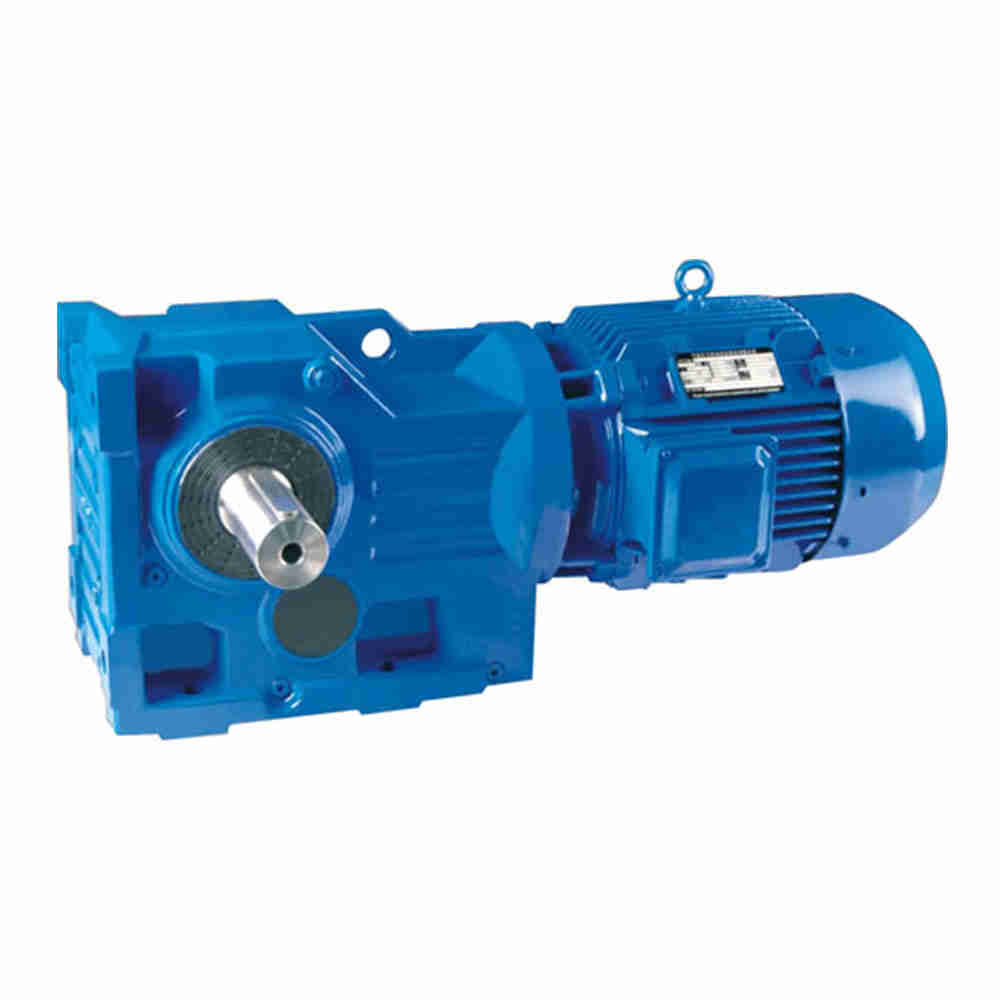

K series helical bevel gearbox electric motor reduction gearbox is one kind of Helical Bevel type gearbox , High-stainless cast iron case . ,it is designed based on modularization , which bring many difference kinds of combinations ,mounting types ,and structure designs .The detail classification of ratio can meet various of working condition .High Transmission efficiency ,Low energy consumption, superior performance . The hard tooth surface gear use the high quality alloy steel , the process of carburizing and quenching, grinding ,which give it follow characters : Stable transmission , low noise and temperature ,high loading ,long working life. which widely use for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking , Sugar making , engineering Machines ,etc
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW
4) Mounted form: foot-mounted and flange-mounted mounting
Product Name | K series helical bevel gearbox electric motor reduction gearbox |
Gear Material | 20CrMnTi |
Case Material | HT250 |
Shaft Material | 20CrMnTi |
Gear Processing | Grinding finish by HOFLER Grinding Machines |
Color | Customized |
Noise Test | 65~70dB |
Efficiency | 94%~98% (depends on the transmission stage) |
Lubricating oil | Shell Omala synthetic oil or mineral oil , or similar brand |
Heat treatment | tempering, cementiting, quenching,etc. |
Brand of bearings | C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on |
Brand of oil seal | NAK or other brand |
Temp. rise (MAX) | 40 ° |
Temp. rise (Oil)(MAX) | 50 ° |
Vibration | ≤20µm |
