High Quality CNC Camshaft Grinding Machine Camshaft Grinder

Raydafon Group's High Quality CNC Camshaft Grinding Machine delivers precise camshaft grinding for automotive industries, enhancing efficiency with advanced technology and durable design, solving production challenges and ensuring superior performance.

Send Inquiry

Product Description

MK8312A CNC camshaft grinding machine

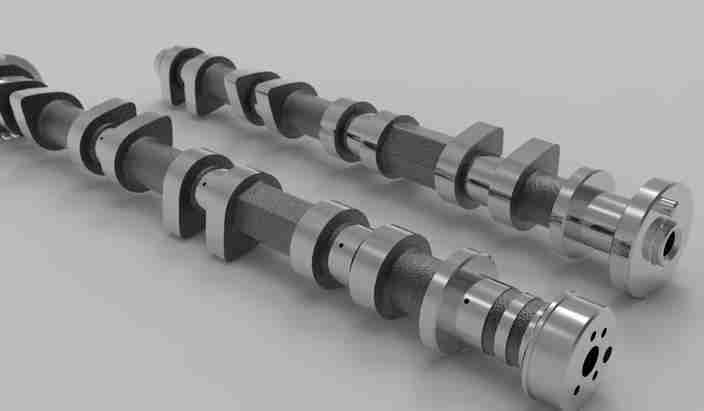

MK8312A CNC camshaft grinding machine is developed for mass production of various camshafts for

oil pumps, cars,tractors and other internal conbustion engines .Also can be applied to repair camshafts.

With advanced NC processing control technology, machine can work out various cam profiles via

linkage motion. Easy operation; high machining flexibility, good rigidity,high efficiency.

* SIEMENS 840D SL NC SYSTEM;

* IMPORTED MOTION MONITORING DEVICES;

* HIGH RIGIDITY CAST IRON BASE;

* MODERN DESIGN HOUSING WITH OIL MIST CLEANER;

* DRESSER LOCATED BEHIND HEADSTOCK;

* CBN WHEEL CAN BE USED FOR GRINDING;

* HIGH EFFICIENCY, HIGH RELIABILITY.

Main parameters

max. center distance	mm	1250
max.work swing diameter	mm	180
min.diameter ground	mm	20
max. job weight	Kg	60
max.raise	mm	15
center height	mm	120
working spindle speed	r.p.m.	0~150
headstock, tailstock taper	Morse	4#
wheel size (O.D.)	mm	400
max.wheel velocity	m/s	80
