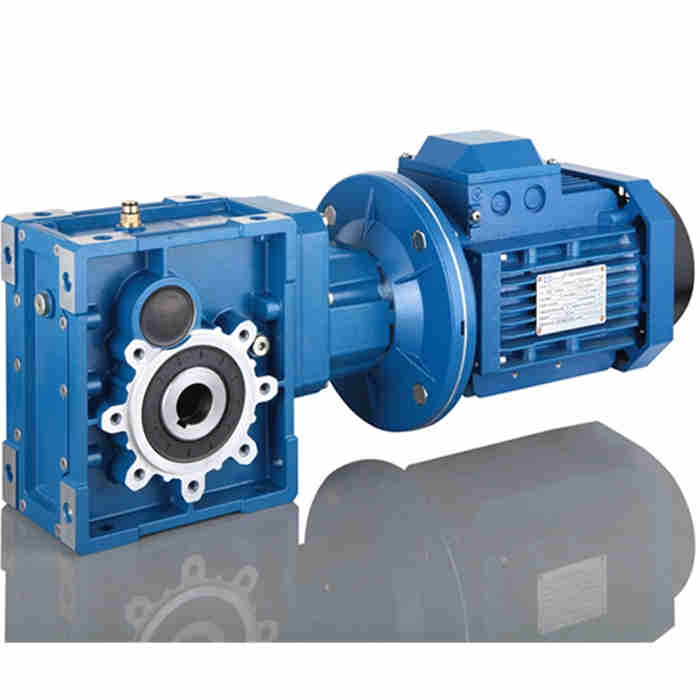

1. Drive by hypoid gear, has big ratios.
2. Large in output torque, high efficiency, energy saving and environmental protection.
3. Made of high quality aluminum alloy, light in weight and non-rusting
4. Smooth in running and low in noise, can work long in dreadful conditions.
5. Good-looking in appearance, durable in service life and small in volume.
6. Suitable for all round installation, wide application and easy of use.
7. The Mounting Dimension of BKM series are compatible with NMRV series worm gear unit (A part of NMRV050 dimensions are different from BKM050)
8. Modular and multi-structure can meet the demands of various conditions.
TYPE | BKM50,BKM63,BKM75,BKM90,BKM110 |
Transmission Stage | B: 2 stages |
C: 3 stages | |
Ratio | B: 7.5,10,12.5,15,20,25,30,40,50,60 |
C: 50,60,75,100,125,150,200,250,300 | |
Output torque | Up to 500N.m |
Motor power | 0.12~5.5KW,with flange:B5 or B14 |
Housing material | Aluminum alloy |
Output shaft | material: 40Cr |
Hardness level: 242-286HB | |
Helical gear | Material:20CrMnTi |
Hardness level: 58-62HRC | |
Precision level:6 grade | |
Transmission efficiency | B:92%-94% |
C:90%-92% | |
Oil seal brand | SKF |
Bearing | C&U |
Lubricant | Mineral oil or synthetic oil |
A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
A:We offer one year warranty since the vessel departure date left China.
