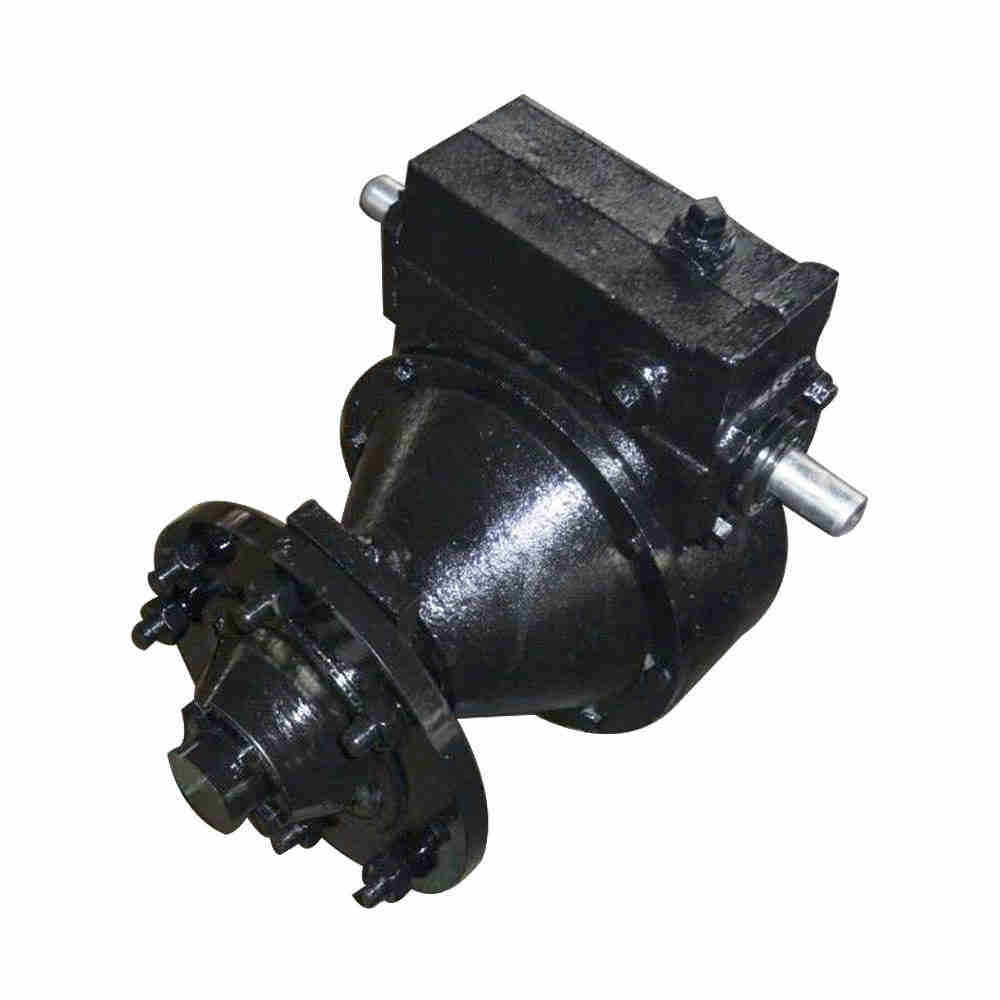

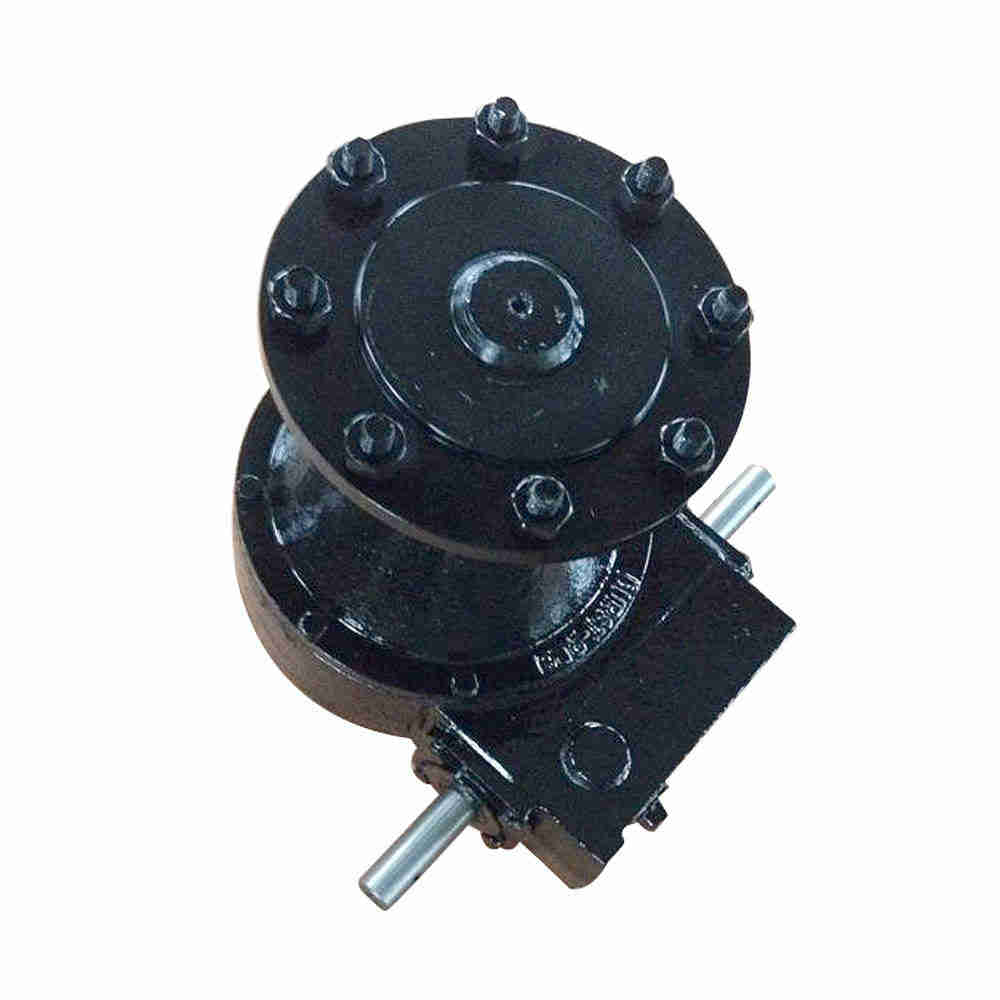

Farm Center Pivot Gear Box Drive Wheel System Sprinkler Irrigation Gearbox for Valley Pivots Replacement Zimmatic UMC

Farm Center Pivot Gear Box Sprinkler Irrigation Drive Wheel System System Gearbox For Valley Pivots Replacement Zimmatic UMCProduct category Irrigation special gearboxInput speed<1500r/min Body materialCast ironInput stylesolid shaftOutput styleHub connecting flangeOther characteristicsirrigate......

Send Inquiry

Product Description

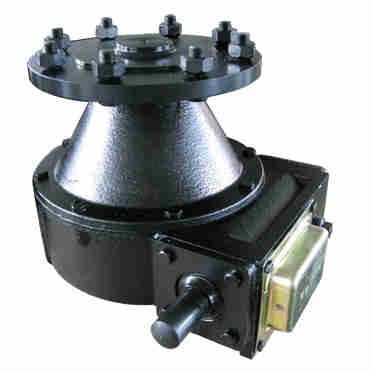

Farm Center Pivot Gear Box Sprinkler Irrigation Drive Wheel System System Gearbox For Valley Pivots Replacement Zimmatic UMC

Product category	Irrigation special gearbox
Input speed	<1500r/min
Body material	Cast iron
Input style	solid shaft
Output style	Hub connecting flange
Other characteristics	irrigate machine gearbox
Shaft orientation	90 degrees vertically
Gear type	Worm gearbox
Fixed way	flange
Ratio	50:1
Out Torque	Standard
Other parameters	Can replace UMC, DURST, ZIMMATIC, Valley gearbox

Let you know what irrigation gearbox is

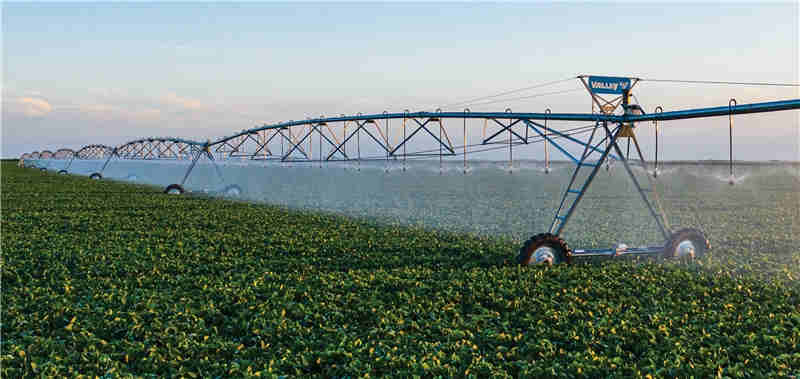

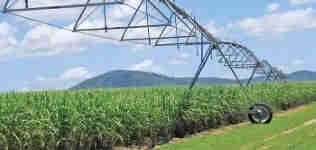

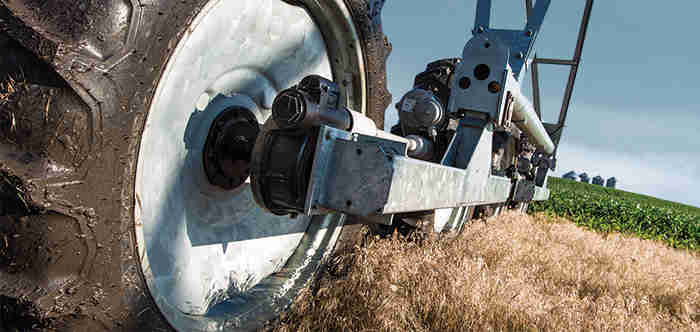

Gearbox for Valley Pivots is a mechanical device installed in center pivot irrigation systems to help drive the movement of the system’s pivot point. It is a critical component of the irrigation system and consists of gears, shafts, bearings, seals, and housing.

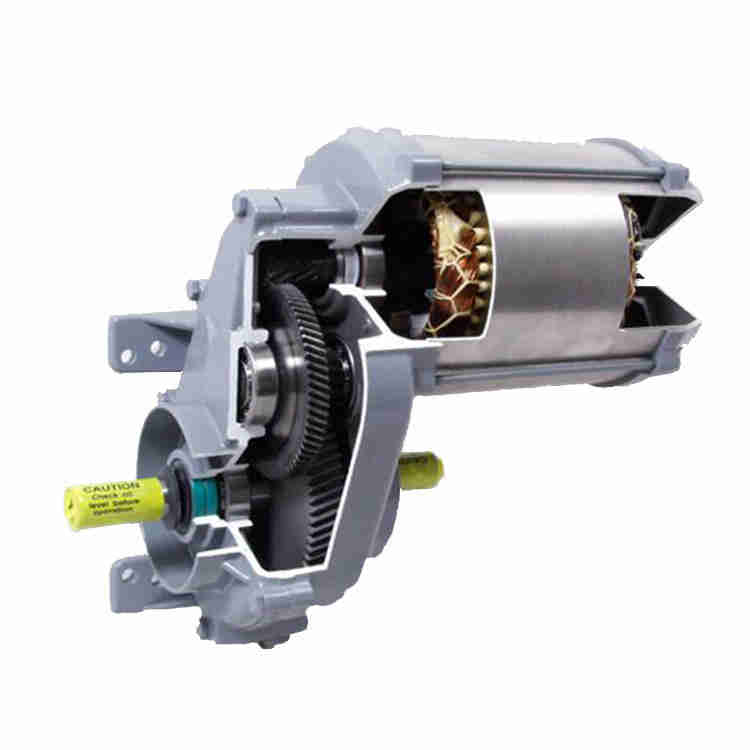

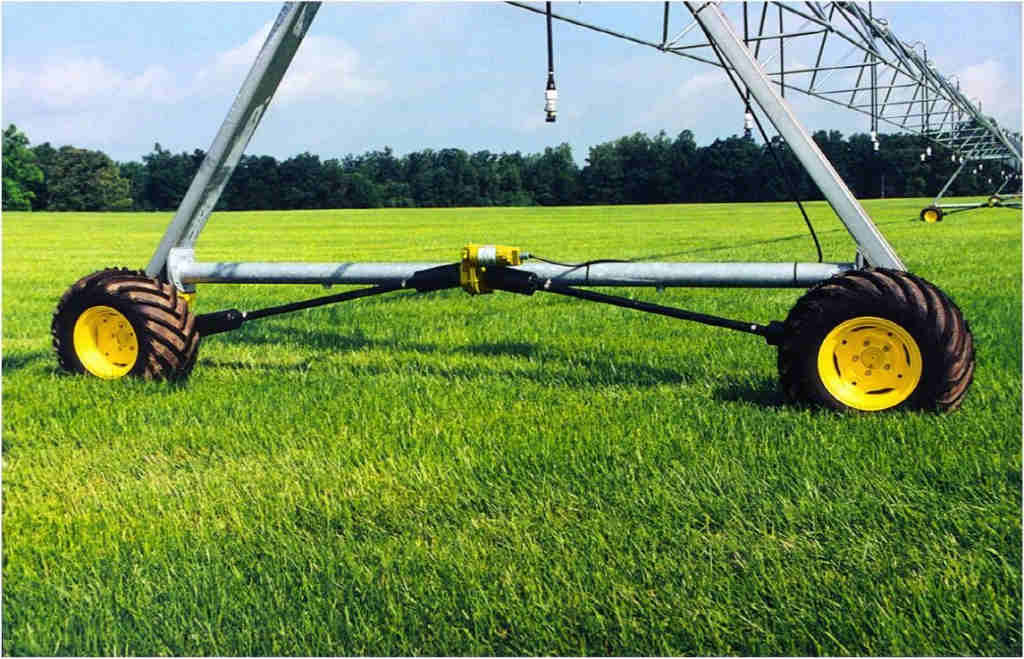

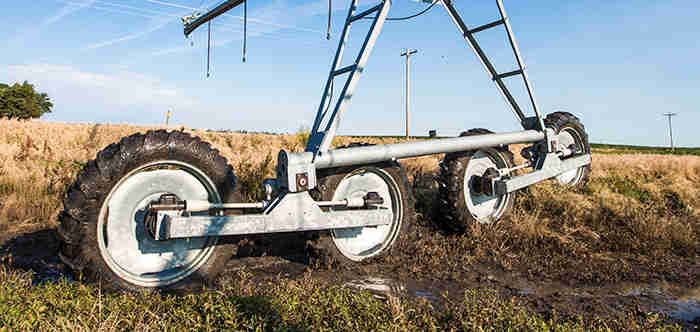

The gearbox helps transfer power from the system's electric motor to the wheels or tires that move the pivot point of the
irrigation system. As the electric motor operates, the gearbox uses gears and shafts to reduce the rotational speed and increase the torque delivered to the wheels or tires. This helps the wheels or tires move the center pivot irrigation system at the required speed to apply water to crops as needed.
Gearbox for Valley Pivots come in various sizes and gear ratios to fit the specific requirements of different irrigation systems. Regular maintenance and inspections of the gearbox are essential to ensure proper functioning and to avoid costly system downtime during critical periods of crop growth.

Input and output bearings: American made and case hardened; Industrys highest load rating for longer life

Gearbox housing: More material in high-stress areas to handle extreme operating conditions
Bronze bull gear option: Provides additional load capabilities with hardened steel worm for extreme operating conditions or extended life under less severe conditions

Large-capacity rubber diaphragm: Expands with heat and pressure to minimize water condensation.
Input and output bearings: American made and case hardened to provide the highest quality and highest load rating available in the industry.
Worm gear: High-strength ductile iron provides significantly longer wear life than steel when combined with a cast iron bull gear.
Tooth design: Industry exclusive 25° tooth angle provides 40% longer life and better reliability in tough conditions compared to normal 14 1/2° tooth designs.
Largest bull gear neck and keyway: For strength in critical load-bearing area.
Expansion chamber: Cap made of corrosion-resistant cast aluminum; rubber diaphragm allows oil to expand and contract during operation. Vented cap prevents pressure buildup and prevents seals from leaking.
Threaded endcap: Allows accurate bearing preload to increase bearing life.
50:1 gear ratio: Fully recessed tooth design keeps oil between engaged gears.
Bull gear: High-strength cast iron provides the highest load capacity and longest life in the industry. Optional bronze gear is available for extreme conditions.
Multi-viscosity gearbox oil: Exceeds 85w140 GL5 oil for long gear wear under extreme load conditions.

How to replace the old center pivot gearbox

Replacing the old center pivot gearbox requires certain mechanical and electrical skills, as well as appropriate tools. The following are the basic steps to replace the old center pivot gearbox: 1.First, turn off all power and water sources of the system and stop the irrigation system. 2.To remove the old gear box, it is usually necessary to remove the wheel, shaft and other drive parts. At the same time, attention should be paid to prevent water from gushing out, and the relevant pipelines should be blocked. 3.Use proper tools to disassemble the old gearbox, disassemble and retain all spare parts for future repair or replacement. 4.Install a new gearbox, which includes reinstalling wheels, shafts and other drive components. During installation, ensure that the seals are intact and firmly installed. 5.Calibrate and test the new gearbox to ensure it works properly. The system power can be turned on, and the central pivot system can be operated through remote control to ensure the correct operation of the new gearbox and coordination with other components of the system. 6.Finally, check all pipelines of the system to ensure that they are correctly reassembled and free of leakage. 7.Please note that these steps are only the basic idea of replacing the central pivot gear box. The specific steps and requirements can vary according to the equipment model, working manufacturer, production date and other factors. It is recommended to read relevant documents, manuals and guides thoroughly before operation, or seek professional maintenance and installation services. In addition, in order to ensure the health of the earth, it is necessary to follow the correct method of handling and recycling old equipment
