Factory Supply Attractive Price Tee Reducer-TR Hydraulic Fitting for Sale for Hydraulic Cylinder Parts

A tee reducer hydraulic fitting is designed to facilitate a connection between three hydraulic components or lines in a teeconfiguration while reducing the size or diameter of one of the connections. It typically has three openings, with one of theopenings being smaller in size than the other two.Ad......

Send Inquiry

Product Description

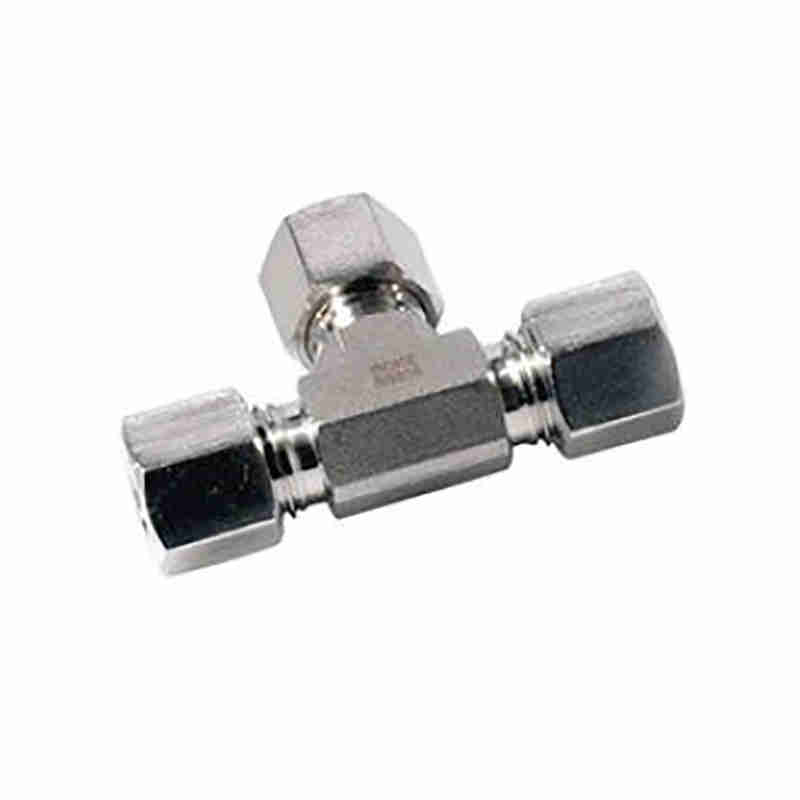

A tee reducer hydraulic fitting is designed to facilitate a connection between three hydraulic components or lines in a tee
configuration while reducing the size or diameter of one of the connections. It typically has three openings, with one of the
openings being smaller in size than the other two.

Advantages of tee reducer hydraulic fittings may include: 1.Connection Flexibility: Tee reducer fittings allow for the connection of three hydraulic components or lines with different sizes or diameters. This versatility enables the integration of different-sized components into a hydraulic system, accommodating variations in equipment requirements and facilitating system customization. 2.Space Efficiency: By incorporating a reduction in size, tee reducer fittings help optimize space utilization within the hydraulic system. This can be particularly beneficial when dealing with limited space or complex routing requirements. 3.Streamlined Flow Distribution: Tee reducer fittings enable the distribution of hydraulic fluid flow between multiple lines or components. They provide a compact and efficient connection point for fluid distribution, allowing for smooth and controlled flow within the system. 4.Easy Installation: Similar to other hydraulic fittings, tee reducer fittings are designed for easy installation. They typically feature threaded connections or other secure attachment mechanisms, simplifying the process of connecting hydraulic lines or components. 5.System Customization: Tee reducer fittings offer flexibility in system design and customization. They allow for the integration of different-sized components or lines, enabling the creation of complex hydraulic systems tailored to specific application requirements. It's important to consult hydraulic fitting catalogs or work with a hydraulic supplier or distributor to identify the specific tee reducer fitting that meets your system requirements. Consider factors such as pressure ratings, material compatibility, thread type, and adherence to industry standards to ensure proper fitting selection and safe operation within your hydraulic system.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
