Factory Directly Wholesale 8V Series Cast Iron Ten-Groove QD Sheaves American Standard Pulley for 8V Belts

8V Series Cast Iron Ten-Groove QD Sheaves for "8V" Belts8V series ten groove QD (quick detachable) bushing pulley is used for 8V and 8V belt. Dimensions range from 12.50 "to 5". 00 "in d" diameter. Depending on the pulley size, they use J, M, N or P QD bushings, which w......

Send Inquiry

Product Description

8V Series Cast Iron Ten-Groove QD Sheaves for "8V" Belts

8V series ten groove QD (quick detachable) bushing pulley is used for 8V and 8V belt. Dimensions range from 12.50 "to 5". 00 "in d" diameter. Depending on the pulley size, they use J, M, N or P QD bushings, which we also have in stock. Our ten groove 8V QD pulleys are mostly made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

Ten-Groove 8V QD Sheave Size Chart

For more details, please click here to contact us!

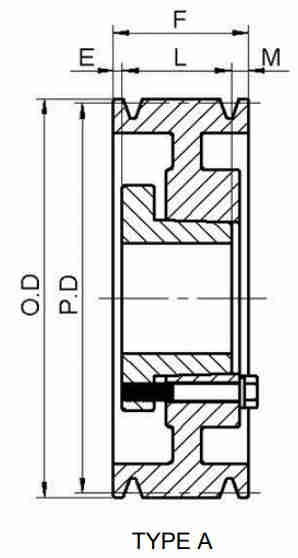

Sheave Size	Bushing	Type	Pitch Diameter (P.D.)	Outside Diameter (O.D.)	(E)	(F)	(L)	(M)	Weight (LBS)
108V1250J	J	A	12.30	12.50	2-1/8"	11-5/8"	4-5/8"	4-7/8"	156
108V1320J	J	A	13.00	13.20	2-1/8"	11-5/8"	4-5/8"	4-7/8"	190
108V1400J	J	A	13.80	14.00	2-1/8"	11-5/8"	4-5/8"	4-7/8"	210
108V1500M	M	A	14.80	15.00	2-11/32"	11-5/8"	6-3/4"	2-17/32"	266
108V1600M	M	A	15.80	16.00	2-11/32"	11-5/8"	6-3/4"	2-17/32"	256
108V1700M	M	A	16.80	17.00	2-11/32"	11-5/8"	6-3/4"	2-17/32"	281
108V1800M	M	A	17.80	18.00	2-11/32"	11-5/8"	6-3/4"	2-17/32"	290
108V1900M	M	A	18.80	19.00	2-11/32"	11-5/8"	6-3/4"	2-17/32"	301
108V2000M	M	A	19.80	20.00	2-11/32"	11-5/8"	6-3/4"	2-17/32"	325
108V2120M	M	A	21.00	21.20	2-11/32"	11-5/8"	6-3/4"	2-17/32"	340
108V2240N	N	A	22.20	22.40	3/16"	11-5/8"	8-1/8"	3-5/16"	365
108V2480N	N	A	24.60	24.80	3/16"	11-5/8"	8-1/8"	3-5/16"	390
108V3000N	N	A	29.80	30.00	3/16"	11-5/8"	8-1/8"	3-5/16"	435
108V3550P	P	A	35.30	35.50	1/4"	11-5/8"	9-3/8"	2"	507
108V4000P	P	A	39.80	40.00	1/4"	11-5/8"	9-3/8"	2"	615
108V4450P	P	A	44.30	44.50	1/4"	11-5/8"	9-3/8"	2"	710
108V5300P	P	A	52.80	53.00	1/4"	11-5/8"	9-3/8"	2"	945

Relevant supporting 8V, 8V belt series V-belt (1) 8V series V-belt Classic 8V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 8V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 8V series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. (2) 8V series ribbon V-belt The 8V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of 8V series v-belt is 1.0 inch.

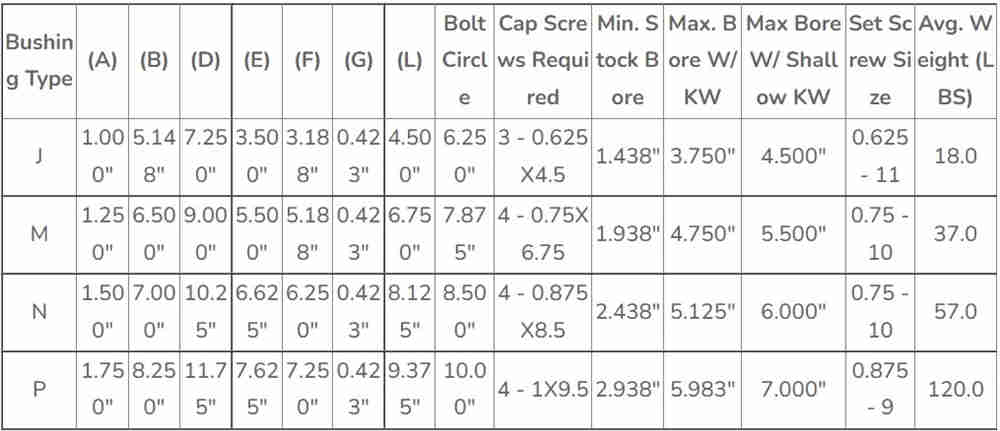

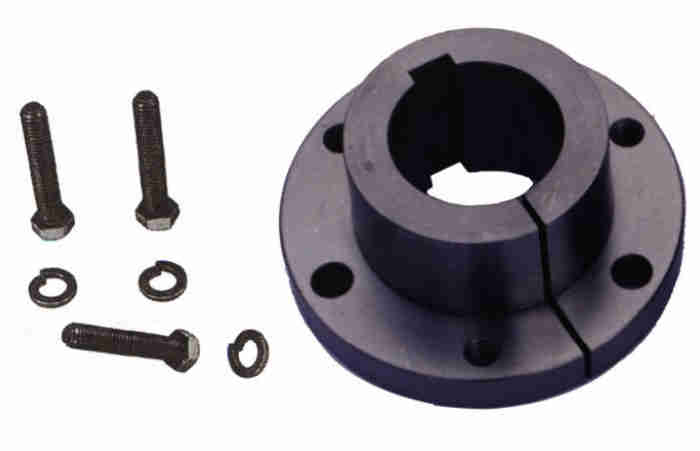

Relevant QD sleeve | quick disconnect sleeve QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.

Installation and removal of pulley 1. Check the pulley groove to ensure that there are no scratches or sharp edges, and all dimensions meet the standards; 2. Clean the surfaces of all parts, such as hub holes, tapered sleeves, bolt holes, etc. Install the tapered sleeve into the pulley and align all screw holes. 3. Coat the screw (TB 1008-TB 3030) and thread (TB 3525-TB 5050) with oil, and screw them into the mounting hole, but do not tighten them. 4. Clean the surface of the drive shaft, push the belt pulley with tapered sleeve to the predetermined position on the shaft, and check whether the V-belt pulley is aligned. 5. When using the keyway, it must be inserted into the hub first, and there must be a certain tolerance between the keyway and the hole hub. 6. Use a hex wrench conforming to DIN911 standard to tighten the bolts in each mounting hole alternately, gradually and evenly until the torque shown in the following table is reached. 7. After a short period of operation (0.5 to 1 hour), check the tightening torque of the bolts and retighten them if necessary. 8. To prevent foreign matters from invading, fill the connecting hole of the hole with grease. disassemble 1. Loosen all bolts, take out one or two bolts according to the number of removal holes, lubricate the bolt type and bolt tip with engine oil, and then insert the bolts into the removal holes. 2. Tighten the bolts alternately until the conical sleeve and pulley are loosened. 3. Remove the tapered sleeve and pulley from the shaft.

What is the purpose of the pulley? Pulleys are not only used in automobiles; It is mainly used for long-distance power transmission. It has many uses, such as the power output of small diesel engines such as tractors and automobiles. It is also used for mechanical transmission, such as processing equipment, textile machinery, lathes and forging presses.

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Our also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
