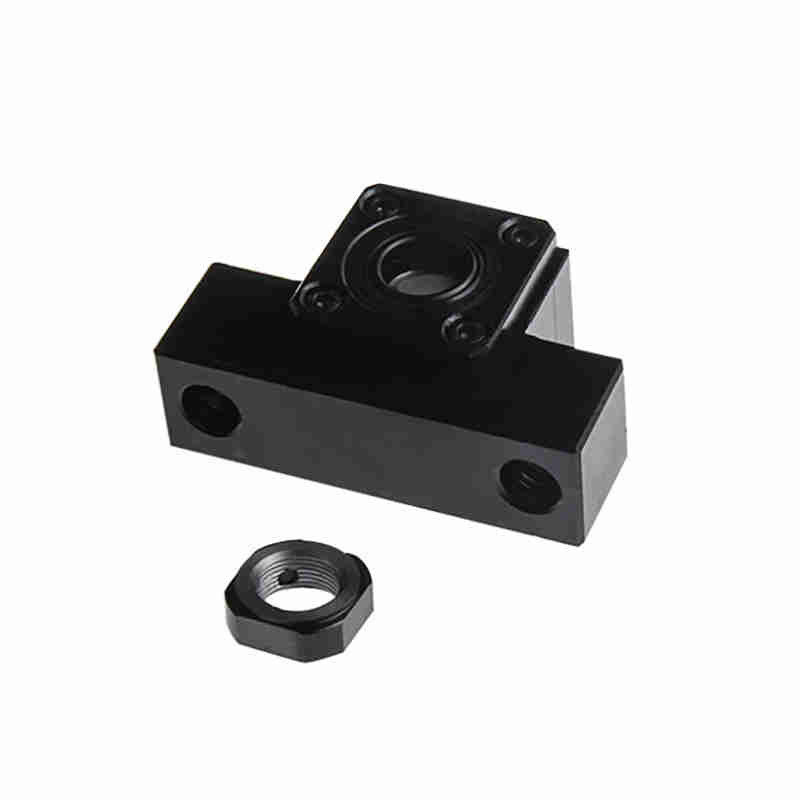

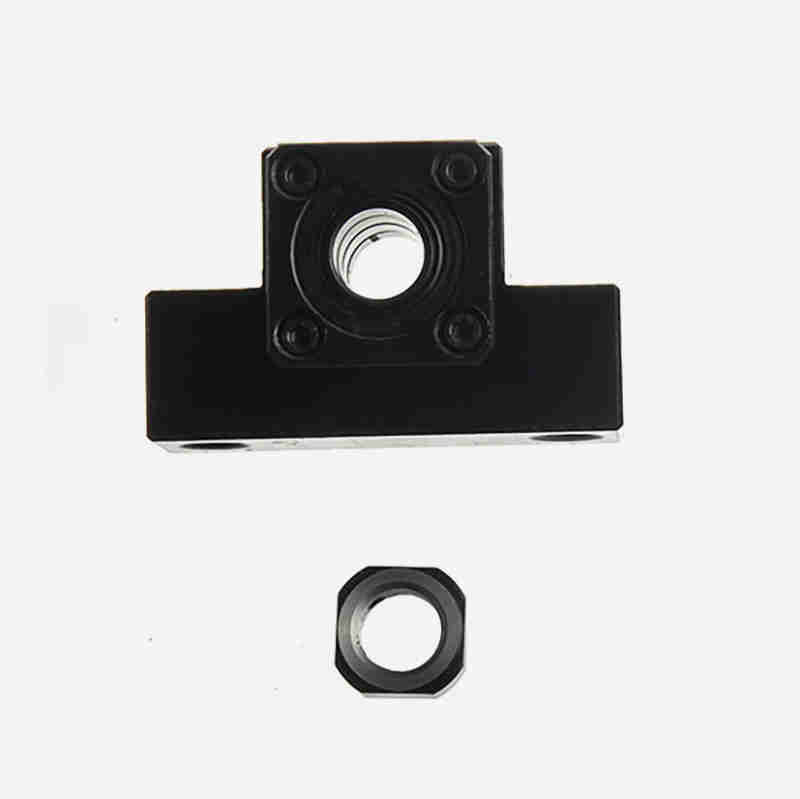

EK Series Flange Nut Mount Ball Screw Bracket of EK5 EK6 EK8 EK10 EK12 EK15 EK20

Stable support, precise positioningBall Screw Brackets are high-quality support components designed specifically for ball screw systems. They are used to fix and support ball screws, ensuring their stability and accuracy in high-precision motion control applications. Suitable for various industrial ......

Send Inquiry

Product Description

Stable support, precise positioning

Ball Screw Brackets are high-quality support components designed specifically for ball screw systems. They are used to fix and support ball screws, ensuring their stability and accuracy in high-precision motion control applications. Suitable for various industrial automation equipment, machine tools, robots, and precision measuring instruments, it is a key component for achieving efficient and reliable transmission.

MOdel No	Dimensions
MOdel No		d1	L	L1	L2	L3	B	H	b+002	h+002
EK 5	5	16.5	5.5	18.5	3.5	36	21	18	11
EK 6	6	20	5.5	22	3.5	42	25	21	13
EK 8	8	23	7	26	4	52	32	26	17
EK 10	10	24	6	29.5	6	70	43	35	25
EK 12	12	24	6	29.5	0	70	43	18	25
EK 15	15	25	6	35	5	80	49	40	30
EK 20	20	42	10	5	10	95	56	47.5	30

Key features

High strength materials: ---Made of high-quality alloy steel or cast iron, it has excellent mechanical strength and durability. ---After heat treatment process, the anti fatigue performance is enhanced and the service life is extended. Precision machining: ---High precision CNC machining ensures consistency in installation hole positions and surface smoothness. ---Precise fit tolerance, providing stable support effect, reducing vibration and noise. Diversified design: ---Multiple models and sizes are available, suitable for ball screws of different diameters and lengths. ---Supports horizontal, vertical, and inclined installation, flexibly adapting to various application scenarios. Easy to install: ---Standardized design, simplified installation process, reduced assembly time and cost. ---Built in lubrication channel for easy maintenance and upkeep, ensuring long-term stable operation. Anti corrosion treatment: ---The surface is treated with electroplating or painting, effectively resisting moisture, chemicals, and other corrosive factors. ---Suitable for harsh environments such as humidity, acidity, and alkalinity, ensuring long-term reliable use.
