Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts

8V Series Cast Iron Eight-Groove QD Sheaves for "8V" Belts8V series 8-groove QD (quick detachable) bushing pulley is applicable to 8V and 8V belt. They range in diameter from 12.50 "to 63.00". Depending on the pulley size, they use J, M, N or P QD bushings, which we also have in ......
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts

8V Series Cast Iron Eight-Groove QD Sheaves for "8V" Belts

8V series 8-groove QD (quick detachable) bushing pulley is applicable to 8V and 8V belt. They range in diameter from 12.50 "to 63.00". Depending on the pulley size, they use J, M, N or P QD bushings, which we also have in stock. Most of our 8-groove 8V QD pulleys are made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

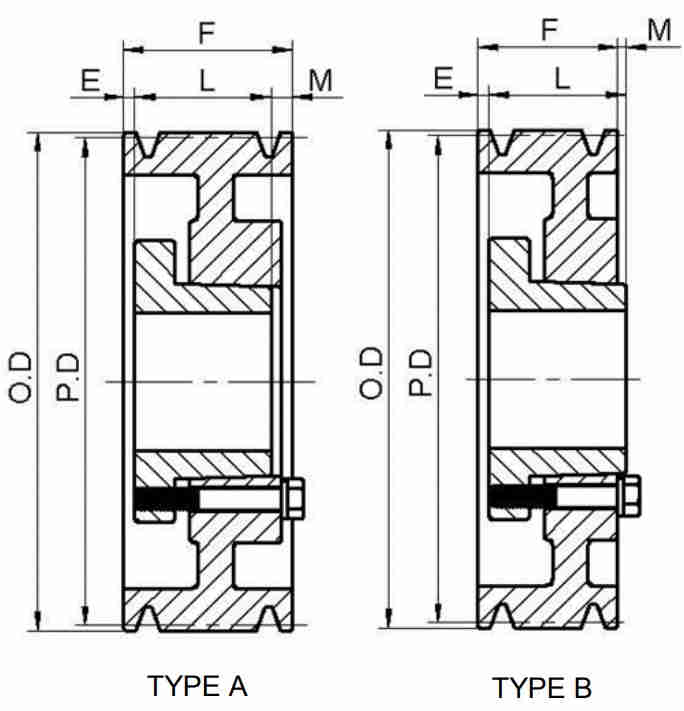

Eight-Groove 8V QD Sheave Size Chart
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts
For more details, please click here to contact us!
Sheave Size
Bushing
Type
Pitch Diameter (P.D.)
Outside Diameter (O.D.)
(E)
(F)
(L)
(M)
Weight (LBS)
88V1250J
J
A
12.30
12.50
2-1/8"
9-3/8"
4-5/8"
2-5/8"
131
88V1320J
J
A
13.00
13.20
2-1/8"
9-3/8"
4-5/8"
2-5/8"
160
88V1400J
J
A
13.80
14.00
2-1/8"
9-3/8"
4-5/8"
2-5/8"
175
88V1500J
J
A
14.80
15.00
2-1/8"
9-3/8"
4-5/8"
2-5/8"
186
88V1600J
J
A
15.80
16.00
2-1/8"
9-3/8"
4-5/8"
2-5/8"
210
88V1700M
M
A
16.80
17.00
2-11/32"
9-3/8"
6-3/4"
9/32"
221
88V1800M
M
A
17.80
18.00
2-11/32"
9-3/8"
6-3/4"
9/32"
235
88V1900M
M
A
18.80
19.00
2-11/32"
9-3/8"
6-3/4"
9/32"
250
88V2000M
M
A
19.80
20.00
2-11/32"
9-3/8"
6-3/4"
9/32"
265
88V2120M
M
A
21.00
21.20
2-11/32"
9-3/8"
6-3/4"
9/32"
280
88V2240M
M
A
22.20
22.40
2-11/32"
9-3/8"
6-3/4"
9/32"
295
88V2480N
N
A
24.60
24.80
3/16"
9-3/8"
8-1/8"
1-1/16"
320
88V3000N
N
A
29.80
30.00
3/16"
9-3/8"
8-1/2"
1-1/16"
375
88V3550N
N
A
35.30
35.50
3/16"
9-3/8"
8-1/8"
1-1/16"
442
88V4000N
N
A
39.80
40.00
3/16"
9-3/8"
8-1/8"
1-1/16"
530
88V4450P
P
B
44.30
44.50
1/4"
9-3/8"
9-3/8"
1/4"
610
88V5300P
P
B
52.80
53.00
1/4"
9-3/8"
9-3/8"
1/4"
795
88V6300P
P
B
62.80
63.00
1/4"
9-3/8"
9-3/8"
1/4"
995
Relevant supporting 8V, 8V belt series V-belt (1) 8V series V-belt Classic 8V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 8V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 8V series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability.
(2) 8V series ribbon V-belt The 8V series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of 8V series v-belt is 1.0 inch.

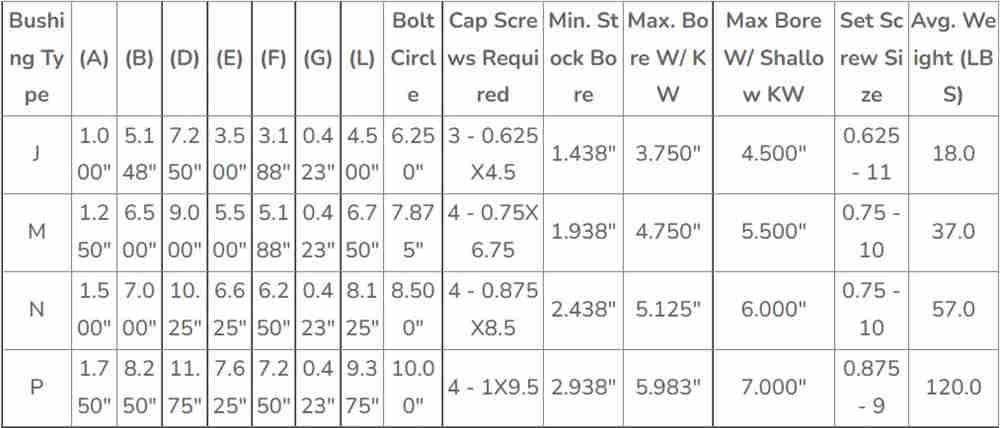

Relevant QD sleeve | quick disconnect sleeve QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts
Check the pulley every day to see what can be done in these three aspects The pulley is a worn part, which often shakes and slips during long-term operation. If the belt pulley is not checked regularly, the machine will also be damaged for a long time, and may be directly damaged in serious cases. Therefore, in daily use, we should check the pulley regularly. What aspects of pulleys should be reviewed? Check the following three aspects of the v-belt pulley every day: 1. Pulley surface: all standard pulleys shall be weighed according to the standard. If there are bumps on the pulley surface, observe whether the pulley shakes during operation. If vibration occurs, the pulley must be replaced in time. 2. Belt pulley: The belt pulley is driven by the belt, so we also need to check the belt regularly. After installation, we should first observe the tightness of the belt. If the building is too tight, the speed of the pulley will be affected. In severe cases, the motor shaft may be worn. If the installation is too loose, it may reduce the working efficiency of the machine and cause slipping. If the belt is aged and the tension is low, we need to replace the belt in time.
3. Belt pulley mounting hole: the mounting hole of the belt pulley is in direct contact with the motor shaft, which is also an important part to determine whether the machine can operate. We need to regularly observe whether the mounting hole is clean and whether there are impurities in it. Because contaminants may damage the mounting hole, if the mounting hole is damaged, the pulley will not be used.
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts
What is the purpose of the pulley? The pulley is a hub type part. Generally, the relative size is relatively large. The manufacturing process is usually based on casting and forging. Use less cast steel (poor performance of cast steel); Generally, smaller dimensions can be designed for development, and the material is steel). Pulleys are not only used in automobiles; It is mainly used for long-distance power transmission. It has many uses, such as the power output of small diesel engines such as tractors and automobiles. It is also used for mechanical transmission, such as processing equipment, textile machinery, lathes and forging presses.
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts
Technological Processing
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Economical Custom Design 8V Series Cast Iron Eight-Groove QD Sheaves American Standard Pulley for 8V Belts
Our also provides belts matching pulleys:https://planetarygearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
