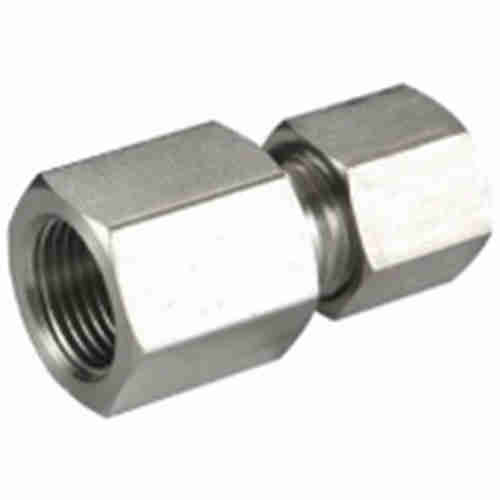

Product Description

The BSPP Pressure Gauge Connector refers to a type of connector used for attaching pressure gauges to systems with BSPP (British Standard Pipe Parallel) threaded ports. BSPP is a commonly used thread standard in Europe and some other regions. The BSPP Pressure Gauge Connector typically consists of a male connector with BSPP threads on one end and a female connector with a compatible thread on the other end. This allows the pressure gauge to be securely connected to the system, providing accurate pressure readings. When using a BSPP Pressure Gauge Connector, it is important to ensure that the thread sizes and configurations match between the connector and the system's ports. Proper sealing techniques, such as the use of thread sealant or sealing washers, may also be required to prevent leaks and ensure reliable pressure measurements. It's worth noting that BSPP is similar to, but not interchangeable with, other thread standards such as NPT (National Pipe Thread) or BSP (British Standard Pipe). Therefore, it is essential to verify the thread type and size to ensure compatibility when selecting a BSPP Pressure Gauge Connector.

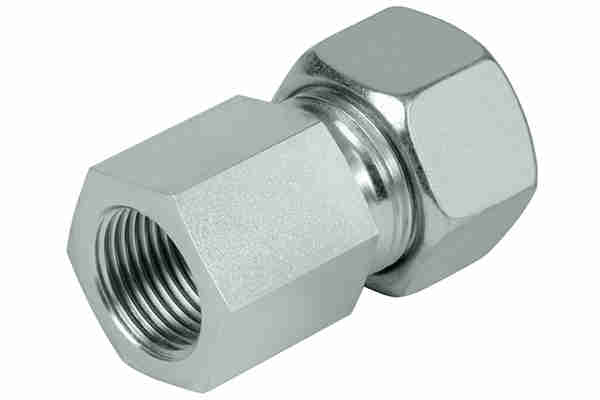

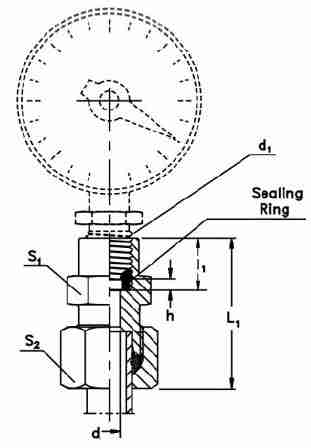

MAV Part no.	Series Working Pressure (bar/psi)	Tube o.d.	d1 BSPP thread	d	h	l1	L1	S1	S2
-MAV04LLR	LL very light 100 bar 1450 psi	4	G 1/4	2.5	4.5	14.5	33	19	10
-MAV06LR	L	6	G 1/4	2.5	4.5	14.5	37	19	14
-MAV08LR	light	8	G 1/4	5.5	4.5	14.5	37	19	17
-MAV10LR	315 bar	10	G 1/4	5.5	4.5	14.5	38	19	19
-MAV12LR	4560 psi	12	G 1/4	5.5	4.5	14.5	38	19	22
-MAV06SR	S	6	G 1/2	3.5	5	20	46	27	17
-MAV08SR	heavy	8	G 1/2	3.5	5	20	46	27	19
-MAV10SR	630 bar	10	G 1/2	7.5	5	20	47	27	22
-MAV12SR	9130 psi	12	G 1/2	7.5	5	20	47	27	24

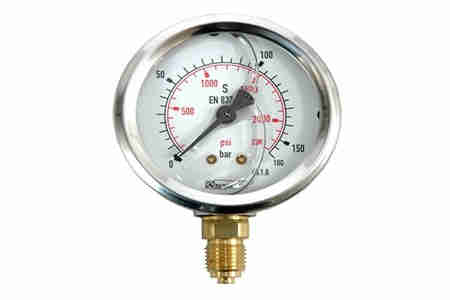

Application of BSPP Pressure Gauge Connector hydraulic fittings BSPP (British Standard Pipe Parallel) pressure gauge connectors are hydraulic fittings designed to connect pressure gauges to hydraulic systems. These fittings ensure a secure and leak-free connection between the pressure gauge and the hydraulic system. Here are some common applications of BSPP pressure gauge connector hydraulic fittings: 1. Hydraulic Systems Monitoring: Pressure gauges are essential for monitoring the pressure levels within hydraulic systems. BSPP pressure gauge connectors enable the connection of pressure gauges to various components of hydraulic systems, such as pumps, cylinders, valves, and accumulators. This allows operators to monitor and adjust the system's pressure to ensure optimal performance and prevent damage or malfunctions. 2. Industrial Machinery: BSPP pressure gauge connectors are widely used in various industrial machinery applications that rely on hydraulic systems. This includes machinery in sectors such as manufacturing, construction, mining, agriculture, and transportation. Pressure gauges connected through BSPP fittings provide real-time pressure readings, allowing operators to maintain safe operating conditions and troubleshoot any potential issues. 3. Process Control Systems: Many process control systems, such as those found in chemical plants, power generation facilities, and oil refineries, rely on hydraulic systems. BSPP pressure gauge connectors enable the integration of pressure gauges into these systems, providing critical pressure monitoring for maintaining process efficiency, safety, and compliance with industry regulations. 4. Mobile Equipment: Mobile equipment, such as hydraulic excavators, loaders, cranes, and agricultural machinery, often utilize hydraulic systems to perform various tasks. BSPP pressure gauge connectors allow for the installation of pressure gauges on these mobile machines, facilitating on-site pressure monitoring and troubleshooting to ensure reliable and efficient operation. 5. Test and Measurement Applications: BSPP pressure gauge connectors are also used in test and measurement applications where hydraulic pressure needs to be accurately measured and recorded. These can include hydraulic testing equipment, laboratory setups, research facilities, and quality control processes. BSPP pressure gauge connector hydraulic fittings are available in various sizes and configurations to accommodate different pressure gauge and hydraulic system requirements. When using these fittings, it is crucial to follow proper installation procedures, including the use of appropriate sealing materials and tightening techniques, to ensure a reliable and leak-free connection. It is important to consult the manufacturer's guidelines and specifications for the specific application and system requirements to ensure the correct selection and usage of BSPP pressure gauge connector hydraulic fittings.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
