ANSI Standard Bent K-1 B-2 Attachment One Hole Two Sides Roller Chain

STANDARD BENT - TWO SIDES K-1, (B-2) One Hole Two Sides**Extensions are staggered on chains 100 through 160. *Chain is rollerless. Special tab holes available upon request. All Allied-Locke attachment chains are available in corrosion resistant fifinishes: Nickel Plate, Armor Coat, 304 & 600 (PH......

Send Inquiry

Product Description

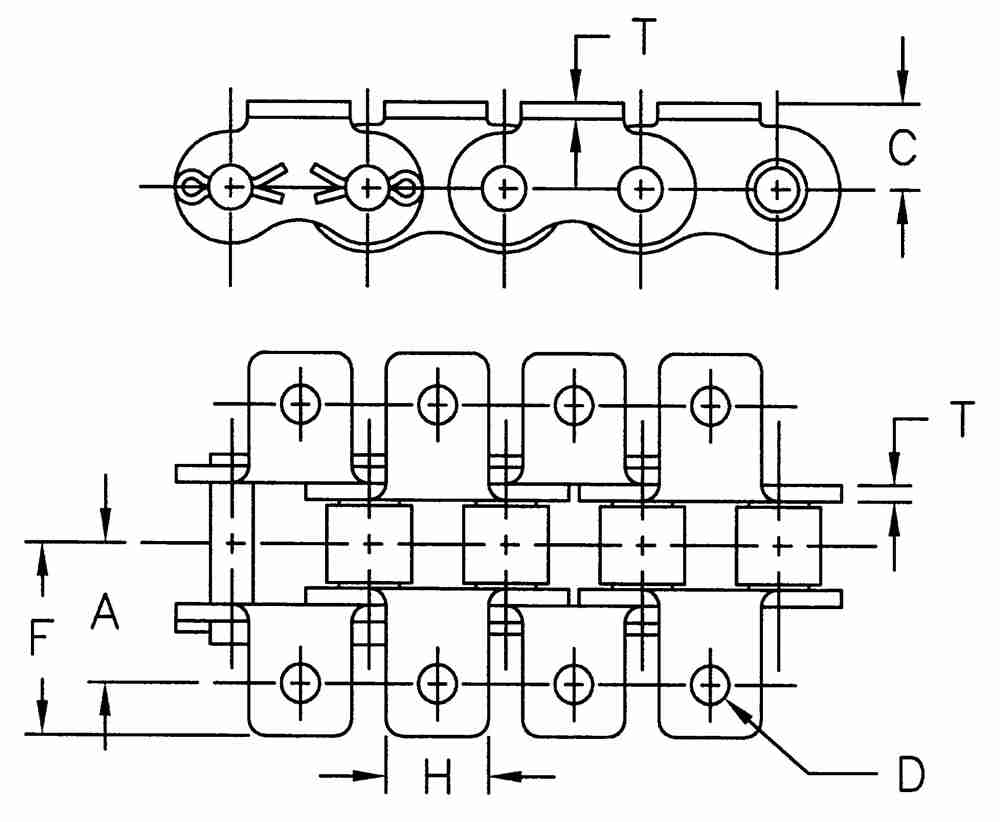

STANDARD BENT - TWO SIDES
K-1, (B-2) One Hole Two Sides

**Extensions are staggered on chains 100 through 160.
*Chain is rollerless.
Special tab holes available upon request.
All Allied-Locke attachment chains are available in corrosion resistant fifinishes: Nickel Plate, Armor Coat,
304 & 600 (PHSS) Stainless Steel.

ANSI Chain No.	Pitch	K-1			From Top to Pin C.L.	Hole Dia.	Attach Extension Width	Thickness
ANSI Chain No.	Pitch			From C.L. to Chain C.L.	From Top to Pin C.L.	Hole Dia.	Attach Extension Width	Thickness	From End to Chain C.L.
	P	A	F	C	D	H	T
35*	. 375	.375	.516	.250	.109	.312	.050
40	. 500	.500	.688	.312	.140	.375	.058
50	. 625	.625	.969	.406	.203	.562	.079
60	. 750	.750	1.094	.469	.203	.625	.093
80	1 . 000	1.000	1.548	.625	.265	.750	.125
100**	1 . 250	1.250	1.694	.781	.328	1.000	.157
120**	1 . 500	1.501	2.088	.906	.390	1.126	.189
140**	1 . 750	1.750	2.437	1.125	.448	1.375	.218
160**	2 . 000	2.000	2.812	1.250	.516	1.500	.250
