Product Description

5C Series Cast Iron QD Sheaves for "C" Belts

5C series five groove QD bushing pulley is used for C, CX, belt and CC v-belt; Their diameters range from 6.40 inches to 50.40 inches. Depending on the pulley size, they use SF, E, F or J QD (quick disassembly) bushings, which we also have in stock. Most of our 5C QD pulleys are made of high strength grade 35 cast iron, coated with phosphate and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

5C QD Sheave Size Chart

For more details, please click here to contact us!

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
5C60SF	SF	A	6.0"	6.40"	1-1/32"	5-1/4"	2-1/16"	2-5/32"	21
5C70SF	SF	A	7.0"	7.40"	1-1/32"	5-1/4"	2-1/16"	2-5/32"	26
5C75SF	SF	A	7.5"	7.90"	1-1/32"	5-1/4"	2-1/16"	2-5/32"	28
5C80E	E	A	8.0"	8.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32."	33
5C85E	E	A	8.5"	8.90"	1-5/32"	5-1/4"	2-3/4"	1-11/32."	37
5C90E	E	A	9.0"	9.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32."	40
5C95E	E	A	9.5"	9.90"	1-5/32"	5-1/4"	2-3/4"	1-11/32."	42
5C100E	E	A	10.0"	10.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32."	45
5C105E	E	A	10.5"	10.90"	1-5/32"	5-1/4"	2-3/4"	1-11/32."	47
5C110E	E	A	11.0"	11.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32"	50
5C120E	E	A	12.0"	12.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32"	53
5C130E	E	A	13.0"	13.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32"	58
5C140E	E	A	14.0"	14.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32"	64
5C160E	E	A	16.0"	16.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32"	73
5C180E	E	A	18.0"	18.40"	1-5/32"	5-1/4"	2-3/4"	1-11/32"	85
5C200F	F	D	20.0"	20.40"	3/32"	5-1/4"	3-3/4"	1-19/32"	98
5C240F	F	D	24.0"	24.40"	3/32"	5-1/4"	3-3/4"	1-19/32"	119
5C270F	F	D	27.0"	27.40"	3/32"	5-1/4"	3-3/4"	1-19/32"	153
5C300F	F	D	30.0"	30.40"	3/32"	5-1/4"	3-3/4"	1-19/32"	174
5C360J	J	A	36.0"	36.40"	1/16"	5-1/4"	4-5/8"	9/16"	206
5C440J	J	A	44.0"	44.40"	1/16"	5-1/4"	4-5/8"	9/16"	254
5C500J	J	A	50.0"	50.40"	1/16"	5-1/4"	4-5/8"	9/16"	274

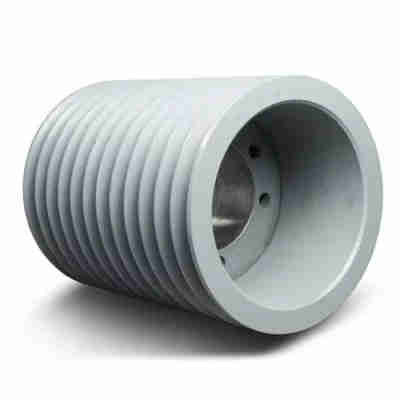

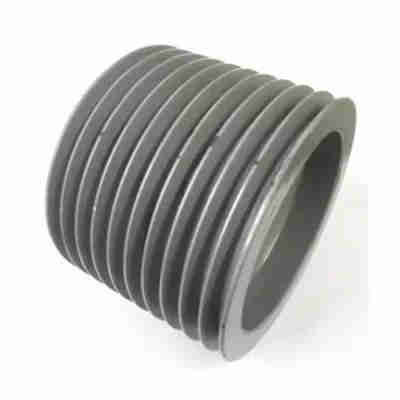

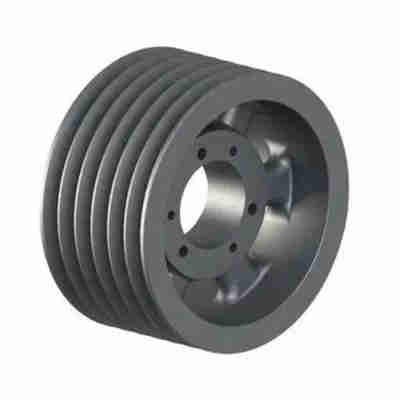

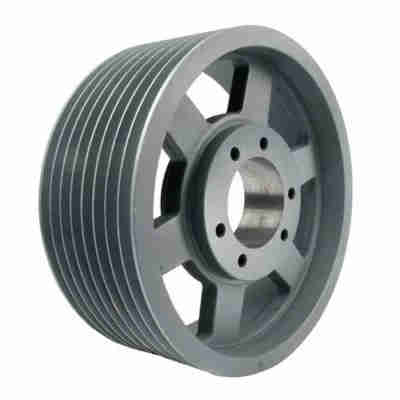

American Stanard V-pulley - C series American standard pulley is manufactured according to American ANSI standard. The main material is gray cast iron, which is suitable for 2L, 3L, 4L, 5L, A, B, C, D, 3V, 5V, 8V belts, J, L and M ribbed belts. American standard pulley product types: AK, BK, TA, TB, TC, B, C, D, 3V, 5V, 8V, J, L, M, VP, VL, VM. Tapered bushing pulleys are used with STB, QD, or TB tapered bushings.

How to select the correct V-pulley? In the power transmission and automotive industry, one of the most widely used and growing product types is V-belt pulley, also known as "pulley". V-belt pulley is an accessory that transfers energy between axles by means of V-belt. However, in order to keep this vital equipment working properly, when the old V-pulley is worn, it must be ensured that the appropriate V-pulley is replaced. It is a simple task to learn to measure the size of V-belt pulley and calculate its size; However, correctly identifying the V-pulley type can be complex. To do this, you need to know the dimensions, measurements and types of the V-pulley so that the replacement pulley can work properly. V-pulleys are available in a variety of styles and options, including A, B, C, D, 3V, 5V, 8V, variable pitch, double groove, and metric pulleys. We only stock more than 8000 different V-pulleys.

Related Products

We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
