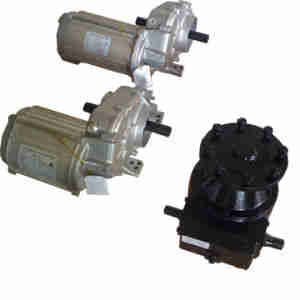

Agricultural Farm Worm Wheel Drive Gearbox Helical Center Gearmotor Reducer for Valley Center Pivot Irrigation System Zimmatic

Wheel Drive Gearbox▍Expand under high temperature and pressure to minimize water condensation. ▍American made and case hardened input and output bearings provide the highest quality and load rating in the industry.▍Worm gear high strength ductile iron provides longer wear life than steel when combin......

Send Inquiry

Product Description

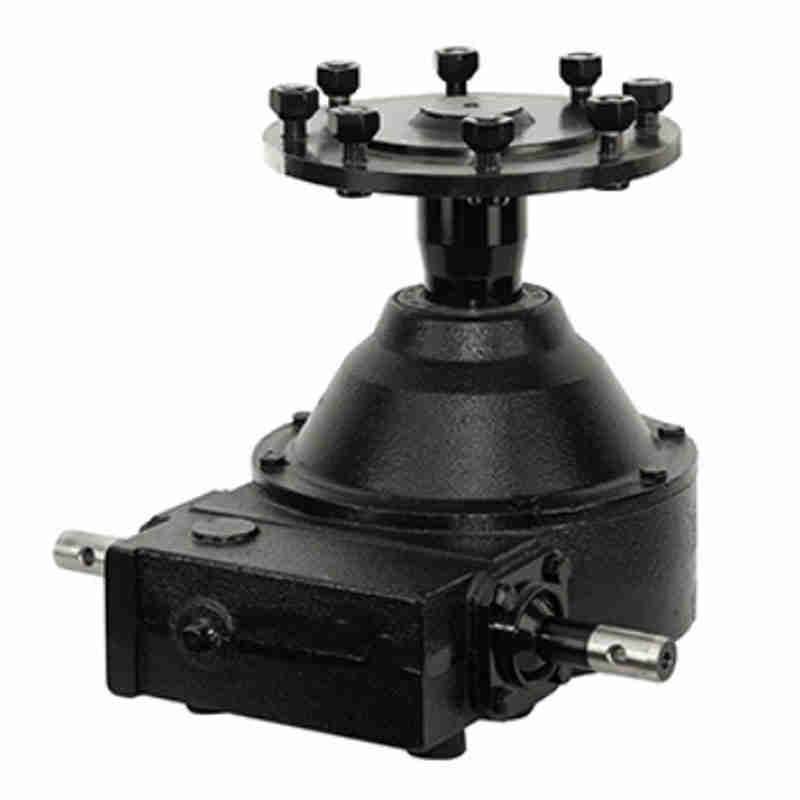

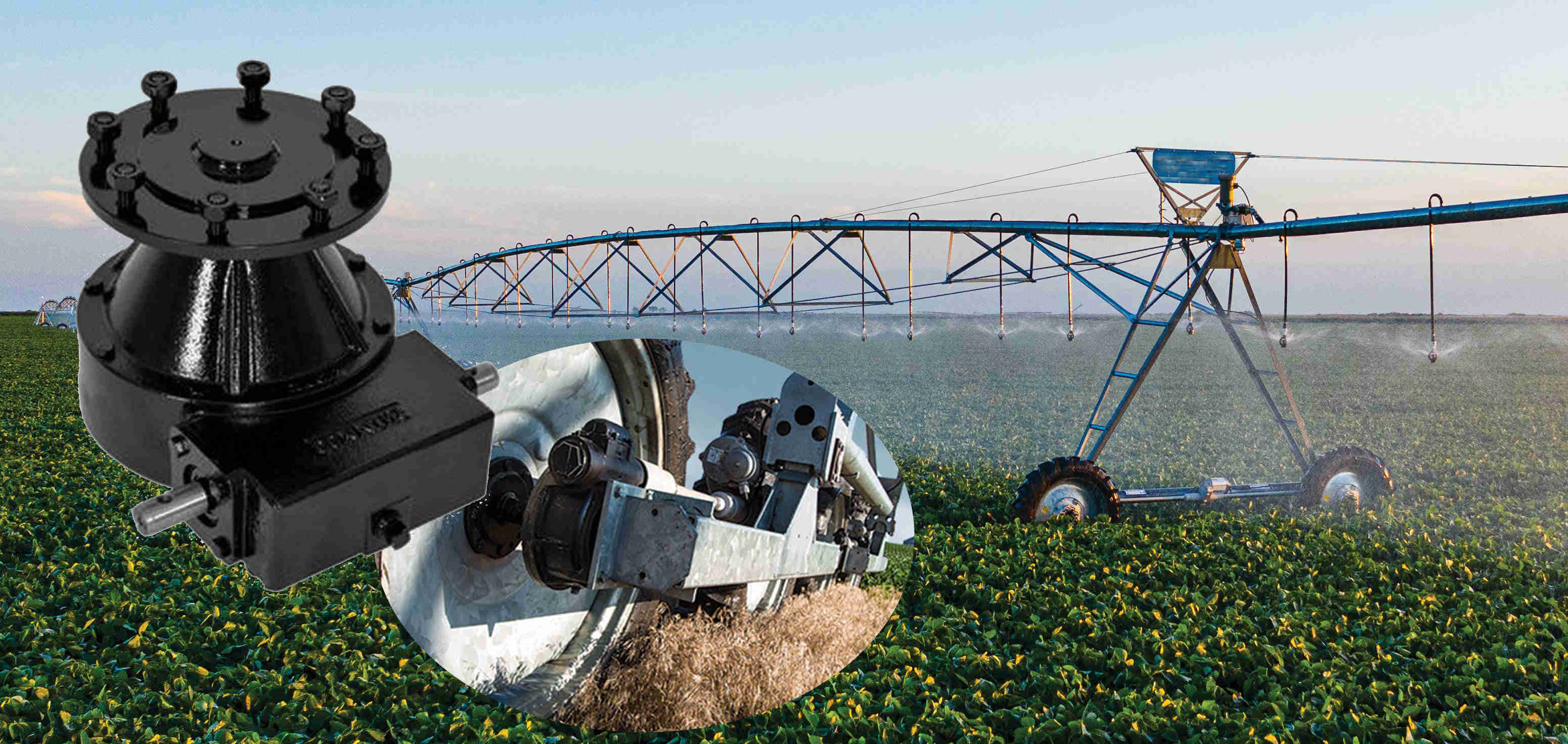

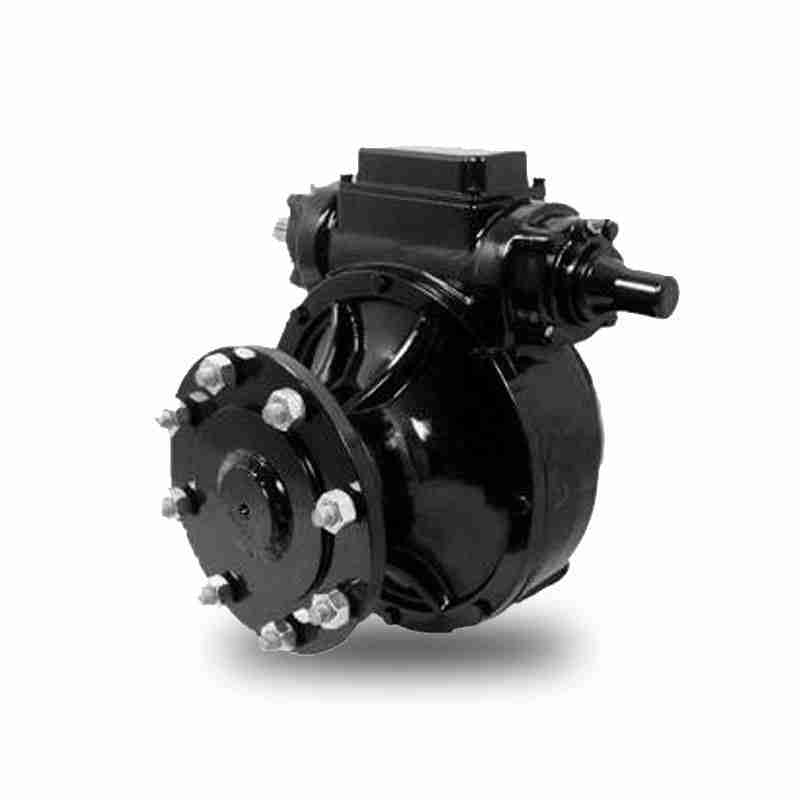

Wheel Drive Gearbox

▍Expand under high temperature and pressure to minimize water condensation.

▍American made and case hardened input and output bearings provide the highest quality and load rating in the industry.
▍Worm gear high strength ductile iron provides longer wear life than steel when combined with cast iron gear.
▍Compared with the normal 14 1/2 ° tooth design, the unique 25 ° tooth angle in the tooth design industry provides 40% longer life and better reliability under adverse conditions.
▍The largest large gear journal and keyway provide strength in the critical load-bearing area.
▍The expansion chamber cover is made of corrosion-resistant cast aluminum; The rubber diaphragm allows the oil to expand and contract during operation. The vent cap prevents pressure build-up and seals from leaking.
▍Threaded end caps allow precise bearing preload to extend bearing life.
▍52:1 transmission ratio full concave tooth design keeps the meshing gears lubricated.
▍High strength cast iron for large gears provides the highest bearing capacity and longest service life in the industry. Optional bronze gears are available for extreme conditions.
▍Multi viscosity gearbox oil exceeds 85w140 Gl5 oil, which is suitable for long gear wear under extreme load conditions.

Model	Ratio	Shaft Size	Weight	Torque
W7824	50:1	2.25"	50	7909Nm
W7786	52:1	2.25"	53	7909Nm
W7967	50:1	2.25"	55	7909Nm
W7826	52:1	2.25"	60	7909Nm
W7939	50:1	2.25"	53	7909Nm
W7939T	50:1	2.25"	60	7909Nm
W725U	50:1	2.25"	50	7909Nm
W8760	50:1	2.25"	79	10170Nm
W740U	50:1	2.25"	51	7909Nm
W740UV	52:1	2.25"	54	7909Nm
TNT2U	50:1	2.25"	55	7909Nm
TNT2UV	52:1	2.25"	57	10170Nm

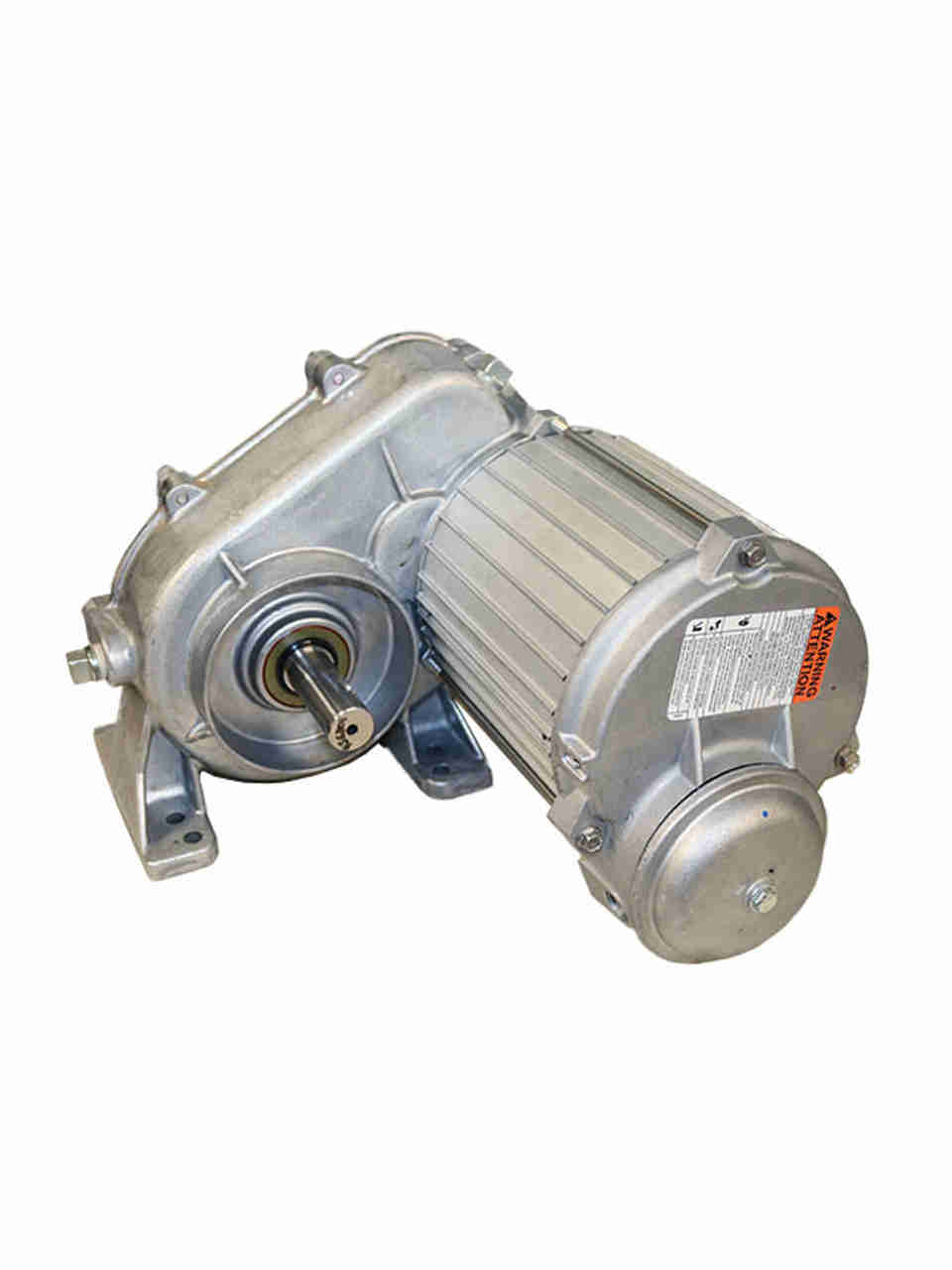

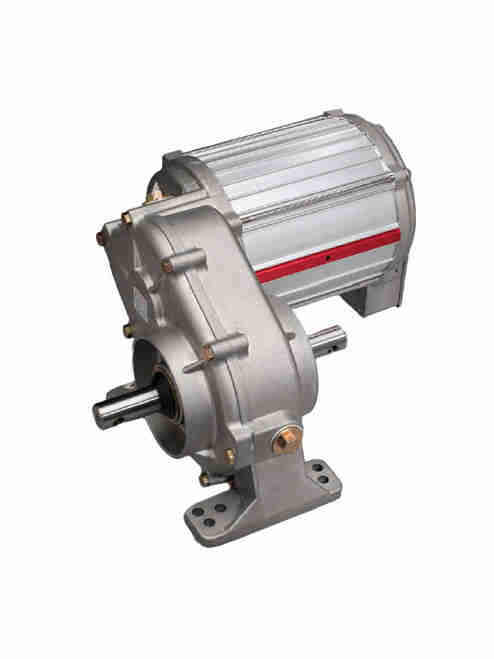

Helical Center Drive Gearmotors

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

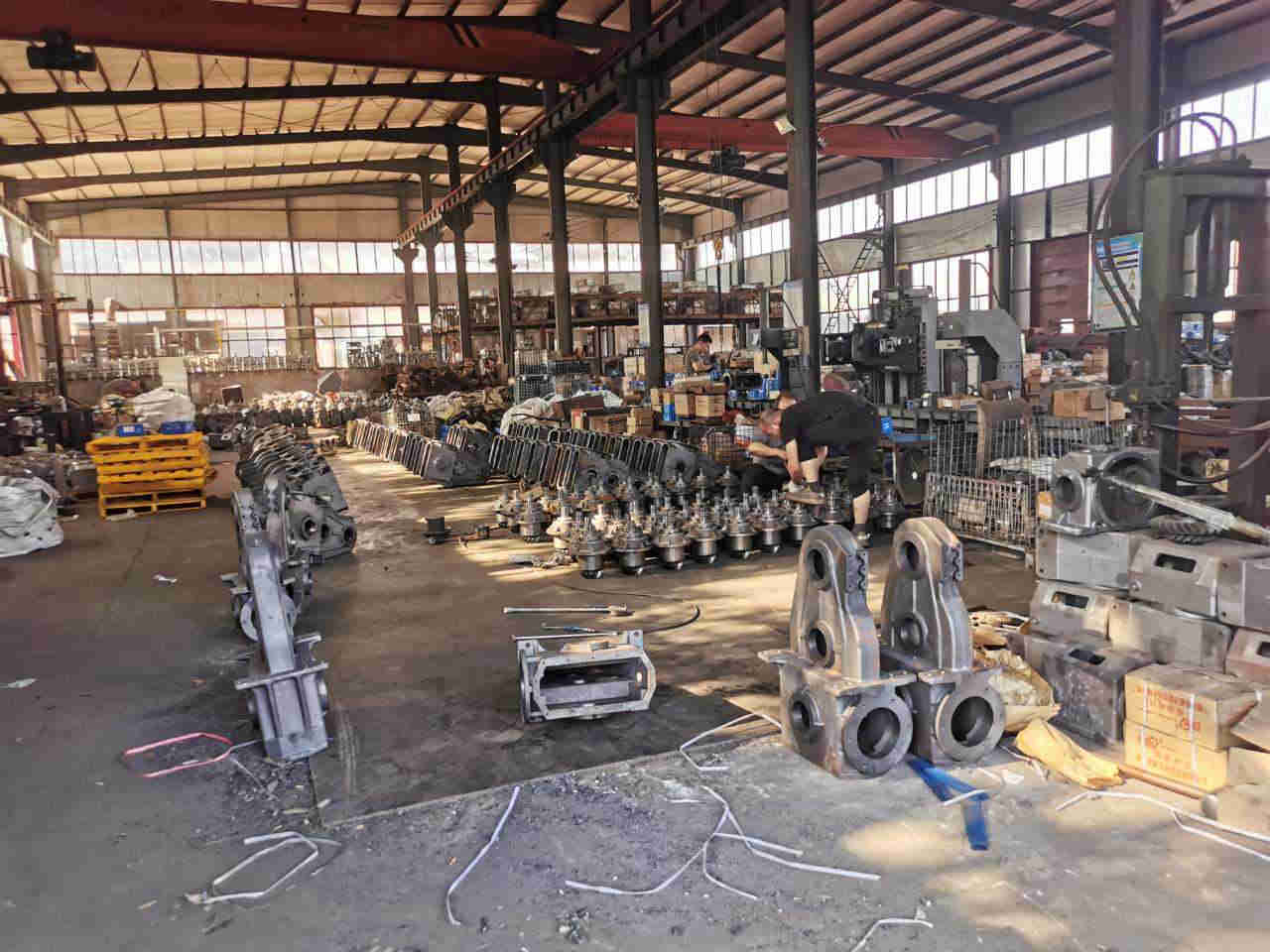

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

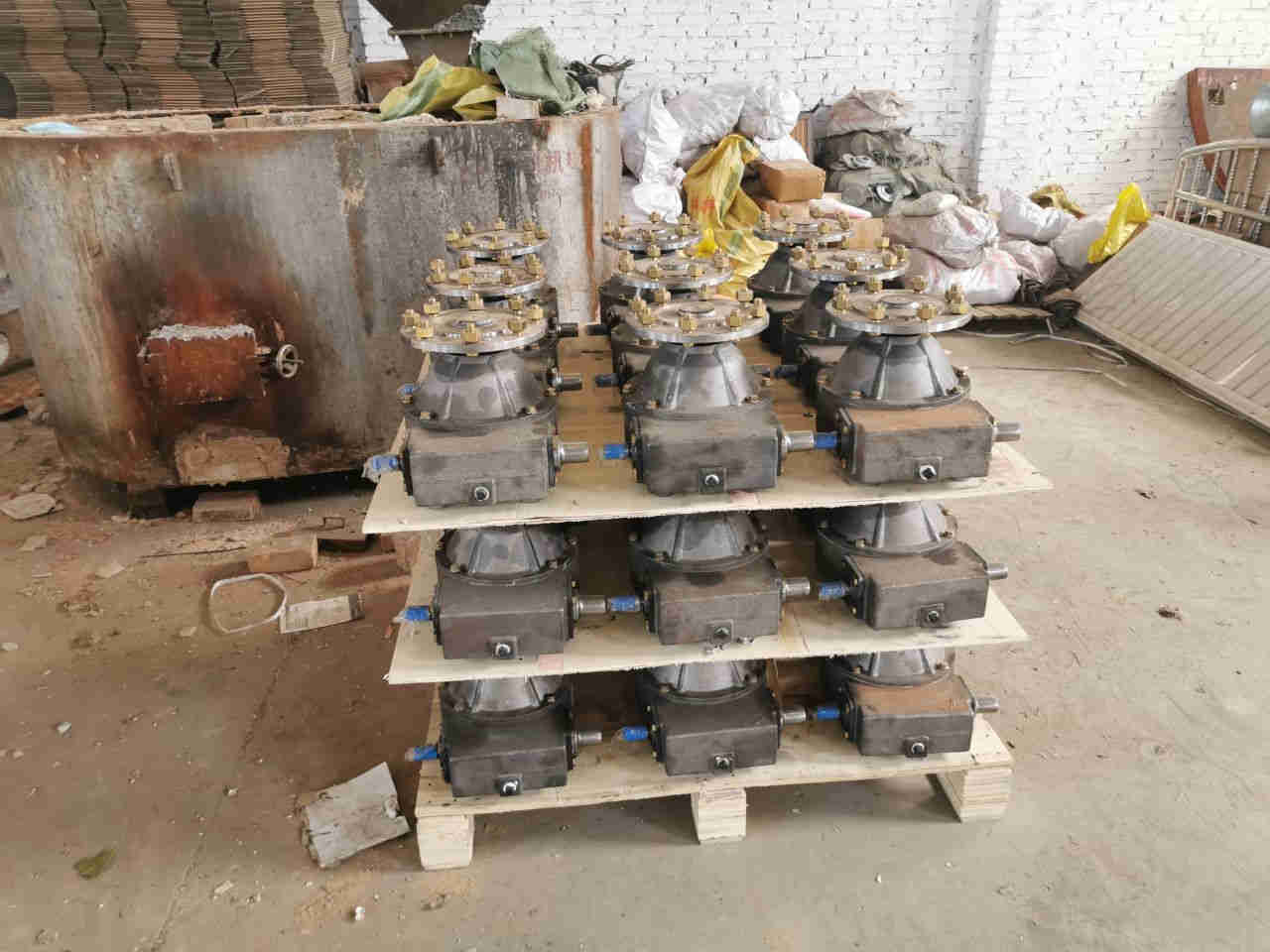

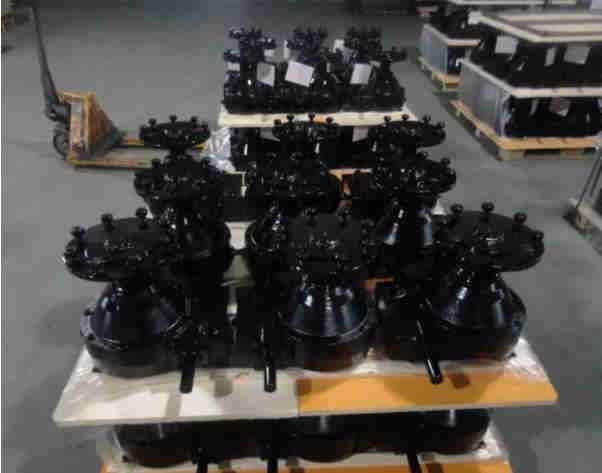

Packaging
Size	120 (L) * 100 (W) * 700 (D)
Weight	0.8 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

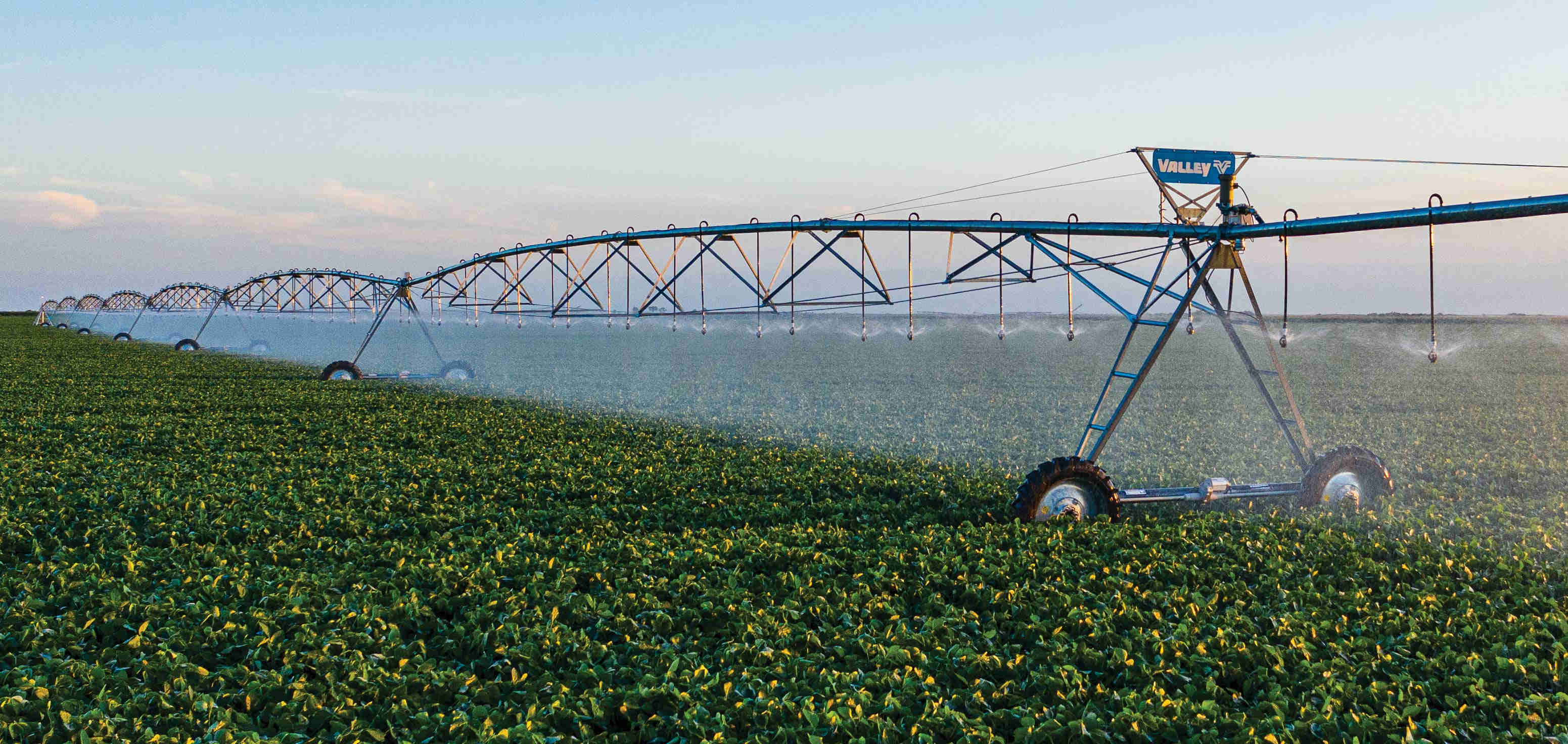

We can assist with new and used center pivot and lateral movement irrigators. We are the leading pivot irrigation manufacturer in Australia, with aluminum center pivots. We are also a supplier of central pivot irrigation parts, ranging from span parts to Valley pivots suitable for use, Reinke pivots used, Lyndsay pivots used, TL systems used, and more. If someone is looking for a cost-effective option for pivot irrigation parts and maintenance, farm irrigation systems, then we can help our customers save money.
