What is a square baler gearbox?A square baler gearbox is a component of a square baler, which is an agricultural machine used to compress hay, straw, or other crops into square bales. The gearbox is responsible for transferring power from the tractor to the baler's mechanisms.Functions:Piston: T......

Send Inquiry

Product Description

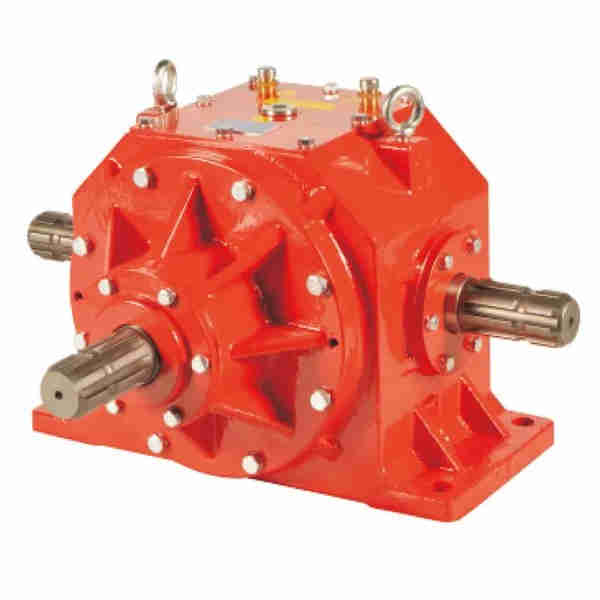

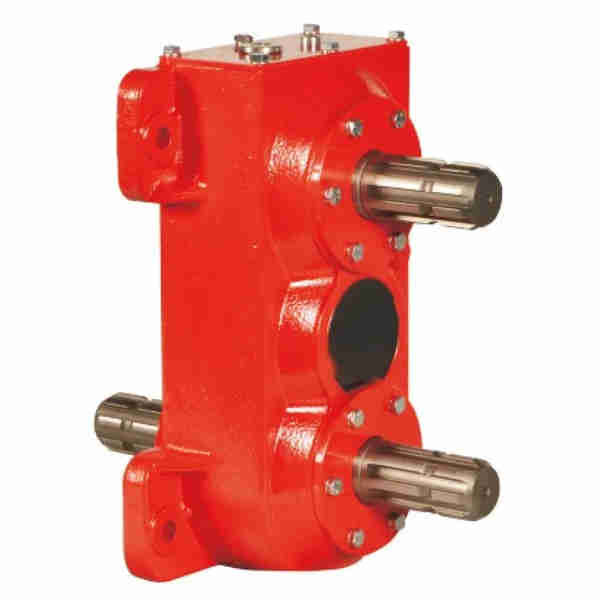

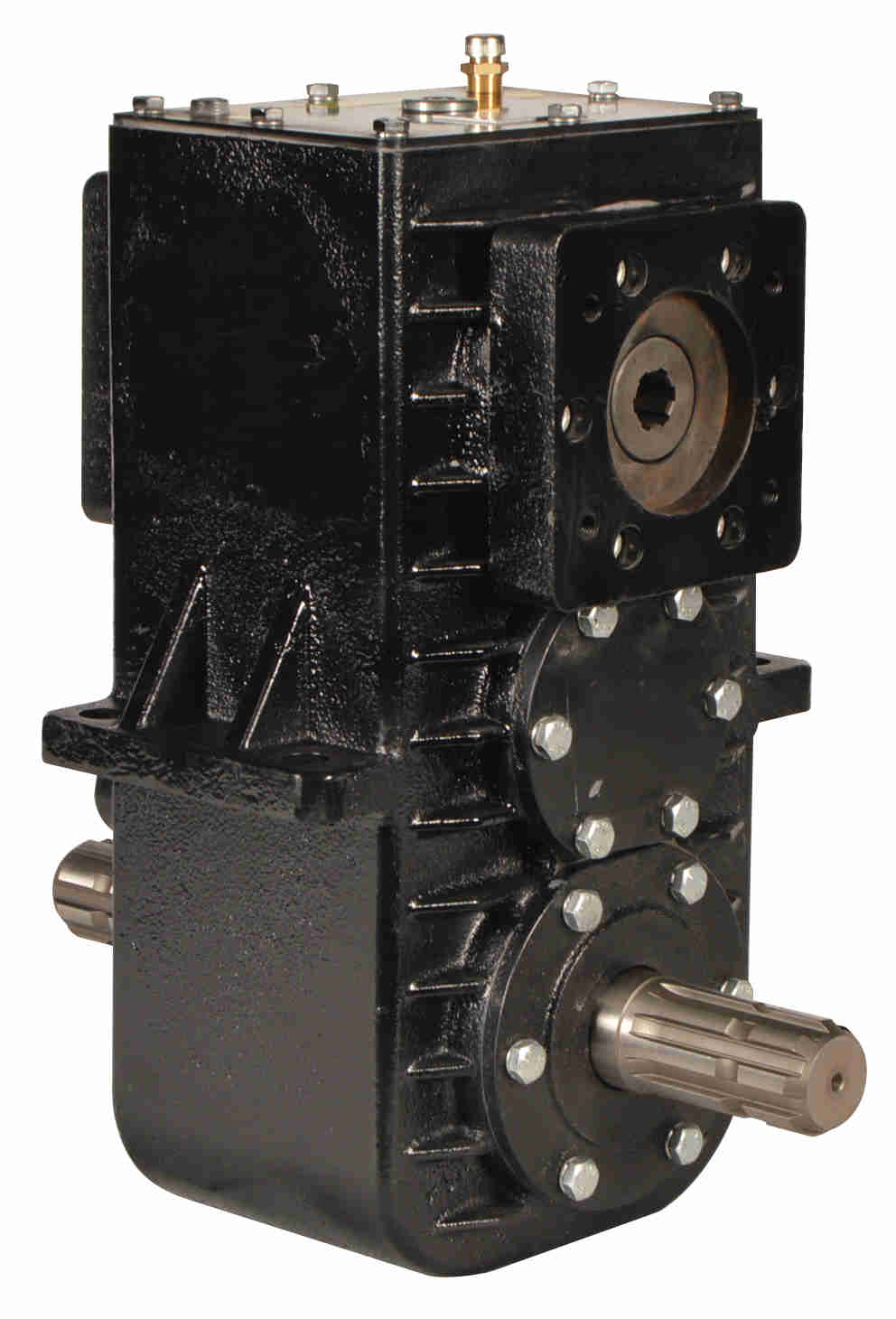

What is a square baler gearbox? A square baler gearbox is a component of a square baler, which is an agricultural machine used to compress hay, straw, or other crops into square bales. The gearbox is responsible for transferring power from the tractor to the baler's mechanisms. Functions: Piston: The piston compresses the crop material into a bale. Knotter: The knotter ties the twine or wire that binds the bale together. Ejector: The ejector pushes the finished bale out of the baler.

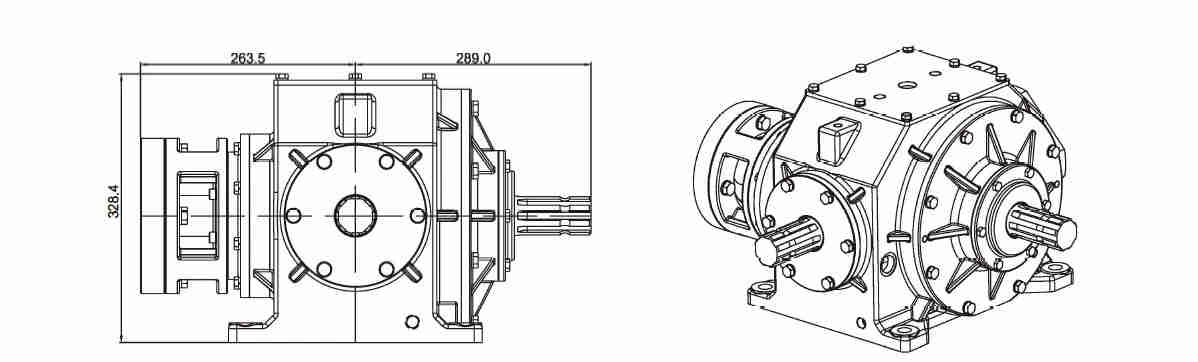

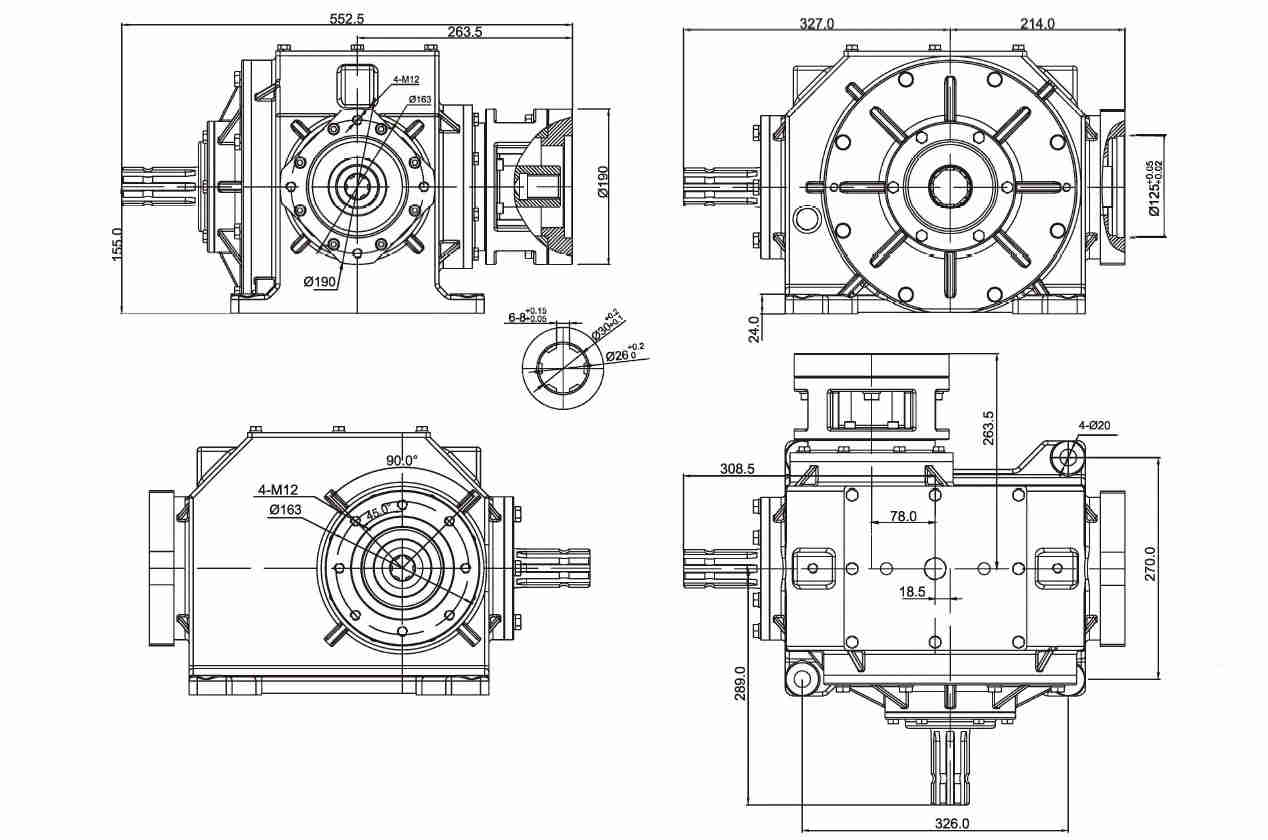

Dimension

Suitable

Rpm input

Rpm output

KW(Nom)

KW(Max)

Toothing

r/min

Left and Light output

1:2.46

Automatic feed baler, etc

540

1328

180

1080

Gleason Helical
Teeth

Follow-up output

1.24:1

1328

1070

130

1100

Remark: If you have any special require feel free let me know, we also accept custom.

For more details, please click here to contact us!

Advantages: 1. Power transmission: The Square Baler Gearbox efficiently transfers power from the tractor to the baler, ensuring smooth and consistent operation throughout the baling process. 2. Speed control: The gearbox allows for adjustable speed control, enabling operators to match the baler's performance with the crop conditions and desired bale density. 3. Durability: Square Baler Gearboxes are designed to withstand the high torque loads and demanding conditions encountered during baling, ensuring long-lasting performance and reliability. 4. Versatility: These gearboxes are compatible with various types and models of square balers, offering compatibility and versatility in the agricultural industry. 5. Maintenance: They are often designed with ease of maintenance in mind, allowing for straightforward inspection, lubrication, and replacement of parts when necessary.

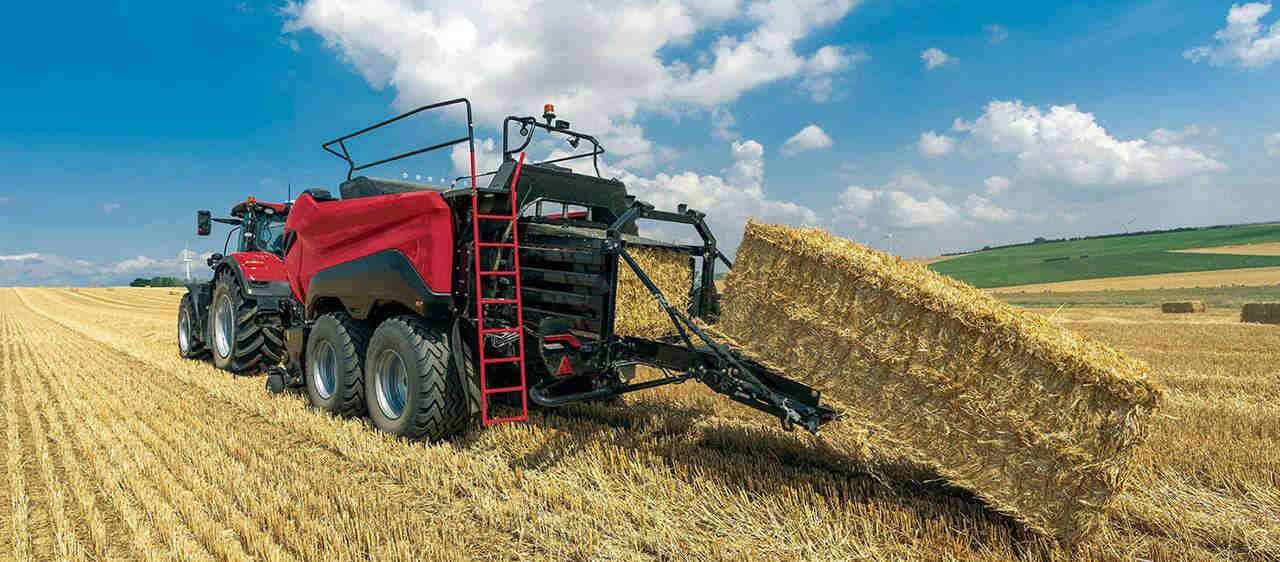

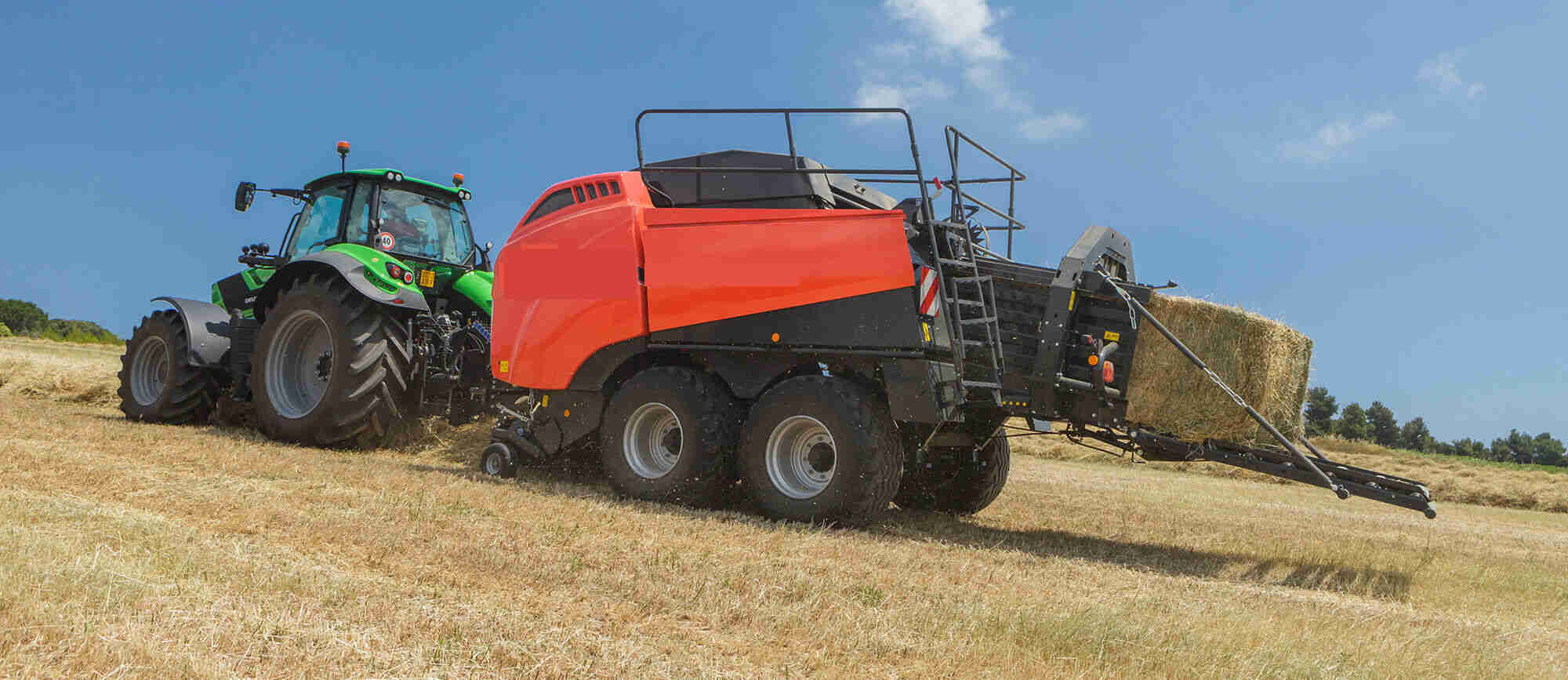

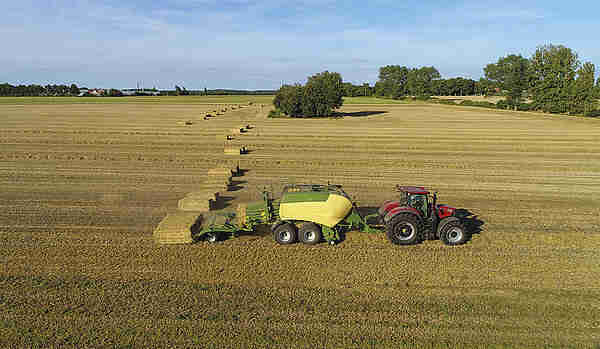

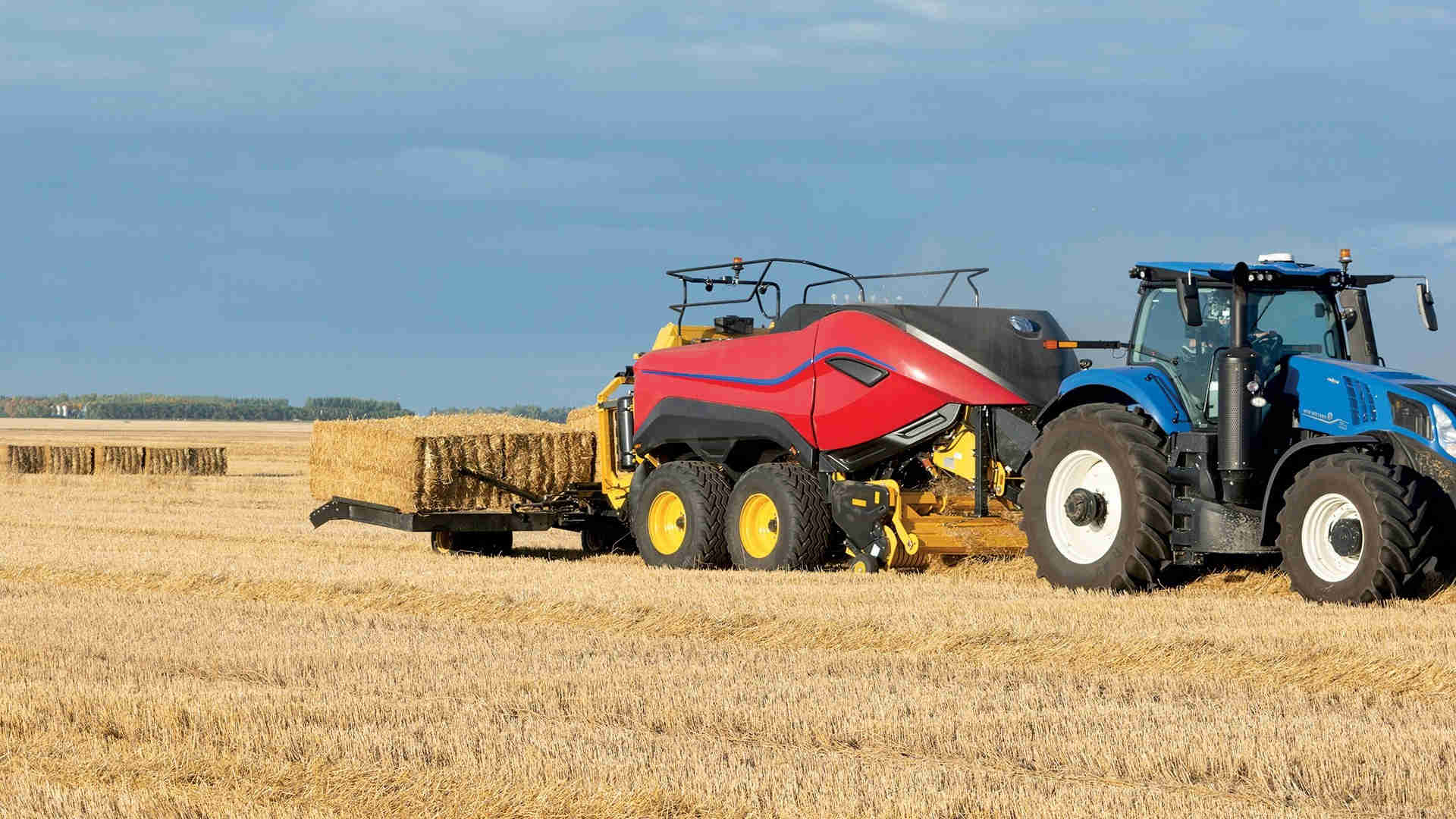

Some common applications of Square Baler Gearboxes include: 1. Hay baling: Square balers equipped with gearboxes are commonly used in hay production to compress cut hay into square bales, which are easier to handle, transport, and store. 2. Straw baling: Square balers with gearboxes are also used in the agricultural industry for baling straw, which is commonly used for animal bedding, mulching, and other applications. 3. Crop baling: Gearboxes are utilized in square balers for baling other crops such as corn stalks, wheat straw, and other similar materials. 4. Agricultural operations: Square balers with gearboxes are employed in various agricultural operations, including small and large-scale farms, ranches, and agricultural cooperatives. The specific application of Square Baler Gearboxes can vary depending on the crop being baled, local agricultural practices, and the size and type of the baler being used.

How does a square baler gearbox work? The square baler gearbox is connected to the tractor's power take-off (PTO) shaft. The PTO shaft turns a series of gears in the gearbox, which in turn transmit power to the baler's mechanisms. The gears in the gearbox are designed to multiply torque and reduce speed, which is necessary to power the baler's high-torque, low-speed mechanisms.

Square Baler Gearboxes and Power Take-Off (PTO) shafts have an important relationship in the operation of square balers. The PTO shaft, which is connected to the tractor's power source, transfers power to the Square Baler Gearbox, enabling the baler to perform its baling functions. The PTO shaft serves as the primary power source for the baler, transmitting rotational power from the tractor's engine to the gearbox. It connects directly to the input shaft of the Square Baler Gearbox, which is responsible for converting the rotational motion into the linear motion required for the baling process. The gearbox plays a crucial role in the power transmission from the PTO shaft to various components of the baler. It provides the necessary speed reduction or increase, torque multiplication, and directional changes to drive the pickup, compression, and tying mechanisms of the baler. The Square Baler Gearbox ensures that the power from the PTO shaft is properly harnessed and optimized for the specific requirements of the baling process. It allows for speed control, torque adjustment, and rotational direction changes, depending on the specific stage of the baling operation. The PTO shaft and Square Baler Gearbox work in tandem to ensure the efficient and reliable operation of the baler. They form a critical connection that allows the baler to transform raw crop material into compact and manageable bales. It is important to ensure that the PTO shaft and Square Baler Gearbox are properly matched in terms of their specifications, including speed, torque, and rotational direction, to ensure optimal performance and prevent damage to the baler or tractor components. Regular maintenance and inspection of both the PTO shaft and gearbox are essential to ensure safe and efficient baling operations.

Raydafon MACHINERY (HANGZHOU) CO.LTD is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Hangzhou R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products, which are highly appreciated by domestic and foreign customers. In recent years, We has been adhering to the concept and spirit of "innovating with determination, advancing with the times, and creating the future intelligently", and is committed to high-end gearbox, gearbox development and manufacturing. Founded in 2017, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries and has been widely praised by customers.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
