Raydafon Group's 26'' Diameter Plow Disc for ATV Disc Harrow excels with durable construction, ideal for farmers and outdoor enthusiasts seeking efficient soil preparation. It enhances productivity, solves tough terrain challenges, and stands out with superior design and reliability, delivering satisfaction in every use.
Hangzhou Ever-power Machinery Co.,Ltd.is a professional manufacturer of plow disc blade .There is an existing advanced production line of forging,casting ,machining ,heat treatment in the company.
Our company has been a reliable and excellent manufacturer of centerless discada bbq disc blade wokss, plough discs , disc harrow , disc plough and disc ridger .We can supply all various discs according to customers' drawing and samples .
Product Description
Disc blade is mainly parts of disc harrow or disc plough and cultivator ; it can broken the hard land, and to mix the soil and fertilization .
Hangzhou Ever-power Disc blade Main feature :
1. Material : 65Mn Spring Steel or boron steel
2. Process : with heat treatment and peen-forming
3. Hardness : 38-46HRC
4. Diameter : from 10'' (254mm) to 46'' (1168mm)
5. Thickness : from 3mm to 12mm

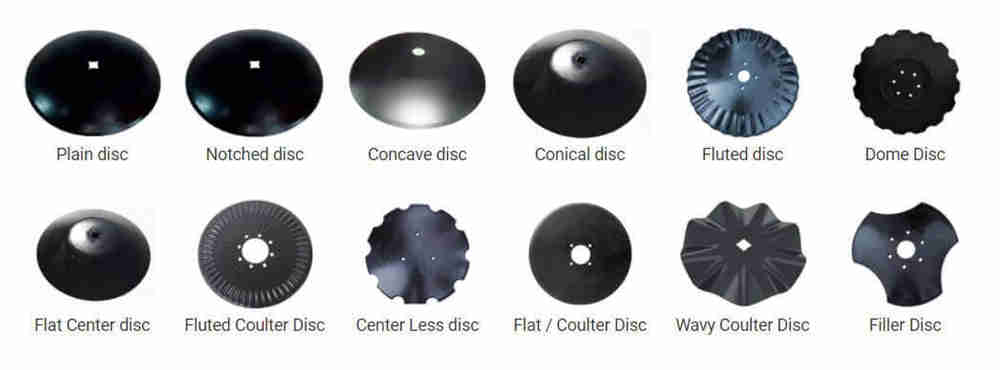

6. Type : plain or notched , flat or concave
Specification
Now i just write some size of our plow disc blade , we also can produce many different size of agricultural machinery parts , we also can produce disc blade according to your drawings or samples .
Diameter
Thickness
Weight
Material/Hardness
16'' (406mm)
3mm
3kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
18''(457mm)
4mm
5.5kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
20''(508mm)
5mm
8.2kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
22''(558mm)
5mm
10kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
24''(610mm)
5mm
11.5kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
26''(660mm)
5mm
14.5kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
26''(660mm)
6mm
17kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
28''(711mm)
8mm
27kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
30''(760mm)
10mm
38kg
65Mn Spring Steel / 38-46HRC
30MnB5 boron steel / 42-56HRC
Product Advantages
Hangzhou Ever-power Disc Blade Advantages is as following :
1. Material : 65Mn Srping steel or Boron Steel .
We adopt large steel mills steel as raw materials to ensure product quality at source.
2. Productive process : Exquisite production technology , Advanced production equipment .
Our discada bbq disc blade wok produce with tempering and quenching , the hardness will be 38-46HRC ( 65Mn Spring Steel ) and 48-55HRC ( Boron Steel ) , the discada bbq disc blade wok surface with steel shot blasting and spraying plastics . So the surface will be very beautiful , also can have the long service time.
3. Fast Delivery Time : Hangzhou Ever-power Machinery have the professional production line , so we can supply you the fast delivery time .
Product Picture

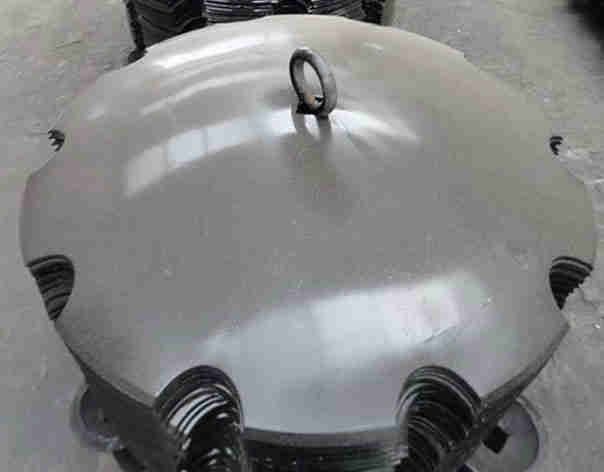

26'' x6mm plow disc blade real picture :
FAQ
-Delivery time:after confirm order,within 30days. if your order Qty. more than 3000pcs, delivery time need to disc cuss. but not more than 60days.
-Payments items: As usual, it is30% depositafter confirm order andbalance 70%after shipment.
-Disc blade material: Boron steeland65Mn steel.
- We are able to following yourdrawingorsampleto machining.
-How can you contact us ?
Hot Tags: 26 inch ATV plow disc, heavy duty ATV disc harrow, custom plow disc manufacturer
