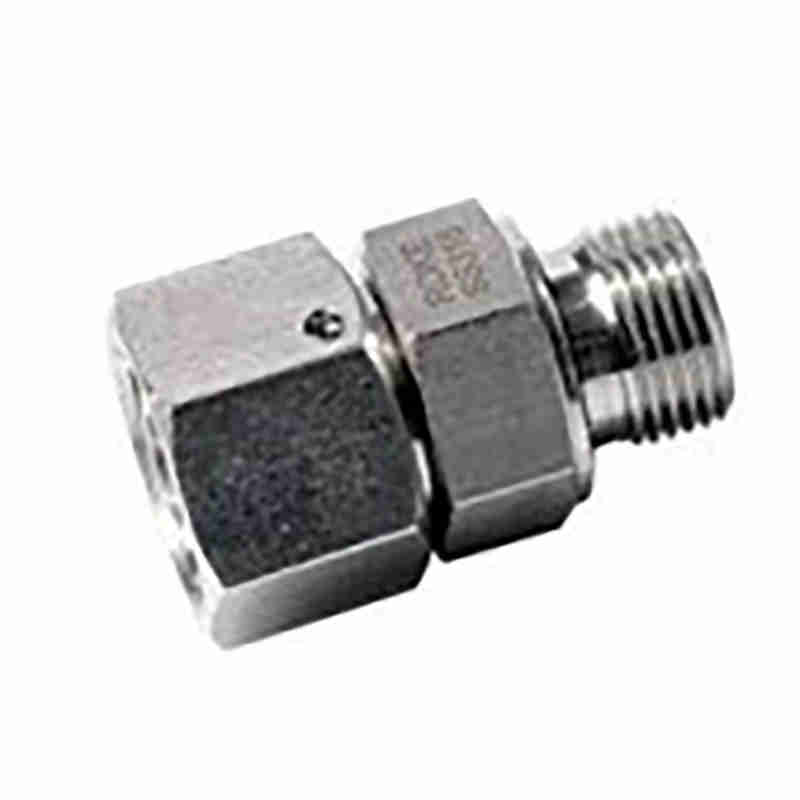

Wholesale Customized Good Quality Hydraulic Cylinder Parts Parker Weld Connector-As Hydraulic Fitting

The Weld Connector-AS hydraulic fitting is a type of hydraulic connector used in hydraulic systems for joining and securinghydraulic pipes or hoses. It is designed specifically for welding onto hydraulic systems, providing a permanent and secureconnection.Weld Connector-AS hydraulic fittings are typ......

Send Inquiry

Product Description

The Weld Connector-AS hydraulic fitting is a type of hydraulic connector used in hydraulic systems for joining and securing
hydraulic pipes or hoses. It is designed specifically for welding onto hydraulic systems, providing a permanent and secure
connection.

Weld Connector-AS hydraulic fittings are typically made of high-quality materials such as stainless steel or carbon steel,
ensuring durability and resistance to corrosion. They are available in various sizes and configurations to accommodate different hydraulic system requirements.

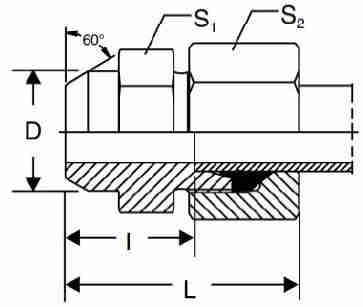

AS Part no.	Series Working Pressure (bar/psi)	Tube o.d.	D	l	L	S1	S2
-AS06L	L light 315 bar 4560 psi	6	10	14	29	12	14
-AS08L		8	12	16	31	14	17
-AS10L		10	14	18	33	17	19
-AS12L		12	16	18	33	19	22
-AS15L		15	19	22	37	22	27
-AS18L		18	22	23.5	40	27	32
-AS22L	160 bar 2320 psi	22	27	28.5	45	32	36
-AS28L		28	32	30.5	47	41	41
-AS35L		35	40	32.5	54	46	50
-AS42L		42	46	35	58	55	60
-AS06S	S heavy 630 bar 9130 psi	6	11	19	34	14	17
-AS08S		8	13	21	36	17	19
-AS10S		10	15	22.5	39	19	22
-AS12S		12	17	24.5	41	22	24
-AS14S		14	19	27	45	24	27
-AS16S	400 bar 5800 psi	16	21	26.5	45	27	30
-AS20S		20	26	29.5	51	32	36
-AS25S		25	31	32	56	41	46
-AS30S		30	36	35.5	62	46	50
-AS38S	315 bar 4560 psi	38	44	38	69	55	60

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

To properly maintain a weld connector-AS hydraulic fitting, consider the following maintenance tips: 1. Regular Inspection: Conduct routine inspections of the fitting to check for signs of damage, wear, or leaks. Look for cracks, corrosion, or any loose connections. Promptly address any issues that are identified. 2. Cleanliness: Keep the fitting and the surrounding area clean from dirt, debris, and contaminants. Use compressed air or lint-free cloths to remove any particles that could affect the fitting's performance. 3. Lubrication: Apply a suitable lubricant to the fitting to minimize friction and enhance sealing effectiveness. Refer to the manufacturer's recommendations for the appropriate lubricant type and frequency of application. 4. Proper Torque: Ensure that the fitting is tightened to the recommended torque specifications. Over-tightening can cause damage, while under-tightening may result in leaks. Use a torque wrench for accurate and consistent tightening. 5. Avoid Overloading: Do not exceed the recommended pressure and load limits for the fitting. Overloading can lead to premature wear, leaks, and potential failures. Adhere to the manufacturer's guidelines for the specific fitting's maximum operating parameters. 6. Seal Replacement: Over time, the seals in the fitting may wear out or deteriorate. Regularly inspect and replace worn or damaged seals to maintain a proper seal and prevent leaks. 7. Manufacturer Guidelines: Follow the maintenance instructions and guidelines provided by the fitting's manufacturer. These guidelines may include specific recommendations or precautions for optimal maintenance. By following these maintenance practices, you can ensure the longevity and reliable performance of your weld connector-AS hydraulic fitting. Regular inspections and adherence to manufacturer guidelines will help identify and address any issues early on, promoting efficient hydraulic system operation.
