Special Design Widely Used 2C Series Cast Iron American Standard QD Sheaves for C Belts

2C Series Cast Iron QD Sheaves for "C" Belts2C series double groove QD bushing pulley is used for C, CX, belt and CC v belt; They range in diameter from 9.40 inches to 30.40 inches. Depending on the pulley size, they use F or SF QD (quick disassembly) bushings, which we also have in stock.......

Send Inquiry

Product Description

2C Series Cast Iron QD Sheaves for "C" Belts

2C series double groove QD bushing pulley is used for C, CX, belt and CC v belt; They range in diameter from 9.40 inches to 30.40 inches. Depending on the pulley size, they use F or SF QD (quick disassembly) bushings, which we also have in stock. Most 2C QD pulleys are made of high-strength Grade 35 cast iron, coated with phosphate and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

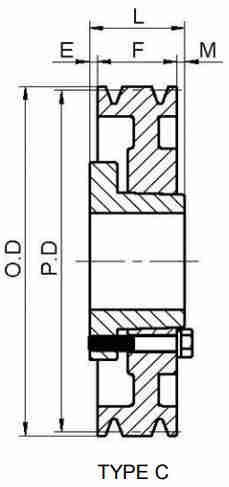

2C QD Sheave Size Chart

For more details, please click here to contact us!

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Sheave Weight (LBS)
2C90SF	SF	D	9.0"	9.40"	3/32"	2-1/4"	2-1/16"	9/32"	20
2C95SF	SF	D	9.5"	9.90"	3/32"	2-1/4"	2-1/16"	9/32"	21
2C100SF	SF	D	10.0"	10.40"	3/32"	2-1/4"	2-1/16"	9/32"	22
2C105SF	SF	D	10.5"	10.90"	3/32"	2-1/4"	2-1/16"	9/32"	23
2C110SF	SF	D	11.0"	11.40"	3/32"	2-1/4"	2-1/16"	9/32"	24
2C120SF	SF	D	12.0"	12.40"	11/32"	2-1/4"	2-1/16"	17/32"	25
2C130SF	SF	D	13.0"	13.40"	11/32"	2-1/4"	2-1/16"	17/32"	28
2C140SF	SF	D	14.0"	14.40"	11/32"	2-1/4"	2-1/16"	17/32"	31
2C160SF	SF	D	16.0"	16.40"	11/32"	2-1/4"	2-1/16"	17/32"	36
2C180SF	SF	D	18.0"	18.40"	11/32"	2-1/4"	2-1/16"	17/32"	39
2C200SF	SF	D	20.0"	20.40"	11/32"	2-1/4"	2-1/16"	17/32"	48
2C240SF	SF	D	24.0"	24.40"	11/32"	2-1/4"	2-1/16"	17/32"	60
2C300F	F	C	30.0"	30.40"	1-7/32"	2-1/4"	3-3/4"	9/32"	85

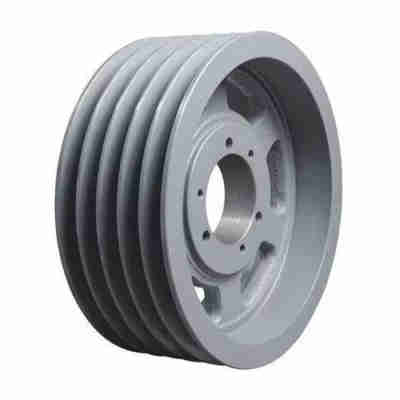

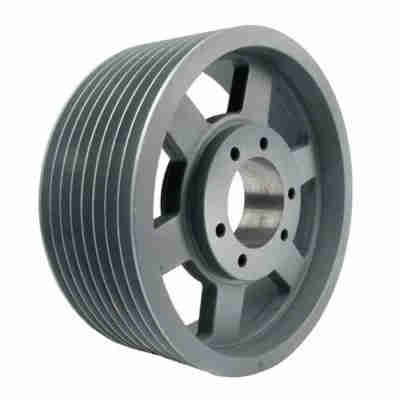

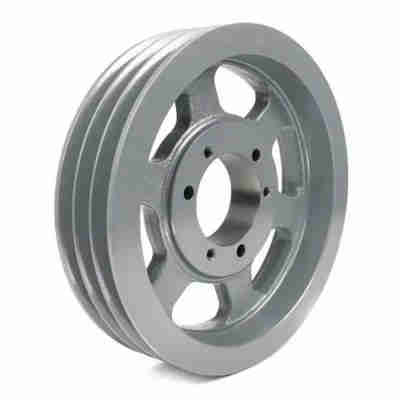

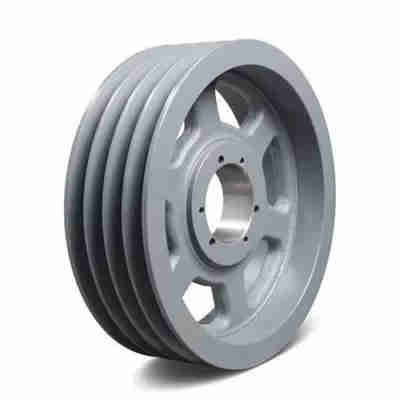

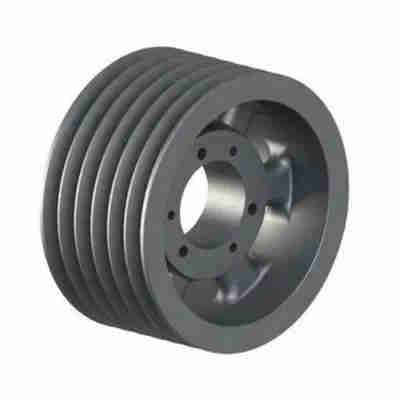

QD pulley The QD pulley is a bushing that helps maintain the v-belt. Its quick removable bushing facilitates installation and removal, minimizes downtime, and protects the drive system to the maximum extent. It has one to twelve slot configurations and is compatible with dynamic and static balancing. QD pulley is a kind of pulley with simple installation and maintenance, and easy replacement bushing. There are several styles and types of QD pulleys that are interchangeable with most other bushing brands. They are highly accurate and durable, and offer a variety of reverse pitch options. They are also made of grey cast iron and are suitable for various classic V-belts. They are also designed with three grooves for easy selection of multiple belts or ribbon belts. QD bushing pulley is applicable to V-belt drive, and there are different types and sizes for selection. They are available in 3/4, 1/2, and 1-1/2 bore sizes. They are available in standard and reverse installation configurations. If you need different hole diameters, you can also ask for a quotation. The QD bushing pulley is designed for easy installation. The quick detachable bushing enables the pulley to be quickly installed and disassembled, minimizing downtime and maintaining the integrity of the drive system. Raydafon has a variety of QD bushing pulleys to choose from. The Product Details page allows you to filter the product by several grooves, outside diameters, and belt types.

Other Related Products

We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
