S Type Steel Agricultural Chain With AttachmentApplicationA spare part of elevator conveyor assembly for combine John Deere.DestinationTransporter roller chain for conveyors and elevators used used for uploading of grain mass to further processing in required combine units. This spare part is used f......

Send Inquiry

Product Description

S Type Steel Agricultural Chain With Attachment

Application A spare part of elevator conveyor assembly for combine John Deere. Destination Transporter roller chain for conveyors and elevators used used for uploading of grain mass to further processing in required combine units. This spare part is used for replacing a worn out or damaged unit during repairs. Properties The conveyor roller chain consists of special links with the pads, intended for fastening the working bodies (scrapers, levels, combs, etc.) that are alternating in the set sequence with links of driving roller chains.

We offer a full and compete line of high-quality roller chain attachments and roller chain attachment assemblies right off the shelf. Our inventory of attachments range in quality, material, and type. We have Economy Plus, General Duty Plus, and Premier Series attachments in stock. As well as stainless steel, nickel-plated, carbon, and dacromet coated attachments all available in ANSI and Metric (ISO & DIN) standard sizes. We also keep pre-assembled chains in-stock for most standard roller chain sizes and configurations, but if we don't have it on the shelf we can build or assemble the attachment chain in the matter of a few days.

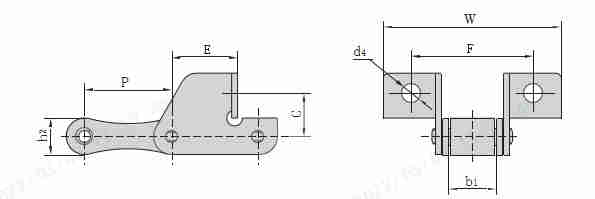

Chain No.	P	d1	b1	C	E	F	W	d4	h2
Chain No.		mm	mm	mm	mm	mm	mm	mm	mm	mm
S52F11SD	38.1	16.00	17.50	21.0	23.0	55	75	8.3	20
S52F3	38.4	15.88	18.50	24.0	37.4	52	73	8.7	17.5
C45F1SD	41.4	15.24	22.23	19.7	41.7	58	90	6.6	17.3
