The products are easily connected with and driven by different types of motors or other kinds of input power. The same type geared motor can be adapted to optioned powers of motors. It's therefore easy to realize different solutions for varied requirements.
2.Ratio
Featured many closely divided ratios and wide range of them. Very big ratios can be obtained through combined units to reach extremely low output speeds.
3.Mounting arrangement
No strict limitation to the mounting arrangement.
4. High strength,compact dimension
Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburising process and precise grounding to sequentially get high capacity of per certain volume.
5.Long service life
under the condition of accurately selecting type size and the normal maintenance and use, main components (except those easily-disabled parts) can last as long as up to more than 25000 hours. Easily disabled parts include lubricating oil,oil seals, and bearings.
6.Low noise
All key components are finished by precisely machining, accurate assembly, and finally tested,and therefore, fairly low noise is reached.
7. High efficiency
The efficiency of gear unit can reach 95%. The efficiency of worm gear can reach 89%
8.Large radial loading ability
9.Axial load ability of up to 5% of radial load.
Site conditions
The geared motors are suitable for the operation sites in the ambient temperatures from -10 degree to 40 degree and altitudes up to 1000m above the sea lever. They can be used both for clockwise running and anti clock wise running. There is no limitation to the specific application field. While applied in other aggressive operating atmosphere or environment conditions, please contact our technology department.

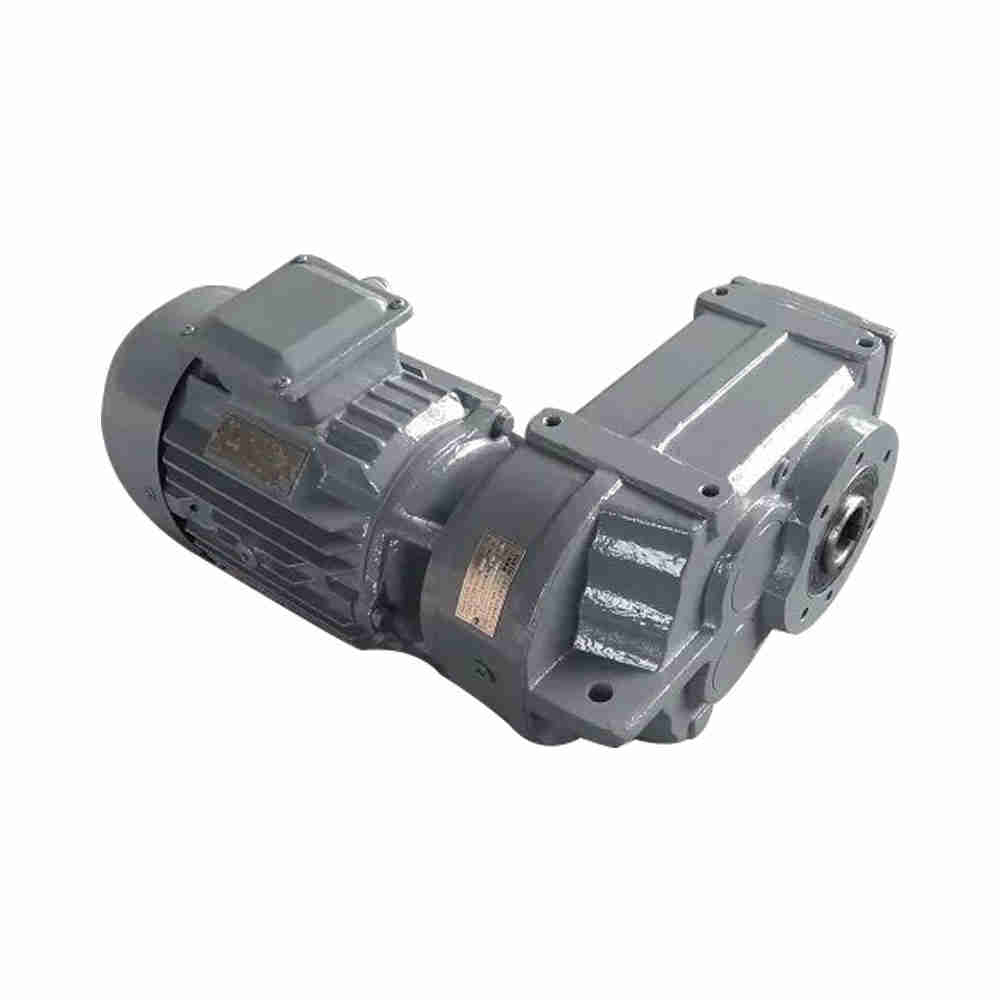

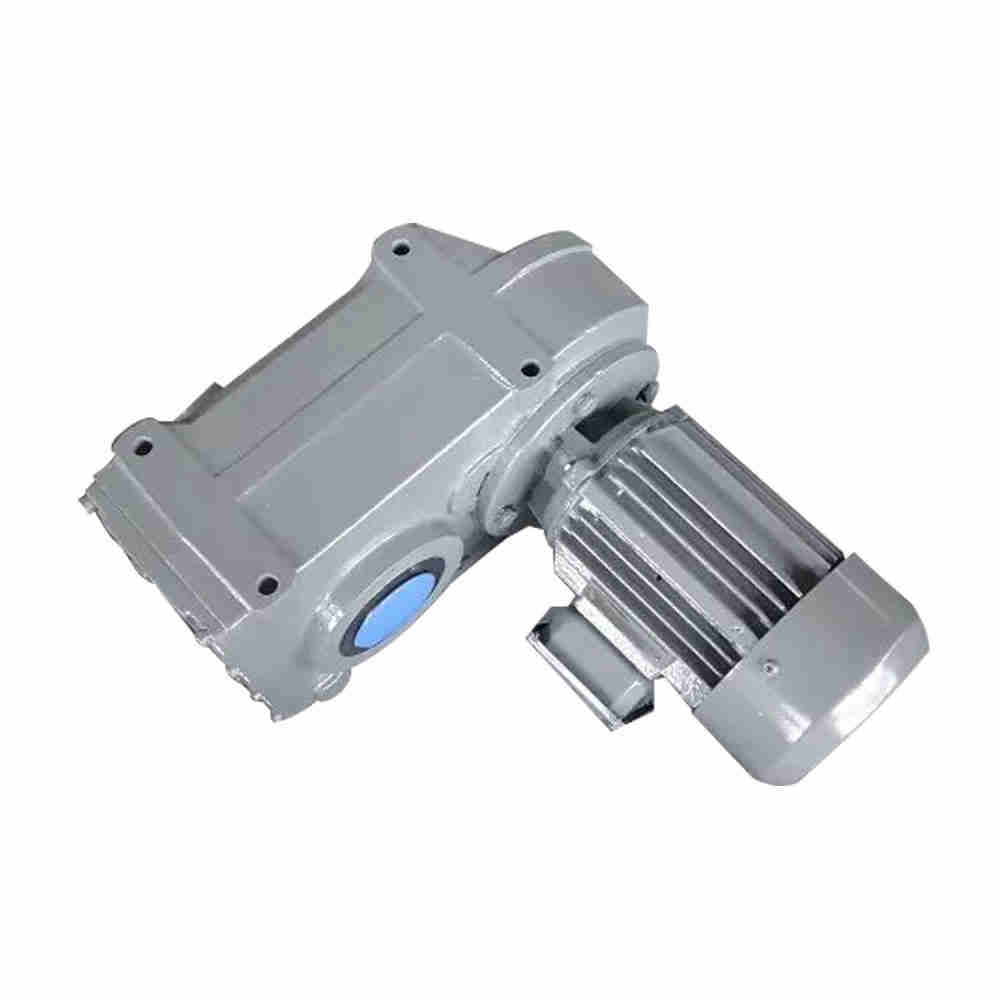

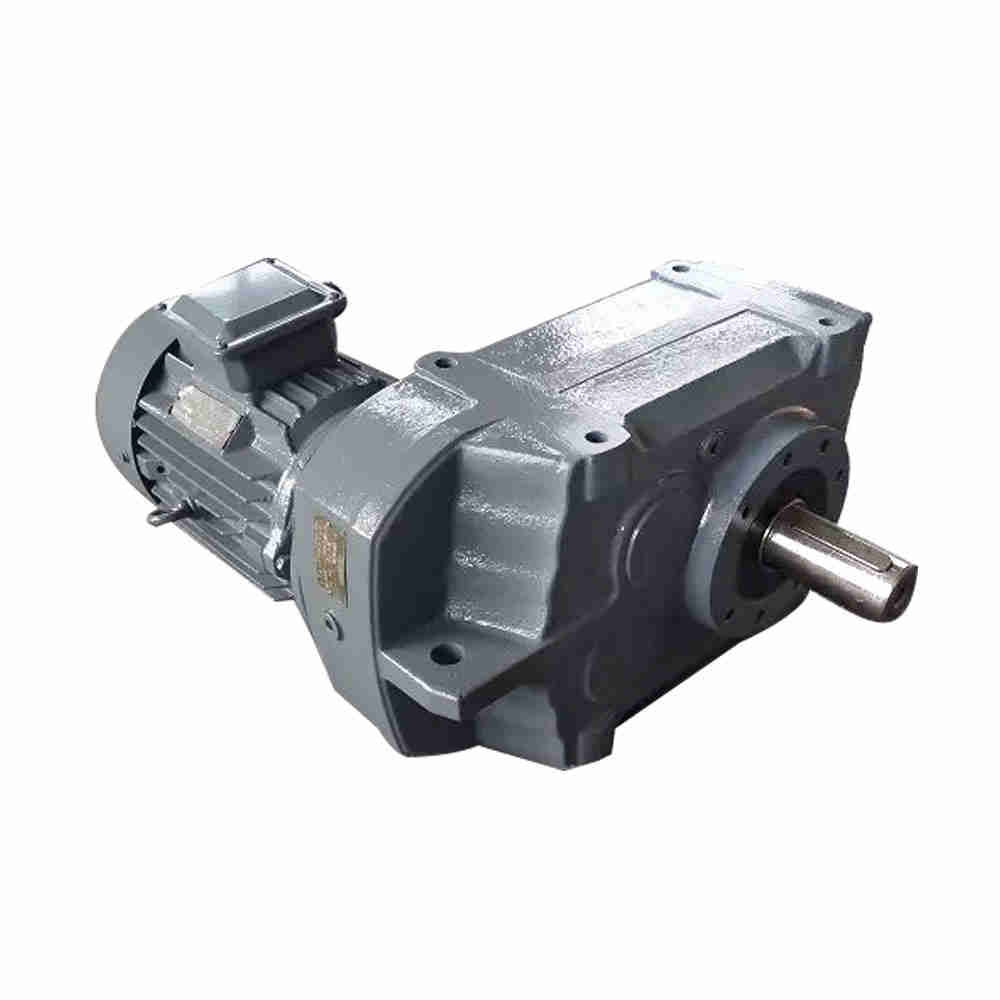

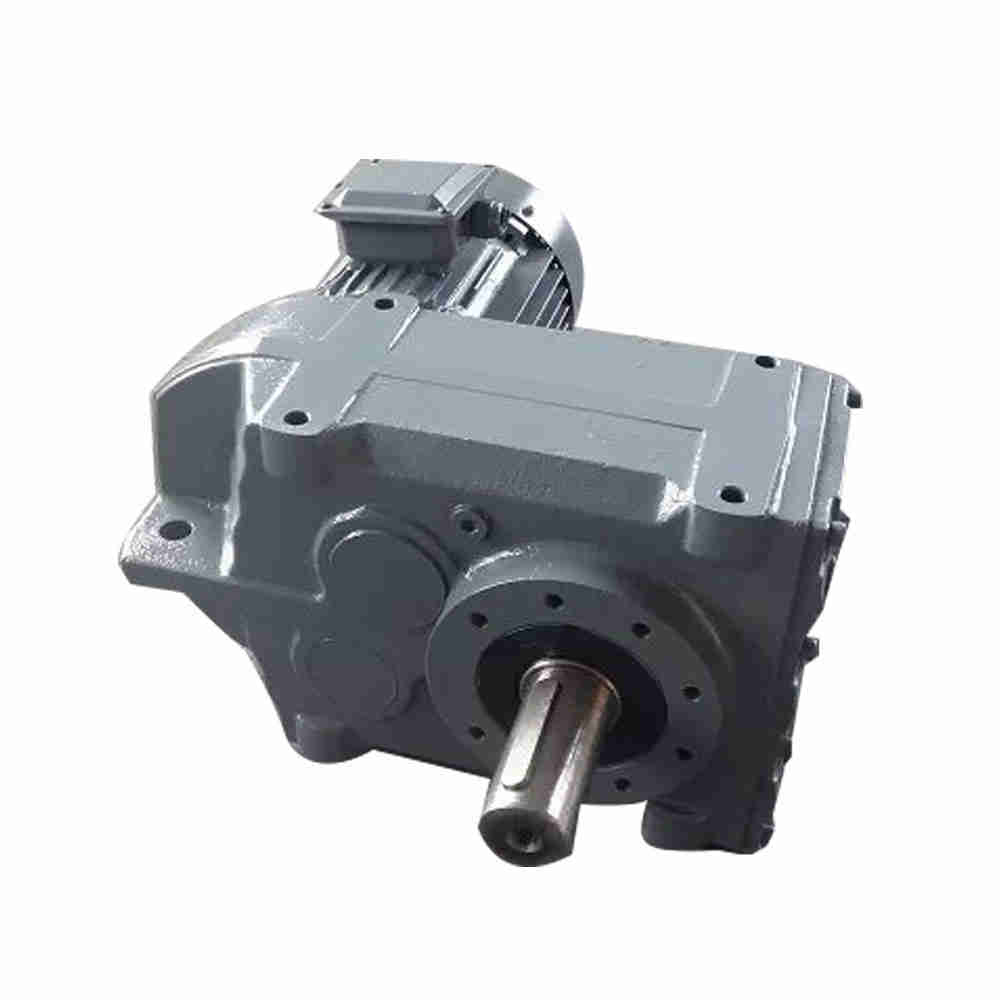

The characteristics ofF parallel shaft geared motor are: The volume is small, the weight is light, the transmission torque is big, the starting steady, the low loss, the way of installment are diverse, input, output nimble and so on. Thus the gear units are quite suitable for the situation which the space is limit. Combination with each kind of reducer the units can satisfied the dissimilar condition.
Output torque: up to 18000Nm
Output speed: 0.11~373r/min
Power of motor: 0.18~200KW
Mounting mode: foot mounting ,flange mounting ,shaft mounting
1 Q:What infomation should I tell you to confirm the reductor?
A: Model/Size B:Motor power C:Output speed D:Service factor.
2 Q: What if I don't know which reductor I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.
4 Q:What is your reductor warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
5 Q:What industries are your reductor being used?
A:Our gearboxes are widely used in the areas of cement, textile, food processing, beverage, chemical industry, escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
6. Q:How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - We arrange to delivery goods to some place in China appointed by buyers.
7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.
We hope you will enjoy cooperating with us.
