5V Series Cast Iron Five-Groove QD Sheaves for "5V" Belts

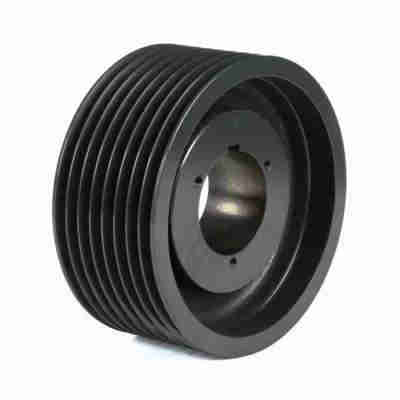

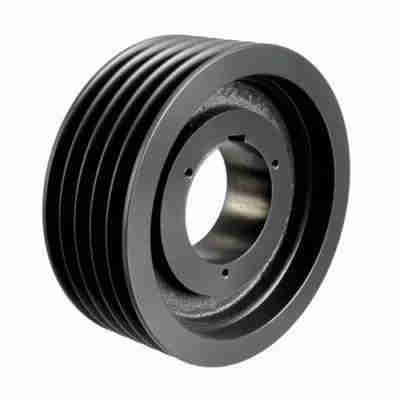

5V series five groove QD (quick removal) bushing pulley is applicable to 5V, 5VX, 5V belt and 5VX belt. They range in diameter from 4.40 "to 50.00". Depending on the pulley size, they use SD, SK, SF, E, F or J QD bushings, which we also have in stock. Most of our five groove 5V QD pulleys are made of high-strength 35 grade cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

Five-Groove 5V QD Sheave Size Chart

For more details, please click here to contact us!

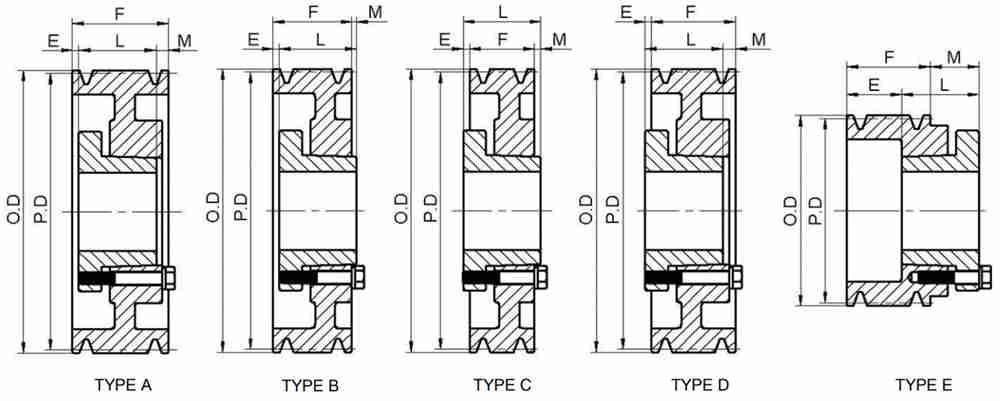

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Weight (LBS)
55V440SD	SD	E	4.30"	4.40"	2 19/32"	3 3/4"	1 13/16"	21/32"	8.9
55V465SD	SD	E	4.55"	4.65"	2 19/32"	3 3/4"	1 13/16"	21/32"	9.2
55V490SD	SD	A	4.80"	4.90"	21/32"	3 3/4"	1 13/16"	1 9/32"	10.1
55V520SD	SD	A	5.10"	5.20"	21/32"	3 3/4"	1 13/16"	1 9/32"	10.8
55V550SD	SD	A	5.40"	5.50"	21/32"	3 3/4"	1 13/16"	1 9/32"	12.0
55V590SK	SK	A	5.80"	5.90"	17/32"	3 3/4"	1 15/16"	1 9/32"	13.2
55V630SK	SK	A	6.20"	6.30"	17/32"	3 3/4"	1 15/16"	1 9/32"	15.9
55V670SF	SF	A	6.60"	6.60"	17/32"	3 3/4"	2 1/16"	1 5/32"	18.6
55V710SF	SF	A	7.00"	7.10"	17/32"	3 3/4"	2 1/16"	1 5/32"	21.7
55V750SF	SF	A	7.40"	7.50"	17/32"	3 3/4"	2 1/16"	1 5/32"	22.8
55V800E	E	A	7.90"	8.00"	19/32"	3 3/4"	2 3/4"	13/32"	23.7
55V850E	E	A	8.40"	8.50"	19/32"	3 3/4"	2 3/4"	13/32"	24.8
55V900E	E	A	8.90"	9.00"	19/32"	3 3/4"	2 3/4"	13/32"	26.3
55V925E	E	A	9.15"	9.25"	19/32"	3 3/4"	2 3/4"	13/32"	28.2
55V975E	E	A	9.65"	9.75"	19/32"	3 3/4"	2 3/4"	13/32"	32.0
55V1030E	E	A	10.20"	10.30"	19/32"	3 3/4"	2 3/4"	13/32"	33.0
55V1090E	E	A	10.80"	10.90"	19/32"	3 3/4"	2 3/4"	13/32"	35.0
55V1130E	E	A	11.20"	11.30"	19/32"	3 3/4"	2 3/4"	13/32"	36.5
55V1180E	E	A	11.70"	11.80"	19/32"	3 3/4"	2 3/4"	13/32"	38.0
55V1250E	E	A	12.40"	12.50"	19/32"	3 3/4"	2 3/4"	13/32"	40.8
55V1320E	E	A	13.10"	13.20"	19/32"	3 3/4"	2 3/4"	13/32"	42.3
55V1400E	E	A	13.90"	14.00"	19/32"	3 3/4"	2 3/4"	13/32"	44.6
55V1500E	E	A	14.90"	15.00"	19/32"	3 3/4"	2 3/4"	13/32"	48.2
55V1600E	E	A	15.90"	16.00"	19/32"	3 3/4"	2 3/4"	13/32"	51.2
55V1870F	F	D	18.60"	18.70"	3/32"	3 3/4"	3 3/4"	3/32"	70.2
55V2120F	F	D	21.10"	21.20"	1/32"	3 3/4"	3 3/4"	1/32"	89.0
55V2360F	F	D	23.50"	23.60"	1/32"	3 3/4"	3 3/4"	1/32"	105.0
55V2800F	F	D	27.90"	28.00"	1/32"	3 3/4"	3 3/4"	1/32"	123.0
55V3150J	J	C	31.40"	31.50"	7/16"	3 3/4"	4 5/8"	7/16"	151.0
55V3750J	J	C	37.40"	37.50"	7/16"	3 3/4"	4 5/8"	7/16"	190.0
55V5000J	J	C	49.90"	50.00"	1/16"	3 3/4"	4 5/8"	7/16"	278.0

Relevant supporting 5V, 5VX series V-belts (1) 5V series V-belt Classic 5V series V-belts have a top width of 0.63 ", a thickness of 0.53", and an angle of 38 °. In addition, the 5V V-belt is one of the oldest V-belts in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 5V series v-belts we provide are manufactured according to ISO 9001 specifications. They are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability. The 5V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications.

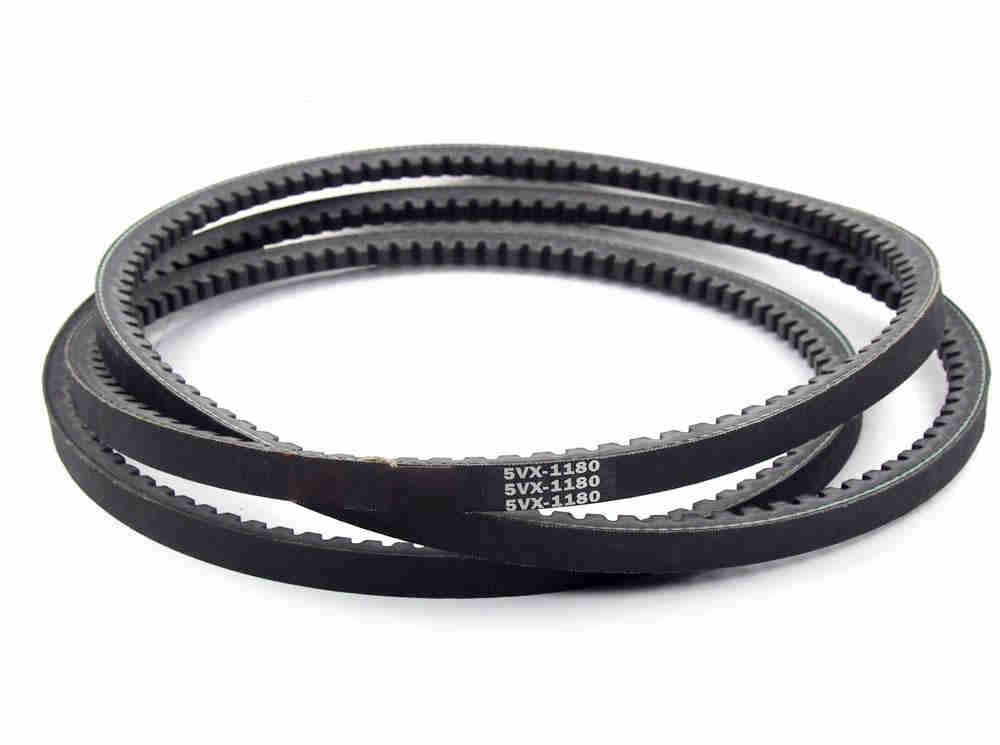

(2) 5VX toothed V-belt The top width of the 5VX toothed v-belt is 0.53 "and the thickness is 0.53". Our grooved 5VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 5VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys. Please contact us to get the quotation of 5VX toothed v-belt or pulley, and we will be happy to help you.

(3) 5V series ribbon V-belt The 5V series V-belts are part of the "classic" series of V-belts because they are one of the oldest and most common belts. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each 5V series v-belt (belt/rib) is 0.63 ". (4) 5VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 5VX toothed v-belt runs more smoothly and more relaxed, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs. We can also stock pulleys/pulleys for 5VX belt.

QD Bushings | Quick Disconnect Bushings QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings (including stainless steel bushings) upon request. QD casing is found in some of the strongest applications in the world; Please contact our customer service team immediately for a quote or other information on the quality QD casing.

American Standard Pulley Features Pulleys are hub type parts and are usually relatively large in size. The manufacturing process is usually based on casting and forging. Generally, the casting method is designed for larger sizes, and the material is usually cast iron (good casting properties). Cast steel is seldom used. Generally, smaller dimensions can be used for steel forgings. American standard pulleys have quick release and easy to install pulley tapered locking sleeves (QD tapered sleeves) for easy installation and removal. The shaft sleeve allows to install the same mating parts on shafts with different diameters, and use the same shaft sleeve to install the structures of different pulleys on the same column. They are separated and tapered by flanges to provide an effective self-locking principle of sleeve shrink fit. All dimensions have screws installed on the key to help keep the bushing on the shaft until the screws are tightened.

Advantages and disadvantages of pulley drive

The advantages of pulley transmission are: pulley transmission can reduce the impact of load; The belt pulley drives stably, with low noise and vibration; The belt pulley has simple transmission structure and convenient adjustment; Pulley drive is not as strict as meshing drive in the manufacture and installation of v-pulley; Pulley drive, with overload protection function; The adjustment range of the center distance between two shafts driven by pulley is wide. The disadvantages of the belt drive are: the sliding and slipping of the belt pulley drive are adjustable, the transmission efficiency is low, and the correct transmission ratio cannot be maintained; When the belt pulley transmission transmits the same circumferential force, the tooth profile size and the pressure on the shaft are more significant than the meshing transmission; The pulley drive belt has a shorter service life.

Common application of QD bushing pulley *Machine tool *Crusher, pulverizer, crusher, classifier, vibrating screen *Material conveying system *Fans, blowers and exhausters *Pumps and compressors *Woodworking saw, milling machine, planer, lathe

Technological Processing

Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
