High Precision Line Air Filters for Rotary Screw Type Air Compressor

Raydafon Group's High Precision Line Air Filters for Rotary Screw Type Air Compressor deliver superior air purification, extending equipment life and reducing maintenance. Made with advanced materials, they ensure clean, efficient airflow, ideal for industrial users seeking reliability. Experience peace of mind and enhanced performance with our unique design, tailored for demanding environments.

Send Inquiry

Product Description

Compressed Air Filter

Our precise compressed air filter which made by a world-famous brand filter could be classified into four grades as C, T, A, and H according to filtering accuracy. Through the way of filtering, intercepting, inertia, diffusion, gravity, and other effects, the impurities such as moisture, dust, oil mist contained in the compressed air are removed effectively after through the precise filter. So that the compressed air is clean and dry now, it’s helpful that the pneumatic equipment improves the reliability.
* C level Filtration precision
Dust content: ≤ 3μm, Oil content: ≤ 5ppm
* T level Filtration precision
Dust content: ≤ 1μm, Oil content: ≤ 1ppm
* A level Filtration precision
Dust content: ≤ 0.01μm, Oil content: ≤ 0.01ppm
* H level Filtration precision
Dust content: ≤ 0.01μm, Oil content: ≤ 0.003ppm

The Main Components Of The Compressed Air Filter

How Does Compressed Air Filters Works?

The unfiltered compressed air may contain moisture, dust, oil, rust, and other contaminants that are dangerous for end-product.
Therefore, it requires filtration. The filtration process involves numerous stages that require multiple types of air-line filters
depending on pneumatics application.
Typically, the compressed air first passes through a tube-shaped mesh filter, which creates a coalescence effect, causing bigger
particles to adsorb on the filter and the water to condense into larger droplets, which then travels to the separation chamber.
Consequently, the compressed air slows down. This allows the particulates to condense on a pad with honeycomb-like qualities,
facilitating the movement of droplets to the drain. Most of the oil, large particles, and water droplets are filtered from the
compressed gas as the droplets are discharged through the drain valve.

Series	Air Pressure	Air Capacity
High Pressure Series	13~40 bar	4.5~20.0 m3/min
Regular Series	7~10 bar	1.0~40.0 m3/min
Low Pressure Series	2~5 bar	3.0~60.0 m3/min
Two-stage Energy-saving Series	8~10 bar	20.0~60.0 m3/min

7~10 bar Series

2~5 bar Series

Two-stage Energy-saving Series

Diesel&Electric Portable Series

12~16 bar 4-in-1 Series

1 Phase Small Screw Series

16~40 bar Oil-free Screw Type

7~10 bar Oil-free Screw Type

2~5 bar Oil-free Screw Type

2-stage Oil-free Screw Type

8~12 bar Oil-free Scroll Type

8~12 bar Oil-free Scroll Air-end

View More

What we can supply:

* Oil-injected Screw Air Compressor (2~16 bar)
* All-in-one Screw Air Compressor with Tank, Dryer, and Filters (7~16 bar)
* Single-phase Small Screw Air Compressor for Home use (8~10 bar)

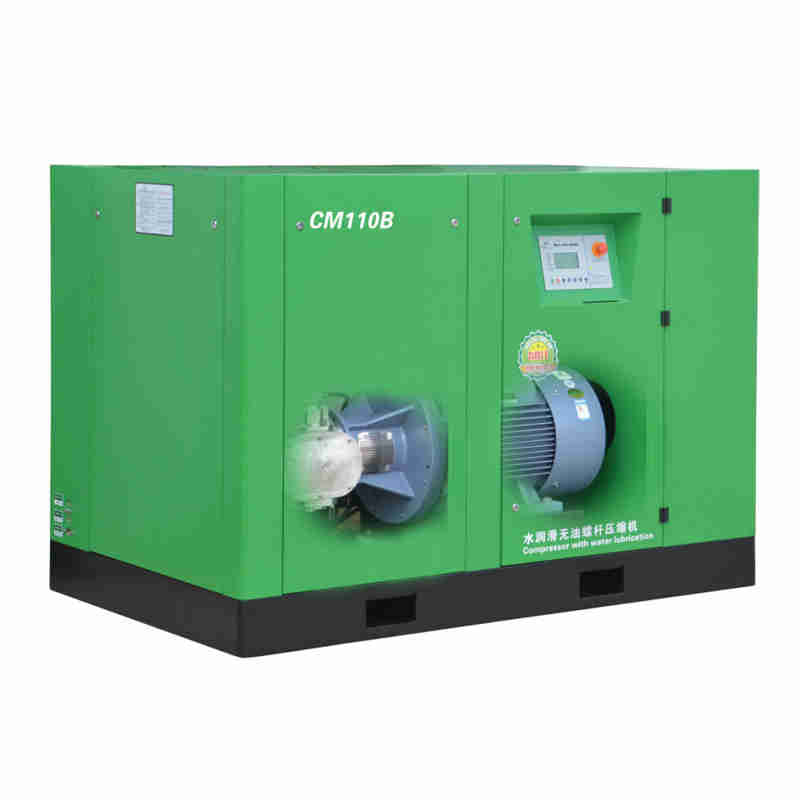

* Water-injected Oil-free Screw Air Compressor (2~40 bar)
* Oil-free Scroll Air Compressor (8~12 bar)
* Diesel&Electric Engine Portable Screw Air Compressor (8~30 bar)
* Air Dryer, Air tank, Filters, and other Spare parts
